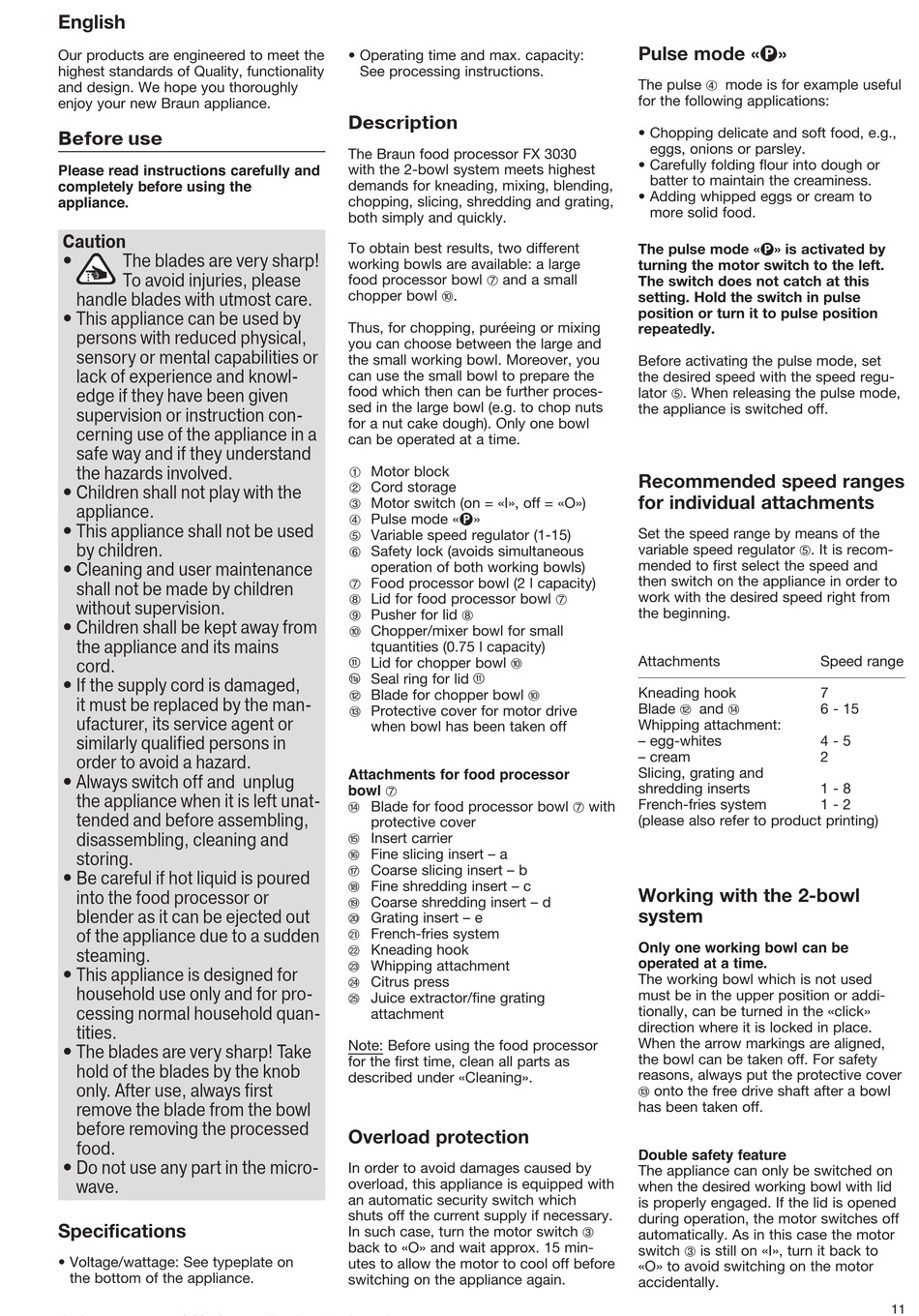

English
Our products are engineered to meet the
highest standards of Quality, functionality
and design. We hope you thoroughly
enjoy your new Braun appliance.
Before use
Please read instructions carefully and
completely before using the
appliance.
Caution
• The blades are very sharp!
To avoid injuries, please
handle blades with utmost care.
• This appliance can be used by
persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowl-
edge if they have been given
supervision or instruction con-
cerning use of the appliance in a
safe way and if they understand
the hazards involved.
• Children shall not play with the
appliance.
• This appliance shall not be used
by children.
• Cleaning and user maintenance
shall not be made by children
without supervision.
• Children shall be kept away from
the appliance and its mains
cord.
• If the supply cord is damaged,
it must be replaced by the man-
ufacturer, its service agent or
similarly qualified persons in
order to avoid a hazard.
• Always switch off and unplug
the appliance when it is left unat-
tended and before assembling,
disassembling, cleaning and
storing.
• Be careful if hot liquid is poured
into the food processor or
blender as it can be ejected out
of the appliance due to a sudden
steaming.
• This appliance is designed for
household use only and for pro-
cessing normal household quan-
tities.
• The blades are very sharp! Take
hold of the blades by the knob
only. After use, always first
remove the blade from the bowl
before removing the processed
food.
• Do not use any part in the micro-
wave.

Specifications

• Voltage/wattage: See typeplate on
the bottom of the appliance.
• Operating time and max. capacity:
See processing instructions.
Description
The Braun food processor FX 3030
with the 2-bowl system meets highest
demands for kneading, mixing, blending,
chopping, slicing, shredding and grating,
both simply and quickly.
To obtain best results, two different
working bowls are available: a large
food processor bowl 7 and a small
chopper bowl j.
Thus, for chopping, puréeing or mixing
you can choose between the large and
the small working bowl. Moreover, you
can use the small bowl to prepare the
food which then can be further pro ces-
sed in the large bowl (e.g. to chop nuts
for a nut cake dough). Only one bowl
can be operated at a time.
1 Motor block
2 Cord storage
3 Motor switch (on = «I», off = «O»)
4 Pulse mode « »
5 Variable speed regulator (1-15)
6 Safety lock (avoids simultaneous
operation of both working bowls)
7 Food processor bowl (2 l capacity)
8 Lid for food processor bowl 7
9 Pusher for lid 8
j Chopper/mixer bowl for small
tquanti ties (0.75 l capacity)
q Lid for chopper bowl j
Seal ring for lid q
ß
11a
l Blade for chopper bowl j
m Protective cover for motor drive
when bowl has been taken off
Attachments for food processor
bowl 7
n Blade for food processor bowl 7 with
protective cover
o Insert carrier
p Fine slicing insert – a
q Coarse slicing insert – b
r Fine shredding insert – c
s Coarse shredding insert – d
t Grating insert – e
u French-fries system
v Kneading hook
w Whipping attachment
x Citrus press
y Juice extractor/fine grating
attachment
Note: Before using the food processor
for the first time, clean all parts as
described under «Cleaning».

Overload protection

In order to avoid damages caused by
overload, this appliance is equipped with
an automatic security switch which
shuts off the current supply if necessary.
In such case, turn the motor switch 3
back to «O» and wait approx. 15 min-
utes to allow the motor to cool off before
switching on the appliance again.
Pulse mode « »
The pulse 4 mode is for example useful
for the following applications:
• Chopping delicate and soft food, e.g.,
eggs, onions or parsley.
• Carefully folding flour into dough or
batter to maintain the creaminess.
• Adding whipped eggs or cream to
more solid food.
The pulse mode « » is activated by
turning the motor switch to the left.
The switch does not catch at this
setting. Hold the switch in pulse
position or turn it to pulse position
repeatedly.
Before activating the pulse mode, set
the desired speed with the speed regu-
lator 5. When releasing the pulse mode,
the appliance is switched off.
Recommended speed ranges
for individual attach ments
Set the speed range by means of the
variable speed regulator 5. It is recom-
mended to first select the speed and
then switch on the appliance in order to
work with the desired speed right from
the beginning.
Attachments
Kneading hook
Blade l and n
Whipping attachment:
– egg-whites
– cream
Slicing, grating and
shredding inserts
French-fries system
(please also refer to product printing)
Working with the 2-bowl
system
Only one working bowl can be
operated at a time.
The working bowl which is not used
must be in the upper position or addi-
tionally, can be turned in the «click»
direction where it is locked in place.
When the arrow markings are aligned,
the bowl can be taken off. For safety
reasons, always put the protective cover
m onto the free drive shaft after a bowl
has been taken off.
Double safety feature
The appliance can only be switched on
when the desired working bowl with lid
is properly engaged. If the lid is opened
during operation, the motor switches off
automatically. As in this case the motor
switch 3 is still on «I», turn it back to
«O» to avoid switching on the motor
accidentally.
Speed range
7
6 - 15
4 - 5
2
1 - 8
1 - 2
