Installation instructions
Installation, electrical connection and the first commissioning is permitted
to be performed by a worker with relevant qualifications (according to
ordinance no. 50/78 Coll.) The panels are intended for mounting on a
wall or ceiling. The producer must be consulted before any other form
of installation is attempted.
Installation on the ceiling

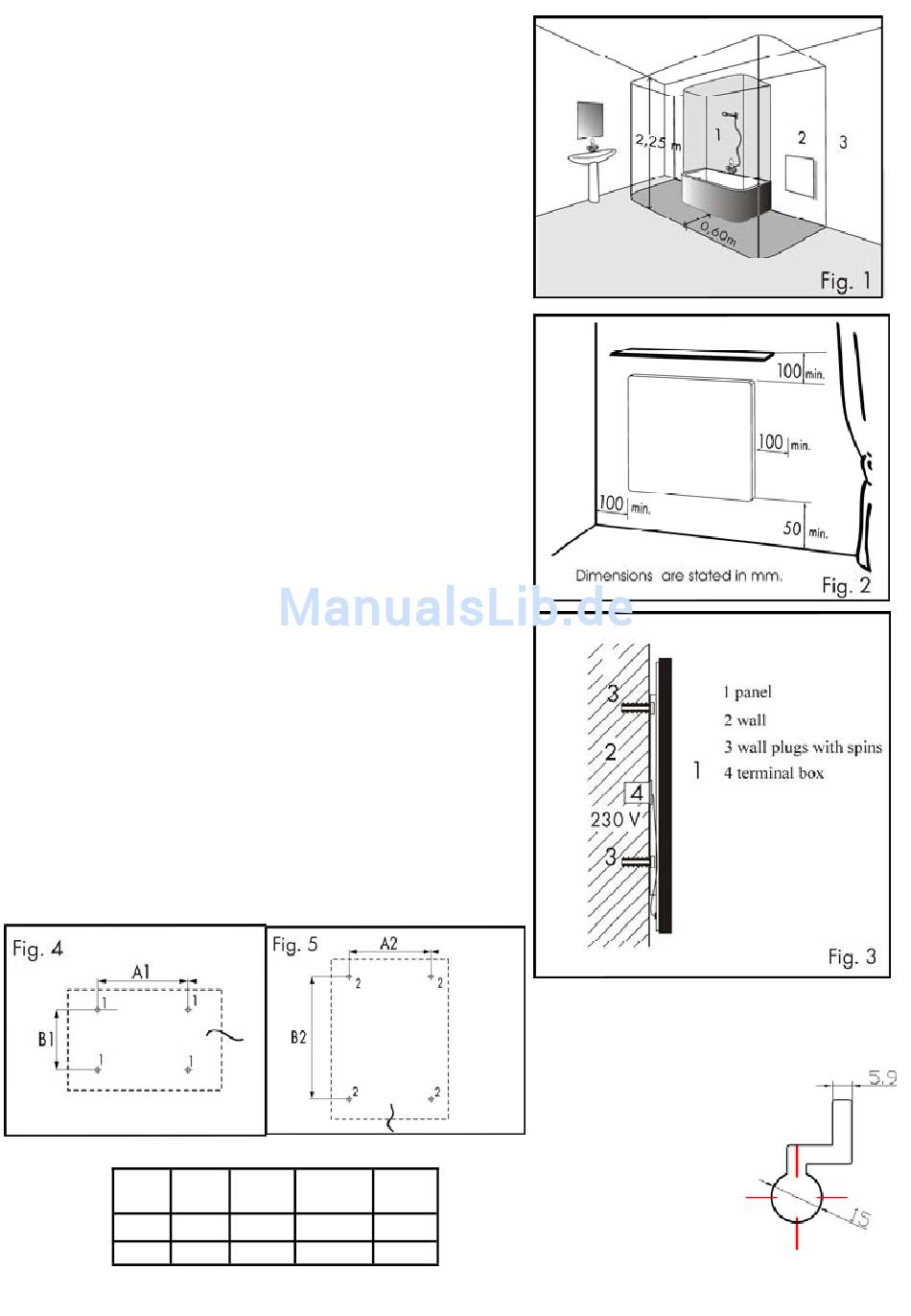

Drill the openings for mounting according to Fig. 4 or Fig. 5. The
package contains four 6 x 70mm screws for attachment. Always hang
the panel by all four mounting slots. Recommended type of wall an-
chors – Fischer Ux 10 (not included in the package).
Dimensions A and B are the spacing between the drilled openings.

Installation on the wall

The panel can be installed horizontally or vertically. Drill the openings
for mounting according to Fig. 4 (horizontal installation) or Fig. 5
(vertical installation). The package contains four 6 x 70mm screws for
attachment. Always hang the panel by all four mounting slots. Recom-
mended type of wall anchors – Fischer Ux 10 (not included in the
package).
Dimensions A and B are the spacing between the drilled openings.
Clearance distances
The distance between the bottom edge of the appliance and the floor
mustn't be less than 50 mm; 150 mm is recommended. The clearance
distance on the side (e.g. from furniture) must be at least 100 mm,
and 100 mm is the minimum in the upward direction (see Fig. 2).
In bathrooms, the panel must be installed in accordance with the ČSN
33 2000- 7- 701 standard and is permitted to be located in accordance
with Fig. 1.
The panel is a class II appliance, with IP 44 coverage. The panel must
not be placed directly under an electric socket.
W
(mm)
300
600
5
A1 B1 A2
(mm) (mm)
390 303 308
390 303 308
B2
(mm)
296
296
Detail of a panel
mounting slot
