Operating instructions
D
< 3 m
< 3 m

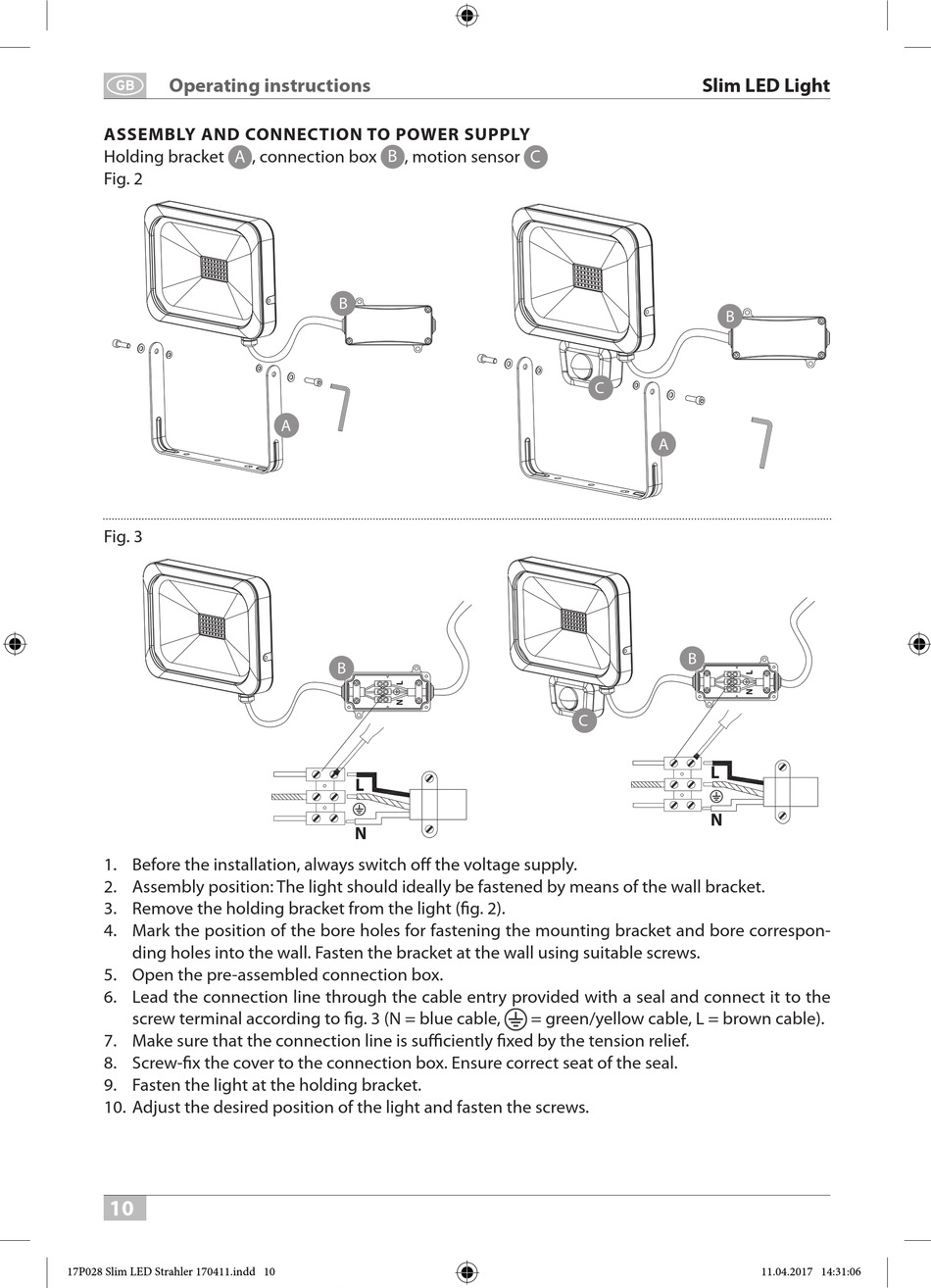

ASSEMBLY AND CONNECTION TO POWER SUPPLY
Holding bracket A
Fig. 2
Fig. 3
1. Before the installation, always switch off the voltage supply.
2. Assembly position: The light should ideally be fastened by means of the wall bracket.
3. Remove the holding bracket from the light (fig. 2).
4. Mark the position of the bore holes for fastening the mounting bracket and bore correspon-
ding holes into the wall. Fasten the bracket at the wall using suitable screws.
5. Open the pre-assembled connection box.
6. Lead the connection line through the cable entry provided with a seal and connect it to the
screw terminal according to fig. 3 (N = blue cable,
7. Make sure that the connection line is sufficiently fixed by the tension relief.
8. Screw-fix the cover to the connection box. Ensure correct seat of the seal.
9. Fasten the light at the holding bracket.
10. Adjust the desired position of the light and fasten the screws.
10 ± 5 sec. - 5 ± 1 min.
10 ± 5 sec. - 5 ± 1 min.
10
17P028 Slim LED Strahler 170411.indd 10
90°
90°
100°
100°
B
, connection box , motion sensor
B
B
A
A
B B
L
L
N
N
180°
180°
0 - 2000 LUX
0 - 2000 LUX
Slim LED Light
C
C
C
A
A
B
B
C
C
= green/yellow cable, L = brown cable).
B B
L
L
N N
