OPERATING INSTRUCTIONS
CONFERENCE – THE NAME IS PROGRAMME
Dear customer,
thank you for buying our CONFERENCE-built in solution for office- and conference workplaces.
CONFERENCE stands fort he synthesis of modern communication technology and up-to-date, state of the art office furniture.
This built-in solution is available as a built-in frame with exchangeable power strip, which makes the simple exchange for you by additionally
CONFERENCE-power strips. This singular change principle of the power strip makes for you possible to use your investment for a long time.
We would like to present you herewith the simple assembly steps in the following.
Your Bachmann GmbH & CO. Kg

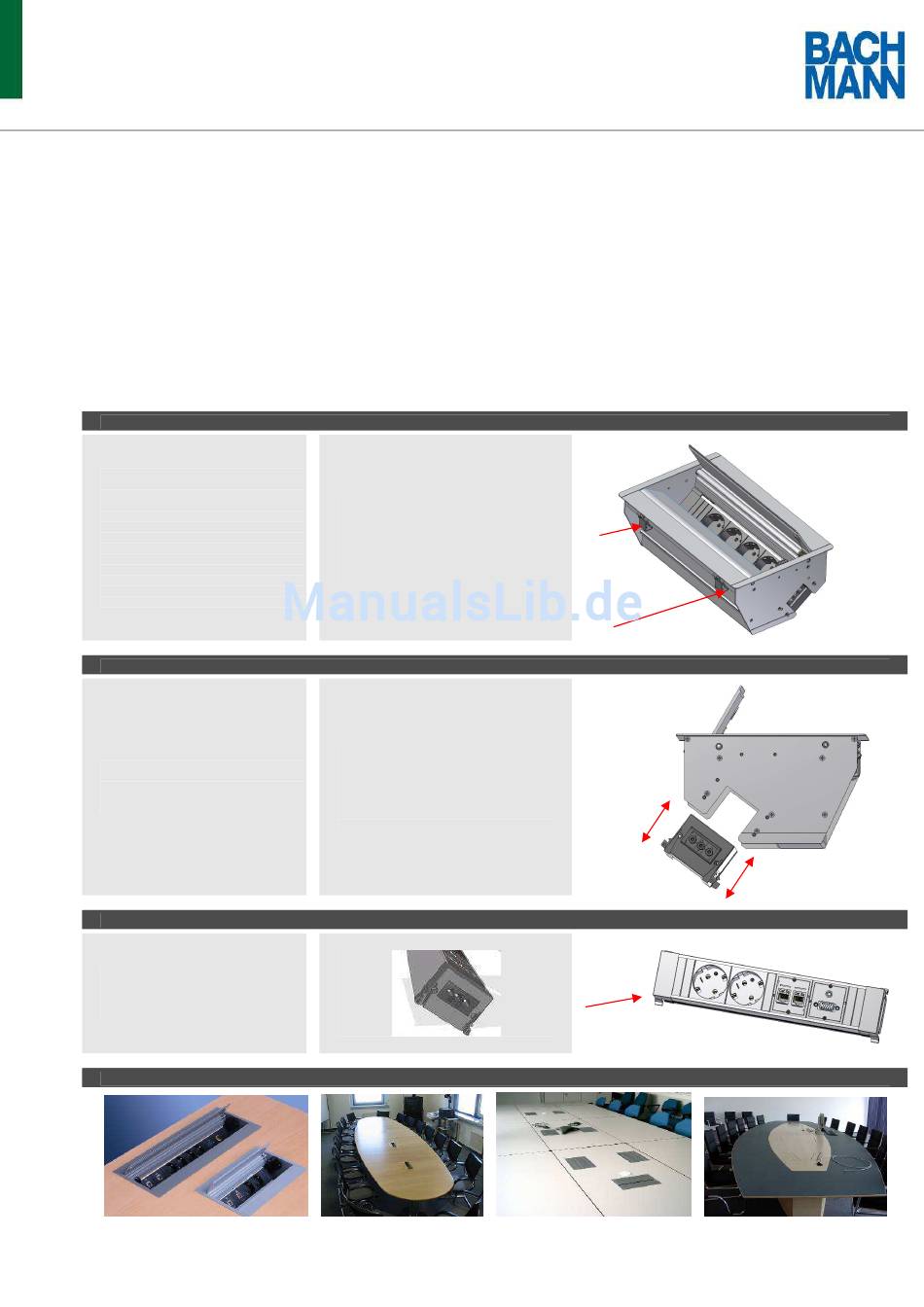

Dimensions of CONFERENCE-built in frame
CONFERENCE-built in frame, short
Built in dimensions (L x W): ..... ca. 271 x 170mm
Outside dimensions (L x W): ... ca. 286 x 183mm
Corner radius: ............................... ....... 6mm
Built in depth: ............................... ca. 105mm
Table thickness: .......................... up to 16mm
CONFERENCE-built in frame, long
Built in dimensions (L x W): .... ca. 452 x 170mm
Outside dimensions (L x W): ... ca. 467 x 183mm
Corner radius: ........................................6mm
Built in depth: .............................. ca. 105mm
Table thickness: ........................ .. up to 16mm
Fit in the CONFERENCE-power strip
CONFERENCE-power strip, short
Dimensions (L x W x H): ......... 260 x 52 x 44mm
CONFERENCE-power strip, long
Dimensions (L x W x H): ...... 444 x 52 x 44mm
CONFERENCE-power strips
The power input of the power strips is at the side.
Please connect the power cable with Wieland
GST18 connector (separately available) in the
power strip.
Built-in examples of CONFERENCE
Operating instructions CONFERENCE DE-EN_Rev. 03
Technical changes, errors and other mistakes might be possible in this documents.
The CONFERENCE-built in frame is inserted in the
table cutout and fixed from downwards to the desk
top with 4 clamping jaws. The clamping jaws are
fixed in the framework. You can tighten the screws
using a standard screwdriver. The clamping jaws
insure the firm assembly in the desk, without hurting
table. To take the built-in frame out, just screw the
screws in the clamping jaws out.
The CONFERENCE-built in frame can be equipped
with different possible power strips, individually
provided, very fast and without tools. The power
strips are unlocked by pressing of the noses of the
endcaps and then pulling it easily backward. To
insert the power strip in the CONFERENCE-built in
frame, push it please from the backside until snaps
in.
