Welcome
The quick guide is a direct part of the product. Please read this document carefully before you insert
the M.2 SSD MODULE into the SSD slot. It contains important information about the
M.2 SSD MODULE safety and usage.
Please keep this document in a safe place and pass it on in full to the new owner if the
M.2 SSD MODULE changes hands.
Package contents
TREKSTOR M.2 SSD MODULE
■
Screwdriver
■
Quick Guide
■
Remove all components from the packaging and remove the packaging material, including the
protective film. Check to ensure that the delivery is complete. If you find that there are missing
or damaged components, contact customer service immediately:
www.trekstor.de/support-en.html
Technical specifications
Capacity:
64 GB / 128 GB / 256 GB (depending on model)
Key:
B & M
Formfactor:
M.2 2242
Interface:
SATA 6G
Speed:
64 GB: read up to 300 MB/s; write up to 100 MB/s
128 GB: read up to 400 MB/s; write up to 300 MB/s
256 GB: read up to 450 MB/s; write up to 350 MB/s
Operation and storage
Temperatures:
5 °C to 30 °C
Relative humidity:
30 % to 70 %
Safety instructions
Please observe the following instructions regarding the use of this electronic component:
Keep the electronic component out of reach of children and pets.
■
Please ensure that the electronic component is used only within the specified
■
environmental conditions.
Ensure that the environment is as dust- and dirt-free as possible.
■
Please do not try to disassemble the electronic component.
■
Do not drop the electronic component and avoid heavy impacts.
■
If the electronic component does not work properly, please contact the manufacturer.
■
The manufacturer hereby confirms that the M.2 SSD MODULE device complies with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
EN
Quick Guide

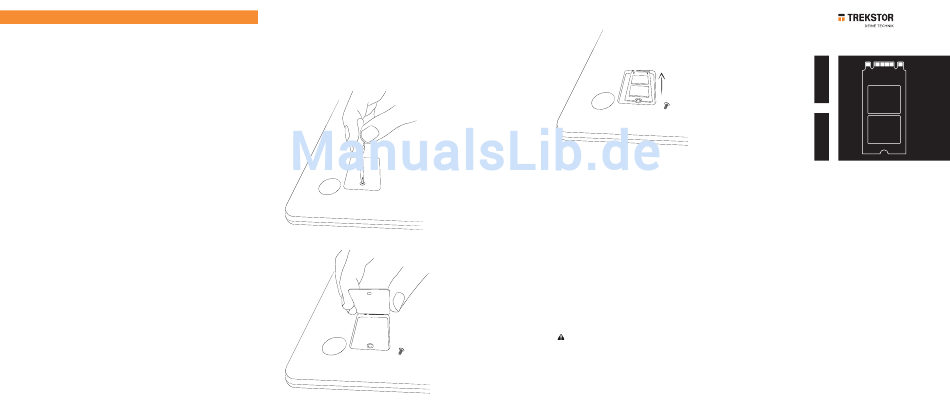

Follow the illustrated step-by-step guide to insert the SSD into the SSD slot.
Make sure the computer is off before inserting the SSD.
Step 1: Unscrew SSD slot
Unscrew the screw in the cover of
the SSD slot using the supplied
screwdriver. Remove the screw and
retain the screw.
Step 4: Close SSD slot
Step 2: Open SSD slot
Close the SSD slot with the cover. Screw the SSD slot with the screw removed in step 1.
Open the cover of the SSD slot by
grasping the screw hole with a narrow
Start your computer.
lever and lift the cover. Do not use
pointed or sharp tools. This can
damage the device. Then remove the
cover with your fingers.
Step 5: Initiate SSD
→ If there is a second screw base
The M.2 SSD MODULE needs to be initiated manually. To do so, please right click the Windows icon
visible after opening the SSD slot,
in the bottom left corner of your screen and select the "Disk management" option. In there you will
unscrew the screw in the screw
find a volume called e.g. "Disk 0" with the note "Unallocated" (marked black).
base. Remove the screw and
retain the screw.
Notice: Be careful NOT to select the system disk (marked blue).
Right-click the SSD, select "New Simple Volume" and follow all the steps prompted. The drive
specifications can be accepted. Once done, the SSD will be available as drive under Windows.
Step 3: Insert SSD
M.2 SSD MODULE
Align the SSD before inserting the SSD
into the slot. The semicircular recess of
the SSD points to the screw base and
the golden contacts of the SSD to the
contacts in the SSD slot.
→ The SSD can only be inserted in one
direction. Depending on the type of
connection in your device, the SSD
may have to be rotated about the
longitudinal axis in order to fit it
correctly.
The SSD has been inserted correctly
when the semicircular recess fits exactly
to the screw base.
→ If necessary, screw the SSD into the
lower screw base using the screw
removed in step 2.
DE KURZANLEITUNG
EN QUICK GUIDE
TREKSTOR GmbH
Berliner Ring 7
64625 Bensheim
Germany
www.trekstor.de
QG-M2SSDM-V1-20-DE-EN-171116
Copyright © 2017 • TREKSTOR GmbH
