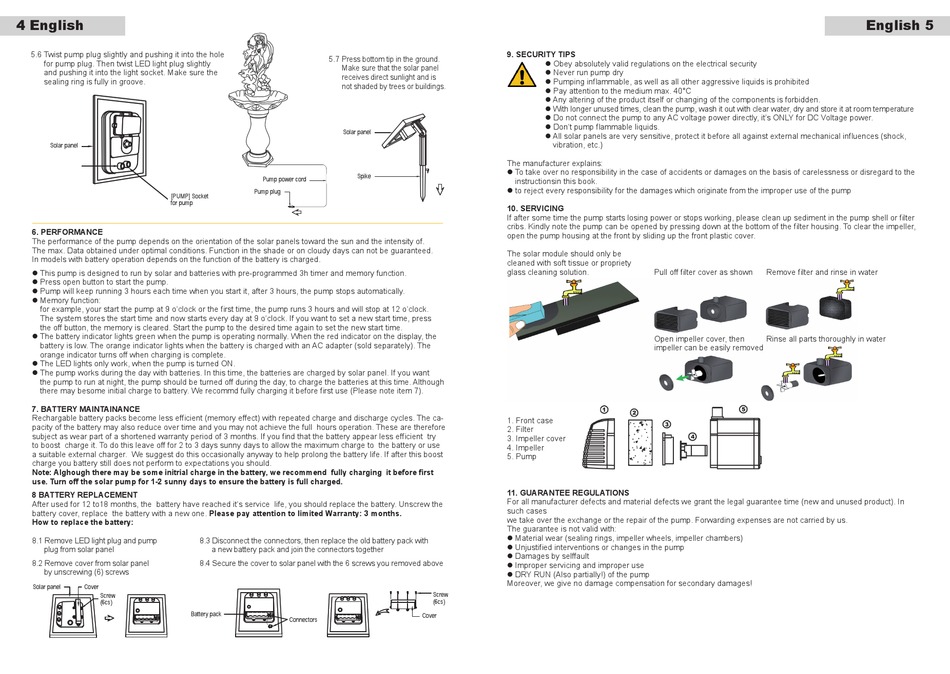

4 English
5.6 Twist pump plug slightly and pushing it into the hole
for pump plug. Then twist LED light plug slightly
and pushing it into the light socket. Make sure the
sealing ring is fully in groove.
Solar panel
[PUMP] Socket
for pump
6. PERFORmANCE
The performance of the pump depends on the orientation of the solar panels toward the sun and the intensity of.
The max. Data obtained under optimal conditions. Function in the shade or on cloudy days can not be guaranteed.
In models with battery operation depends on the function of the battery is charged.
l This pump is designed to run by solar and batteries with pre-programmed 3h timer and memory function.
l Press open button to start the pump.
l Pump will keep running 3 hours each time when you start it, after 3 hours, the pump stops automatically.
l Memory function:
for example, your start the pump at 9 o'clock or the fi rst time, the pump runs 3 hours and will stop at 12 o'clock.
The system stores the start time and now starts every day at 9 o'clock. If you want to set a new start time, press
the off button, the memory is cleared. Start the pump to the desired time again to set the new start time.
l The battery indicator lights green when the pump is operating normally. When the red indicator on the display, the
battery is low. The orange indicator lights when the battery is charged with an AC adapter (sold separately). The
orange indicator turns off when charging is complete.
l The LED lights only work, when the pump is turned ON.
l The pump works during the day with batteries. In this time, the batteries are charged by solar panel. If you want
the pump to run at night, the pump should be turned off during the day, to charge the batteries at this time. Although
there may besome initial charge to battery. We recommd fully charging it before fi rst use (Please note item 7).
7. BATTERY mAINTAINANCE
Rechargable battery packs become less effi cient (memory effect) with repeated charge and discharge cycles. The ca-
pacity of the battery may also reduce over time and you may not achieve the full hours operation. These are therefore
subject as wear part of a shortened warranty period of 3 months. If you fi nd that the battery appear less effi cient try
to boost charge it. To do this leave off for 2 to 3 days sunny days to allow the maximum charge to the battery or use
a suitable external charger. We suggest do this occasionally anyway to help prolong the battery life. If after this boost
charge you battery still does not perform to expectations you should.
Note: Alghough there may be some initrial charge in the battery, we recommend fully charging it before fi rst
use. Turn off the solar pump for 1-2 sunny days to ensure the battery is full charged.
8 BATTERY REPLACEmENT
After used for 12 to18 months, the battery have reached it's service life, you should replace the battery. Unscrew the
battery cover, replace the battery with a new one. Please pay attention to limited Warranty: 3 months.
how to replace the battery:
8.1 Remove LED light plug and pump
plug from solar panel
8.2 Remove cover from solar panel
by unscrewing (6) screws
Solar panel
Cover
Screw
(6cs)
Battery pack
5.7 Press bottom tip in the ground.
Make sure that the solar panel
receives direct sunlight and is
not shaded by trees or buildings.
Solar panel
Spike
Pump power cord
Pump plug
8.3 Disconnect the connectors, then replace the old battery pack with
a new battery pack and join the connectors together
8.4 Secure the cover to solar panel with the 6 screws you removed above
Connectors
9. SECURITY TIPS
l Obey absolutely valid regulations on the electrical security
l Never run pump dry
l Pumping infl ammable, as well as all other aggressive liquids is prohibited
l Pay attention to the medium max. 40°C
l Any altering of the product itself or changing of the components is forbidden.
l With longer unused times, clean the pump, wash it out with clear water, dry and store it at room temperature
l Do not connect the pump to any AC voltage power directly, it's ONLY for DC Voltage power.
l Don't pump fl ammable liquids.
l All solar panels are very sensitive, protect it before all against external mechanical infl uences (shock,
vibration, etc.)
The manufacturer explains:
l To take over no responsibility in the case of accidents or damages on the basis of carelessness or disregard to the
instructionsin this book.
l to reject every responsibility for the damages which originate from the improper use of the pump
10. SERVICING
If after some time the pump starts losing power or stops working, please clean up sediment in the pump shell or fi lter
cribs. Kindly note the pump can be opened by pressing down at the bottom of the fi lter housing. To clear the impeller,
open the pump housing at the front by sliding up the front plastic cover.
The solar module should only be
cleaned with soft tissue or propriety
glass cleaning solution.
1. Front case
2. Filter
3. Impeller cover
4. Impeller
5. Pump
11. GUARANTEE REGULATIONS
For all manufacturer defects and material defects we grant the legal guarantee time (new and unused product). In
such cases
we take over the exchange or the repair of the pump. Forwarding expenses are not carried by us.
The guarantee is not valid with:
l Material wear (sealing rings, impeller wheels, impeller chambers)
l Unjustifi ed interventions or changes in the pump
l Damages by selffault
l Improper servicing and improper use
l DRY RUN (Also partially!) of the pump
Moreover, we give no damage compensation for secondary damages!
Screw
(6cs)
Cover
Pull off fi lter cover as shown
Remove fi lter and rinse in water
Open impeller cover, then
Rinse all parts thoroughly in water
impeller can be easily removed
English 5
