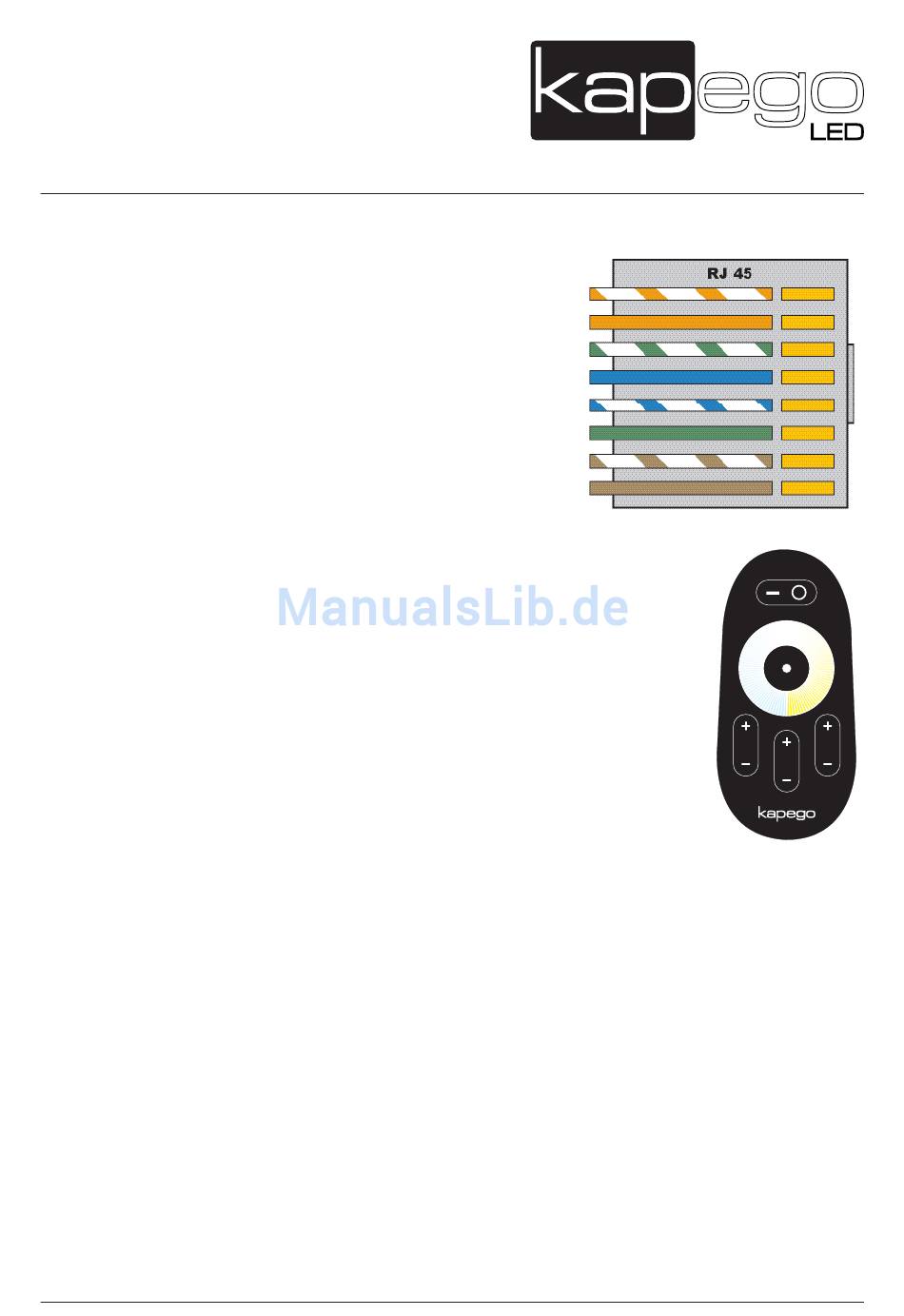

5. RJ45 assignment

1. WHT/ORG Data 1 +
3. WHT/GRN Data 2 +
5. WHT/BLU N/C
7. WHT/BRN Data 1 COM
8. BRN Data 2 COM

6. Touch-Remote

Operation:
Frequency:
Distance:
Dimension (LxWxH):
On/Off Switch:
Touch Wheel:
Program Button "P":
Speed Button "S":
Dim Button "D":
1. Connect Touch-Controller with White RF Controller
a. Switch on the Power of the White RF Controller and wait ca. 1s and then push the
"ON" button on the Touch-Controller, after that the LED fl ashes up 3 times, then the
Touch-Controller and the Controller are connected.
b. If this step isn't working please try again.
2. Disconnect Touch-Controller from RGB RF Controller
a. Switch on the LED bulb and wait ca. 1s and then hold the "ON" button again till the
LED fl ashes up 9 times, then the Touch-Controller and the White RF Controller are
disconnected.
b. Now you can address the White RF Controller again with the same or another Touch-
Controller.
2x AAA Batterien (excl.)
2,4 GHz
ca. 20 m (inside)
110 x 52 x 20 mm
addressing with "ON"
Dimmer 0-100%
Change the program
Speed control
Dimmer
5
1
3
5
7
8
D P
S
