Einführung Vielen Dank für den Kauf des FLYBAR 270L Coax von XciteRC. Die vorliegende Bedienungsanleitung ent- hält wichtige Hinweise für den Betrieb Ihres neuen Modells. Lesen Sie deshalb, bevor Sie das Modell in Betrieb nehmen, alle Anweisungen dieser Bedienungsanleitung vollständig durch, damit Sie Ihr Modell gefahrlos betreiben können.
Seite 4
Sicherheitshinweise schäden, die durch unsachgemäße Handhabung oder Nichtbeachtung der Sicherheitshinweise entstehen, übernimmt die XciteRC Modellbau GmbH & Co. KG keine Haftung. In diesen Fällen erlischt die Gewährleis- tung. Bewegen Sie Ihr Modell immer mit größter Vorsicht und Verantwortung, ansonsten kann es zu Schäden an fremden Eigentum oder gar Personenschäden kommen.
Lithium-Akku längere Zeit gelagert, kann er beschädigt werden. Die Firma XciteRC Modellbau GmbH & Co. KG kann den korrekten Umgang mit den von Ihnen verwendeten Akkus bzw. Batterien nicht überwachen, daher wird die Gewährleistung bei falscher Ladung oder Entladung ausgeschlossen.
Fernsteuersystem Das Fernsteuersystem Im Folgenden bekommen Sie einen Überblick über das Fernsteuersystem Ihres XciteRC FLYBAR 270L Coax und über seine verschiedenen Funktionen und Einstellungen. Vor dem ersten Flug sollten Sie unbedingt alle diese Funktionen und Einstellungen gelesen und verstanden haben.
WARNUNG: Nur mit ausreichend vollen Senderbatterien und vollständig geladenem Flugakku star- ten – Absturzgefahr! • Überprüfen Sie alle Teile des XciteRC FLYBAR 270L Coax auf Beschädigungen sowie Schmutz. Tauschen Sie beschädigte Teile aus und reinigen das Modell, da Schmutz das Gewicht erhöht und damit die Flug- eigenschaften verschlechtern kann.
Trimmung für Gieren (siehe Abb.) korri- giert werden. Dreht er sich nach links, drücken Sie den Trimmhebel solange nach rechts, bis sich die Nase nicht mehr bewegt. Dreht er sich nach rechts, Trimmhebel nach links drücken. XciteRC Flybar 270L Coax...
• Nach der Landung Modell und anschließend Sender ausschalten. WARNUNG: der Motor des XciteRC FLYBAR 270L Coax wird während des Betriebs sehr warm. Lassen Sie ihn vor dem nächsten Start mindestens 20 Minuten abkühlen, um ihn nicht zu beschädigen -...
Sie es - bevor Sie es benutzt haben - an Ihren Fachhändler oder an uns zurück und wir werden Ihnen Ersatz liefern. Für den XciteRC FLYBAR 270L Coax sind einige Teile als Ersatzteile verfügbar. Ist ein Teil defekt oder ver- schlissen, können Sie es mit Hilfe der Explosionszeichnungen identifizieren und neu erwerben.
Seite 11
Diese durchgekreuzte Mülltonne bedeutet, dass Sie Batterien und Akkus nicht im Hausmüll entsorgen dür- fen. Unter diesen Zeichen finden Sie zusätzlich nachstehende Symbole mit folgender Bedeutung: • Cd = Cadmium • Pb = Blei • Hg = Quecksilber • Li = Lithium Li-Po XciteRC Flybar 270L Coax...

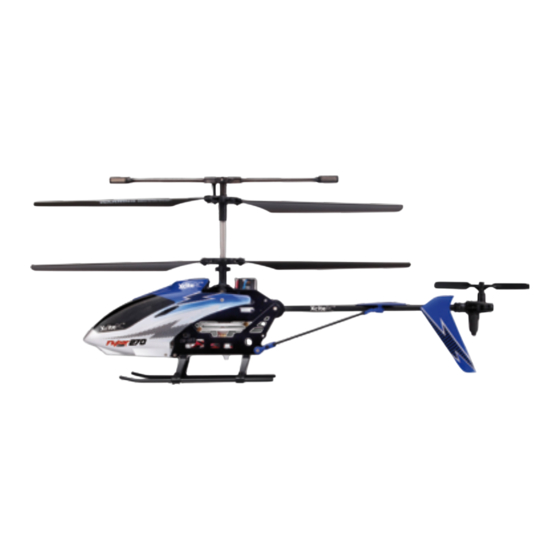

Introduction Thank you for purchasing the helicopter Flybar 270L from XciteRC. This manual contains important instruc- tions for operating your new model. Therefore, please read all instructions in this manual thoroughly before using the model, so that you can operate your model safely.
Seite 14
WARNING: remove the drive battery from the model and transmitter after use. Store the model never with built-in battery. Fire hazard! • Store batteries separately on a non-combustible surface. • The drive components (motor and speed controller) or the car battery may become hot during operation. XciteRC Flybar 270L Coax...
The XciteRC Modellbau GmbH & Co. KG cannot monitor the proper use of the battery or batteries you use, therefore, the warranty is excluded due to incorrect charging or discharging.
The remote control system Here you get an overview of the remote control system of your XciteRC Flybar 270L and its various features and settings. Before the first flight, you should absolutely have read and understood all these functions and settings.
• The transmitter LED and the red helicopter LED will now light. • Check the motor and servo functions. • If the flight battery runs low, the motor speed is reduced and the helicopter sinks automatically. Find a XciteRC Flybar 270L Coax...
Landing: • Carefully push the left throttle lever rearward. Try to land „smooth“ without damaging the helicopter. • NOTE: if the flight battery runs empty, the helicopter does not respond accurately to your com- XciteRC Flybar 270L Coax...
In this case land immediately. • Switch of the helicopter and then the transmitter. WARNING: the motor of the XciteRC FLYBAR 270L may get very hot during operation. Allow to cool down minimum 20 minutes before the next start to avoid damage. Fire hazard!
XciteRC Modellbau GmbH & Co. KG - Service, Autenbachstrasse 12, D-73035 Göppingen, Phone +49 7161 40 799 50 Email: service@xciterc.de Spare parts for the XciteRC FLYBAR 270L you may order in your local hobby shop or online at http://www. XciteRC.de/ Environmental Protection Notes The symbol of the crossed out dust bin on the product or packaging indicates that this product must be disposed of separately from normal household waste.
Introduction Nous vous remercions pour votre achat d’un hélicoptère Flybar 270L de XciteRC. La notice d’emploi livrée contient des consignes importantes pour l’utilisation de votre nouveau modèle. Pour une utilisation sans danger lisez toutes les consignes de cette notice avant de mettre votre modèle en marche.
Consignes de securité CONSIGNES DE SECURITE Ces indications doivent être respectées impérativement. La XciteRC Modellbau GmbH&Co.KG décline toute responsabilité en cas de dommages aux personnes et/ou à autre matériel suite à une utilisation non con- forme ou suite au non-respect des consignes de sécurité. Dans ces cas, la garantie ne s’applique pas.
– Risque de Crash! Télécommande (Emetteur) Antenne Interrupteur ON/OFF LED POWER Speed Manche de commande Manche de cde des gaz Trim de direction 9 11 4 5 6 7 8 Trim translation Ecran LCD avant-arrière XciteRC Flybar 270L Coax...
• Par ailleurs la LED de l’émetteur et celle de l’hélicoptère restent allumées au rouge. • Si l’accu de propulsion perd de sa charge, le nombre de tours/moteur chute, et le hélicoptère ralentit. Rechargez l’accu de propulsion. XciteRC Flybar 270L Coax...
A NOTER: si l’accu de vol arrive en fin de charge, les réactions de l’hélicoptère aux ordres de com- mande deviennent moins précises, et le vol devient instable. Dans ce cas, atterrissez immédiatement. • Une fois posé, coupez la réception et ensuite l’émetteur. XciteRC Flybar 270L Coax...
Les traces d’une usure normale et les pièces endommagées suite à un accident ne sont pas couverts par la garantie. La responsabilité du constructeur est entièrement exclue. L’exclusion de la garantie s’applique en général comme suit : XciteRC Flybar 270L Coax...
éclaté pour l’identifier et la commander. En cas de problème ou de questions consultez votre concessionnaire. XciteRC Modellbau GmbH & Co. KG - Service, Autenbachstrasse 12, D-73035 Göppingen, Tel. +49 7161 40 799 50 Email: service@xciterc.de...
Seite 31
Le symbole de la poubelle barrée signifie que les piles et les accumulateurs ne doivent pas être jetés dans la poubelle classique. Ci-dessous les symboles que vous reconnaitrez • Cd = Cadmium • Pb = Plomb • Hg = mercure • Li = Lithium Li-Po XciteRC Flybar 270L Coax...
Seite 32
Cordon de charge USB fiche anguleux Axe et pignons 12021007 12021008 Kabinenhaube + Stabilisator blau Kabinenhaube + Stabilisator gelb/rot Canopy + Vertical stabiliser blue Canopy + Vertical stabiliser yellow/red Cellule + stabilisateur arrière bleu Cellule + stabilisateur arrière jaune/rouge XciteRC Flybar 270L Coax...
