Oven And Accessories - Sharp R-28ST Bedienungsanleitung

6
1
4
5 3
11
13
Hub (inside)
14. Turntable
(glass)
16. Coupling
NOTES:
• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not
damaged.
• Always operate the oven with the turntable and turntable support fitted correctly. This promotes thorough,
even cooking. A badly fitted turntable may rattle, may not rotate properly and could cause damage to the
oven.
• All food and containers of food are always placed on the turntable for cooking.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each time you start the
oven. This does not affect cooking performance.
10
2
9
7 8 4
12
15. Turntable
support

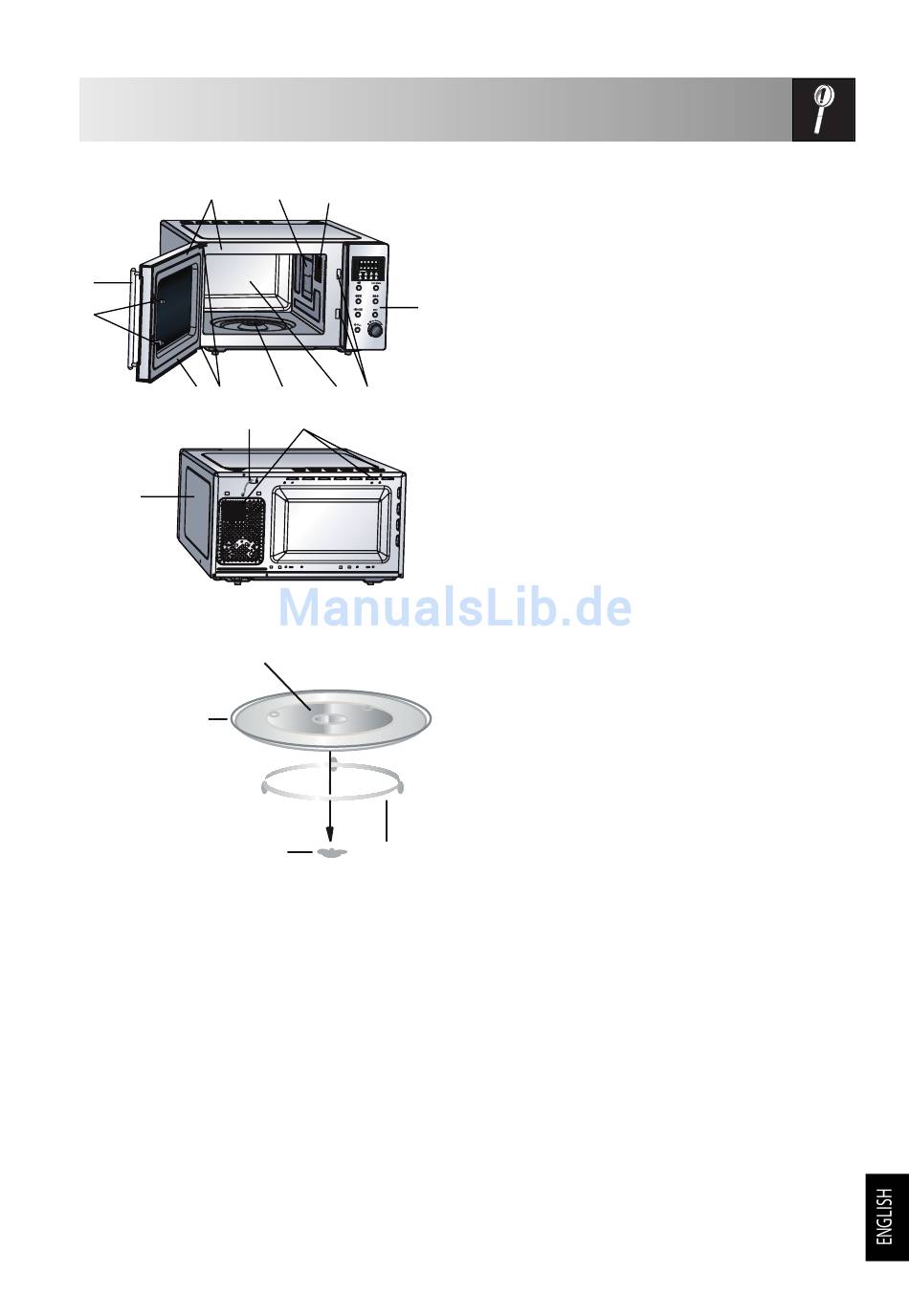

OVEN AND ACCESSORIES

OVEN
1. Door handle
2. Oven lamp
3. Door hinges
4. Door safety latches
5. Door
6. Door seals and sealing surfaces
7. Turntable motor shaft
8. Oven cavity
9. Control Panel
10. Waveguide cover (DO NOT REMOVE)
11. Power supply cord
12. Ventilation openings
13. Outer cabinet
ACCESSORIES:
Check to make sure the following accessories are
provided:
(14) Turntable (15) Turntable support (16) Coupling
Place the coupling into the turntable motor shaft
and then place the turntable support in the centre
of the oven floor so that it can freely rotate around
the coupling. Place the turntable onto the turntable
support so that it locates firmly into the coupling.
To avoid turntable damage, ensure dishes and
containers are lifted clear of the turntable rim when
removing them from the oven.
NOTE: When you order accessories, please mention
two items: part name and model name to your
dealer or SHARP authorised service agent.
GB-3
