WICHTIGE SICHERHEITSHINWEISE WARNUNG! Lesen Sie aufmerksam die Sicherheitshinweise und benutzen Sie das Produkt nur wie in dieser Anleitung beschrieben, damit es nicht versehentlich zu Verletzungen oder Schäden kommt. Verwendungszweck • Diese DMX-gesteuerte Maschine dient zur Verteilung von losem Konfetti von einem Podest oder einer Traverse. Das Gerät ist für professionelle Anwendungen im Bereich der Veranstaltungstechnik vorgesehen (z.
Seite 5
Warnung vor Verbrennung und Brand • Der zulässige Umgebungstemperaturbereich (Ta) beträgt -5 bis +45 °C. Verwenden Sie das Gerät niemals außerhalb dieses Temperaturbereichs. • Die Gehäusetemperatur (Tc) kann im Betrieb bis zu 50 °C betragen. Vermeiden Sie den Kontakt mit Personen oder Gegenständen.

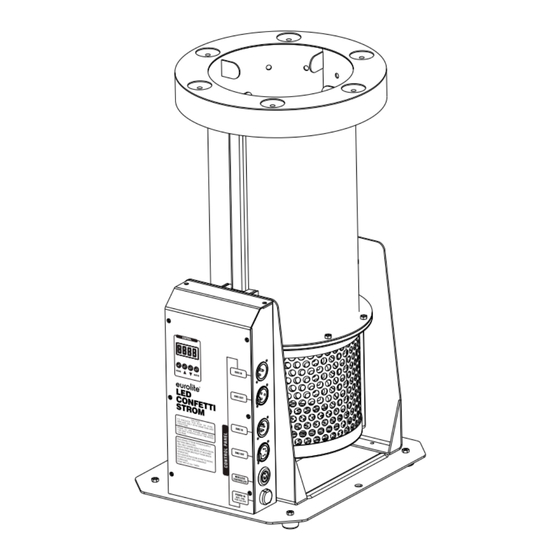

BEDIENELEMENTE UND ANSCHLÜSSE Austrittsdüse Anschluss Funkfernbedienung Display und Bedientasten Netzkabel 3-polige DMX512-Anschlüsse RGBA-LEDs 5-polige DMX512-Anschlüsse Feststellschraube INBETRIEBNAHME Aufstellen • Entfernen Sie jegliches Verpackungsmaterial vom Versandkarton. Vergewissern Sie sich, dass alle Schaumstoff- und Plastikeinlagen entfernt werden, insbesondere in der Nähe der Austrittsdüse. •...
BEDIENUNG Die Maschine verfügt über ein Bedienfeld mit Display zum Einstellen der DMX-Startadresse. Die Maschine kann manuell über die Tasten am Bedienfeld, die Funkfernbedienung oder mit einem betrieben DMX-Controller werden. Die DMX-Steuerung hat stets Vorrang vor dem manuellen Betrieb. Nach dem Anschluss ans Netz ist das Gerät eingeschaltet. Wenn das Gerät kein DMX-Signal empfängt, zeigt das Display „Addr“.
DMX-BETRIEB Anschlüsse herstellen Das Gerät verfügt über 3- und 5-polige XLR-Anschlüsse für den DMX-Anschluss. • Verbinden Sie den Ausgang Ihres Controllers mit dem DMX-Eingang DMX IN des Geräts über ein DMX-Kabel. • Verbinden Sie den DXM-Ausgang DMX OUT des Geräts mit dem DMX-Eingang des nächsten Geräts in der Kette.
INTRODUCTION Welcome to Eurolite! Thank you for choosing one of our products. Eurolite is Experience Eurolite. your connection to the world of show with an unparalleled variety of products, Product videos, suitable both for professionals and beginners. accessories, firmware and software updates,...
IMPORTANT SAFETY INSTRUCTIONS WARNING! Please read the safety warnings carefully and only use the product as describe in this manual to avoid accidental injury or damage. Intended use • This DMX-controlled machine is designed to shoot loose confetti from a podium or truss. This device is designed for professional use in the field of event technology, e.g.
Seite 13
Warning – risk of burns and fire • The admissible ambient temperature range (Ta) is -5 to +45°C. Do not operate the device outside of this temperature range. • The housing temperature (Tc) can be up to 50°C during use. Avoid contact by persons and materials. •...
OPERATING ELEMENTS AND CONNECTIONS Output nozzle Remote control connector Display and operating buttons Power cable 3-pin DMX512 connectors RGBA LEDs 5-pin DMX512 connectors Fixation screw SETUP Placing the unit • Remove all packing materials from the shipping box. Make sure that there are no packing remnants at the output nozzle.
OPERATION The built-in control panel of the machine features four operating buttons and a display for setting the DMX address. The machine can be operated manually with the operating buttons at the control panel, the remote control or a DMX controller. DMX control will take priority over the manual operation. After connecting the device to the power supply it is switch on.
DMX CONTROL Making the connections The unit features 3-pin and 5-pin XLR plugs for DMX connection. • Connect the output of your DMX controller to the DMX IN jack of the machine with a DMX cable. • Connect the DMX OUT jack of the machine to the DMX input of the next unit in the chain. Always connect one output to the input of the next unit until all units are connected.
Accessories No. 59006856 EUROLITE TPC-10 Coupler, silver No. 58010320 EUROLITE Safety Bond A 4x1000mm up to 15kg silver No. 51708850 TCM FX Metallic Confetti rectangular 55x18mm, white, 1kg No. 51708930 TCM FX Metallic Confetti rectangular 55x18mm, silver, laser effect, 1kg No.
