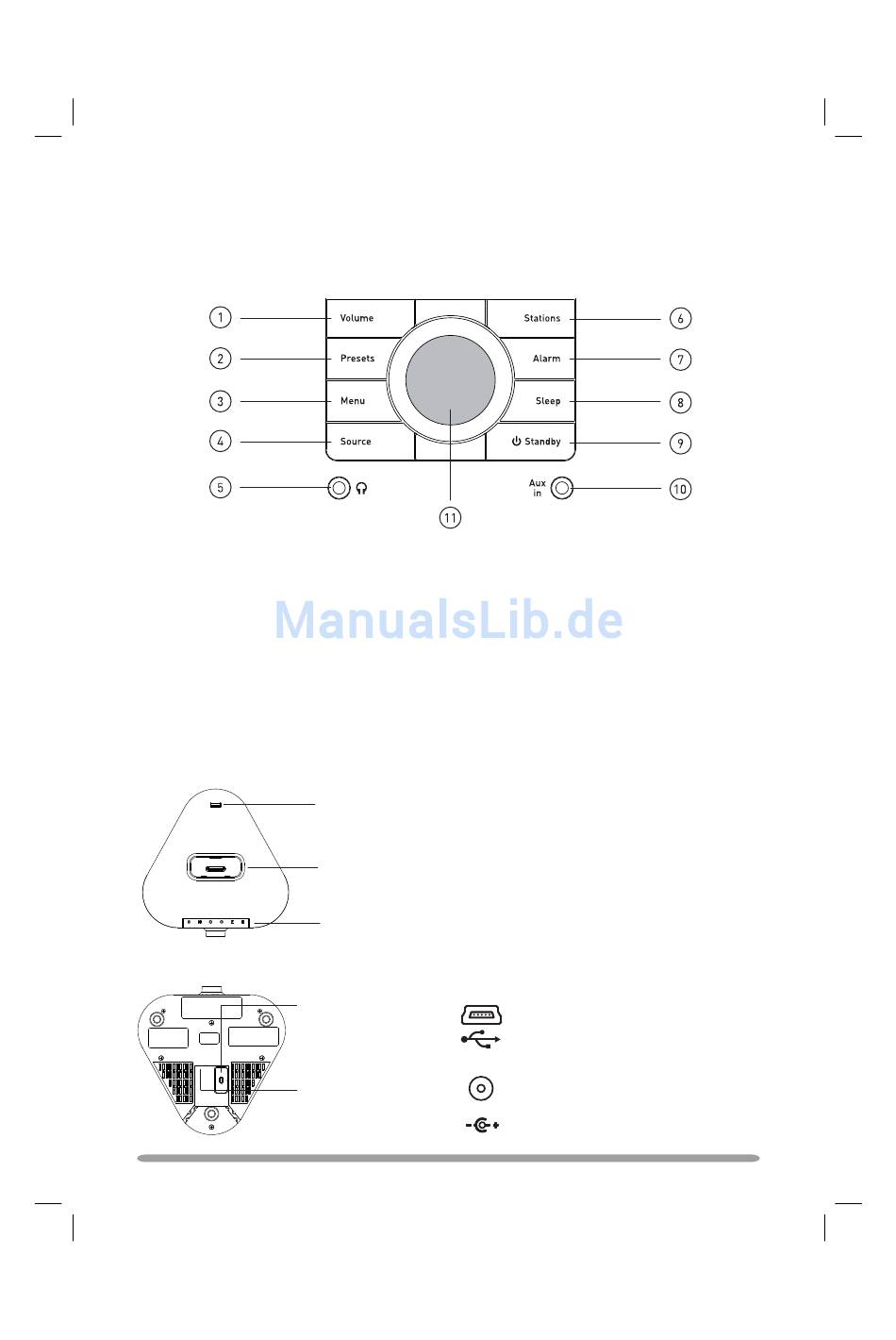

Overview of the controls and connectors

Front panel

1. Adjust the audio volume
2. Store and select preset stations
3. Enter options menu
4. Switch between DAB/FM/iPod/Auxiliary
source
5. 3.5mm stereo headphone socket
6. Enter station list (DAB) or tuning (FM)
Top
PowerPort
Underneath
2
7. Enter alarm setup
8. Set sleep timer
9. Switch between Standby and On
10. 3.5mm auxiliary socket
11. Navigation dial. Rotate to navigate
PowerPort for compatible USB accessories
iPod/iPhone dock
Snooze button
USB input socket
(mini B type) for
upgrades
Power input socket for
supplied 9V DC mains
9V DC
adapter
menus, push to confirm selections
