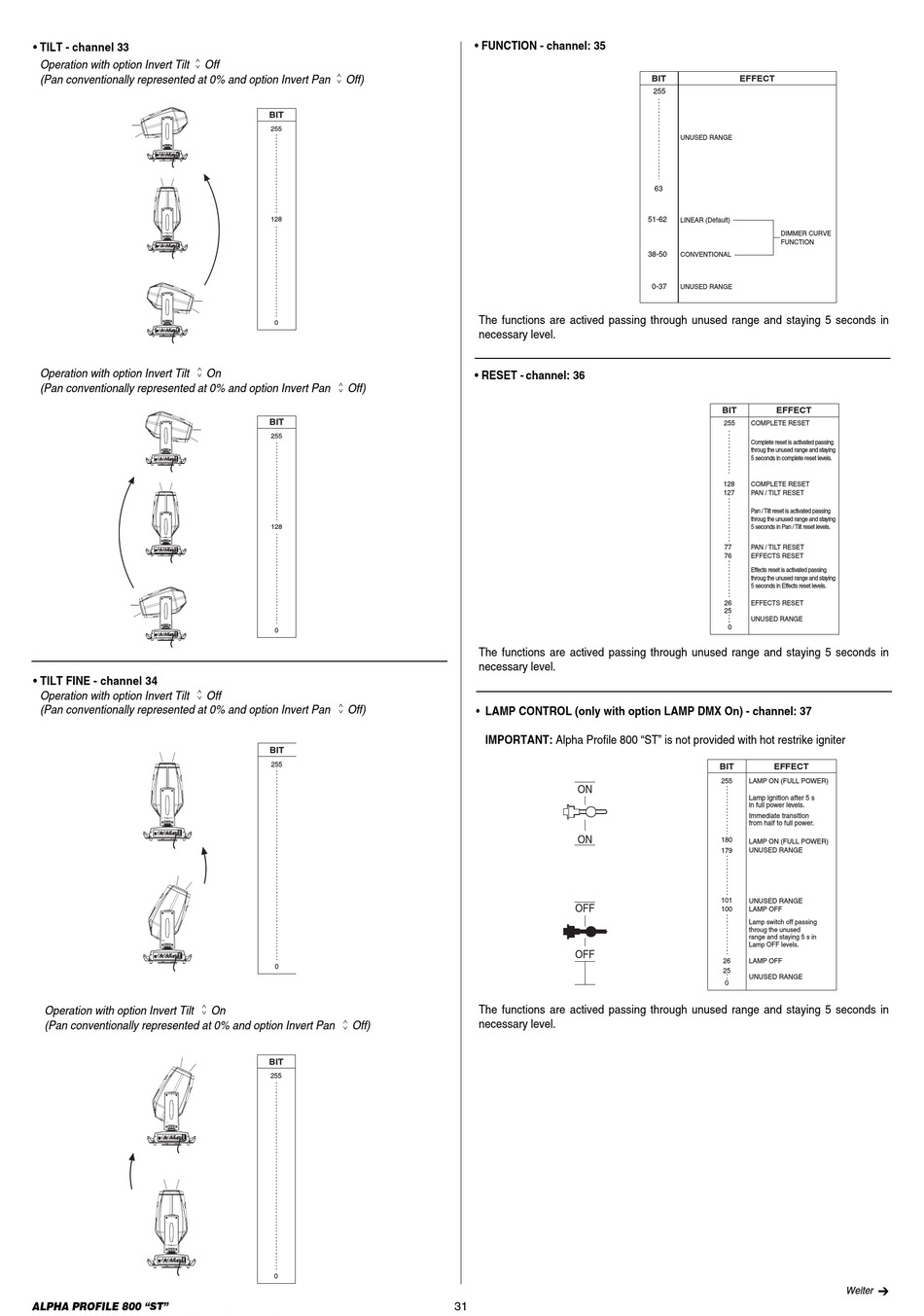

• TILT - channel 33
G
Operation with option Invert Tilt Off
(Pan conventionally represented at 0% and option Invert Pan
G
Operation with option Invert Tilt On
(Pan conventionally represented at 0% and option Invert Pan
• TILT FINE - channel 34
G
Operation with option Invert Tilt Off
(Pan conventionally represented at 0% and option Invert Pan
G
Operation with option Invert Tilt
(Pan conventionally represented at 0% and option Invert Pan
ALPHA PROFILE 8 "ST"
G
Off)
BIT
255
128
0
G
Off)
BIT
255
128
0
G
Off)
BIT
255
0
On
G
Off)
BIT
255
0
• FUNCTION - channel: 35
The functions are actived passing through unused range and staying 5 seconds in
necessary level.
• RESET - channel: 36
The functions are actived passing through unused range and staying 5 seconds in
necessary level.
• LAMP CONTROL (only with option LAMP DMX On) - channel: 37
IMPORTANT: Alpha Profile 800 "ST" is not provided with hot restrike igniter
ON
ON
OFF
OFF
The functions are actived passing through unused range and staying 5 seconds in
necessary level.
31
BIT EFFECT
255
UNUSED RANGE
63
51-62
LINEAR (Default)
DIMMER CURVE
FUNCTION
38-50 CONVENTIONAL
0-37 UNUSED RANGE
BIT EFFECT
255 COMPLETE RESET
Complete reset is activated passing
throug the unused range and staying
5 seconds in complete reset levels.
128 COMPLETE RESET
127 PAN / TILT RESET
Pan / Tilt reset is activated passing
throug the unused range and staying
5 seconds in Pan / Tilt reset levels.
77 PAN / TILT RESET
76 EFFECTS RESET
Effects reset is activated passing
throug the unused range and staying
5 seconds in Effects reset levels.
26 EFFECTS RESET
25
UNUSED RANGE
0
BIT EFFECT
255 LAMP ON (FULL POWER)
Lamp ignition after 5 s
in full power levels.
Immediate transition
from half to full power.
180
LAMP ON (FULL POWER)
179 UNUSED RANGE
101
UNUSED RANGE
100 LAMP OFF
Lamp switch off passing
throug the unused
range and staying 5 s in
Lamp OFF levels.
26 LAMP OFF
25
UNUSED RANGE
0
