Tips for correct Antenna Adjustment
To verify the quality of reception, you can use either the
TV picture or the option of displaying the reception level
and signal quality in the set-up menu of your receiver.
If reception is subject to interference, turn the antenna
slightly, or alter the direction of polarisation by titling it
sideways (horizontal – vertical), and check the quality of
reception.
If it is impossible to get optimum reception, set the
antenna up in a different place (we recommend a position close to a window),
and repeat the steps described above.
Even for wall mounting installation, before you should check antenna position
at the wall and in the room for best possible reception quality.

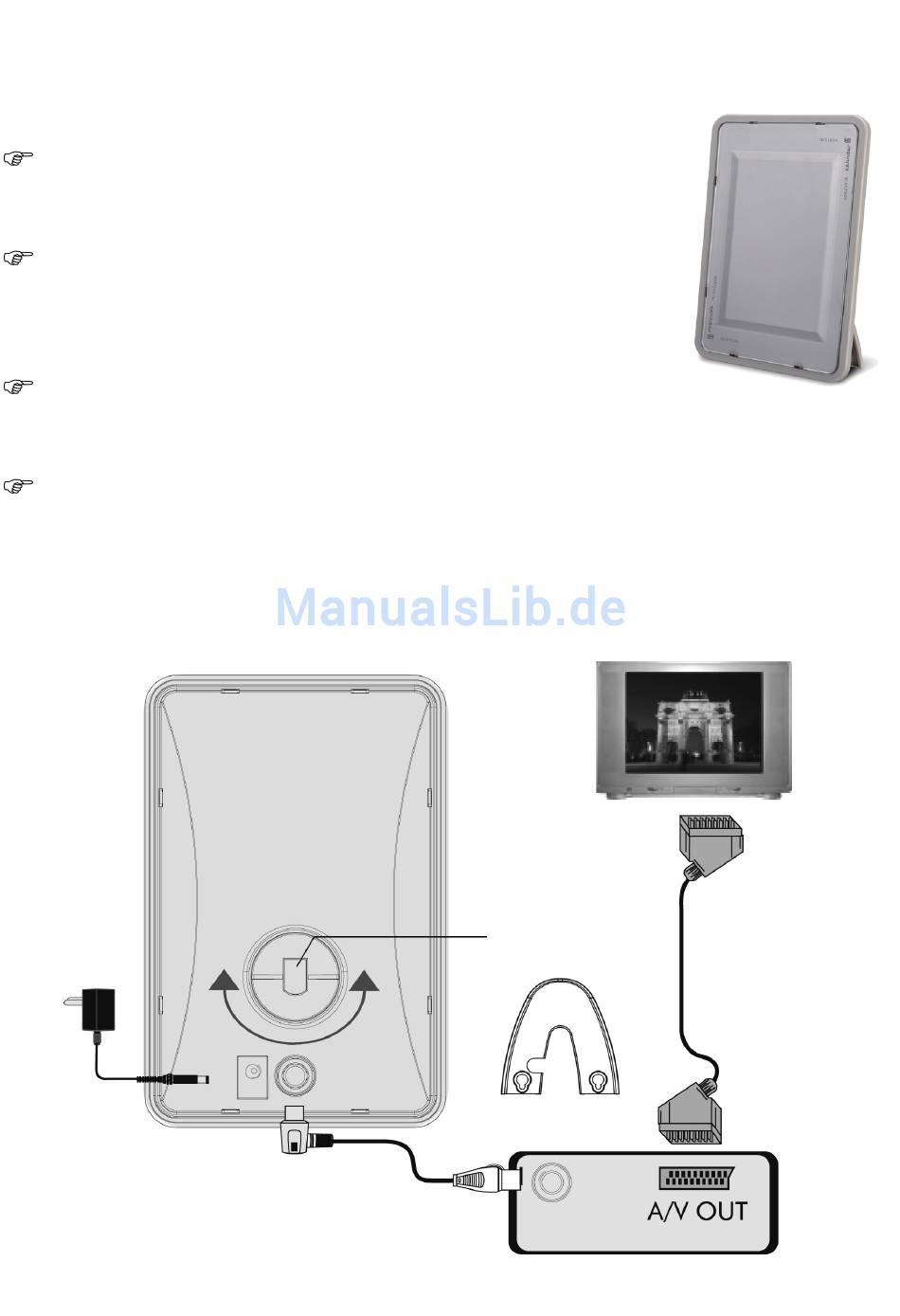

Connecting Illustration
To AC
Outlet
Step 2. :
9V DC Power
AA04 Rear View
Step 1.:
F to IEC RF Cable
Step 3. :
Standing Unit
DVB-T Receiver Rear View
10
TV
Step 4. :
SCART
CABLE
