2. Installation

2.5 Connection to the RS232 or USB communications port (optional)

2.6 Connection to the data-line protection port (optional)

Page 14 -
34007115EN/AA
26
27
2
1
The RS232 and USB
communications ports cannot
operate simultaneously.

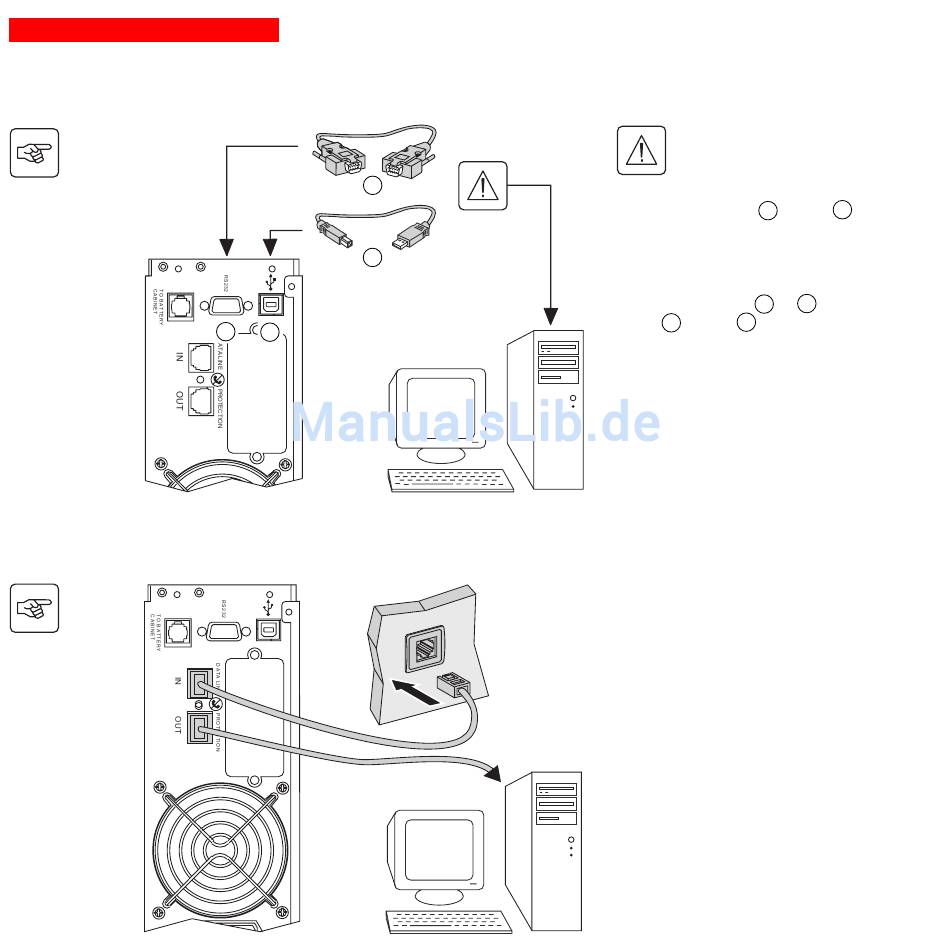

1 - Connect the RS232 26 or USB 27
communications cable to the serial port or
the USB port on the computer.
2 - Connect the other end of the
communications cable 26 or 27 to the
RS232 2 or USB 1 communications
port on the UPS.
The UPS can now communicate with all
MGE UPS SYSTEMS supervision, set-up or
safety software.
The data-line protection function on the UPS
eliminates overvoltages flowing on the
computer-network lines.
Simply connect the line to be protected to
the UPS using the data-line protection
connectors (IN and OUT) as indicated
opposite (RJ45 cables not supplied).
