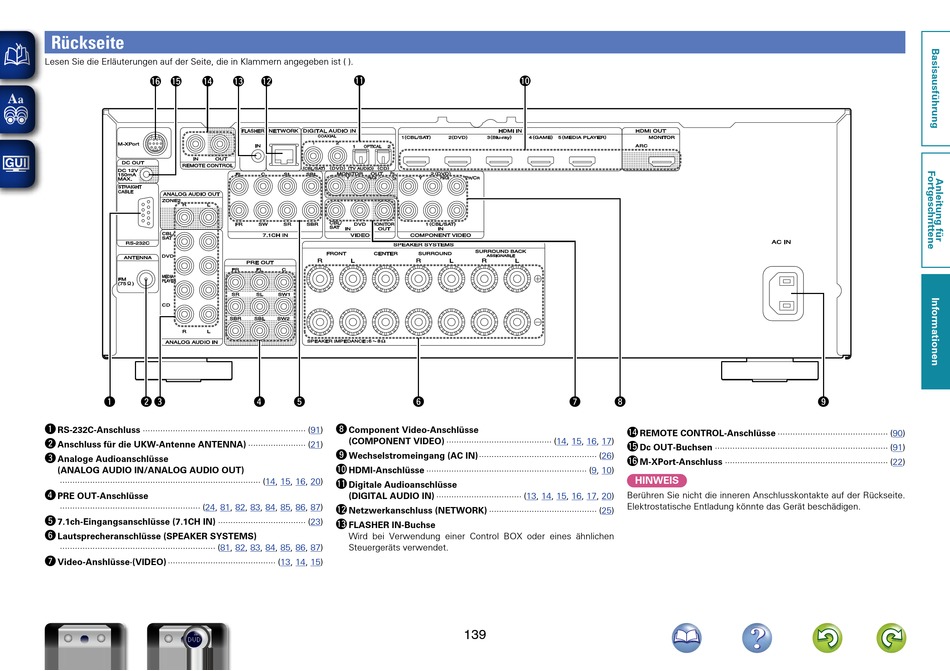

Rückseite
Lesen Sie die Erläuterungen auf der Seite, die in Klammern angegeben ist ( ).
Q6 Q5 Q4
q w e
q
RS-232C-Anschluss ································································· (91)
w
Anschluss für die UKW-Antenne ANTENNA) ······················· (21)
e
Analoge Audioanschlüsse
(ANALOG AUDIO IN/ANALOG AUDIO OUT)
················································································ (14, 15, 16, 20)
r
PRE OUT-Anschlüsse
························································ (24, 81, 82, 83, 84, 85, 86, 87)
t
7.1ch-Eingangsanschlüsse (7.1CH IN) ··································· (23)
y
Lautsprecheranschlüsse (SPEAKER SYSTEMS)
······························································ (81, 82, 83, 84, 85, 86, 87)
u
Video-Anshlüsse·(VIDEO) ··········································· (13, 14, 15)
DVD
Q3 Q2 Q1
r t
i
Component Video-Anschlüsse
(COMPONENT VIDEO) ·········································· (14, 15, 16, 17)
o
Wechselstromeingang (AC IN) ··············································· (26)
Q0
HDMI-Anschlüsse ································································ (9, 10)
Q1
Digitale Audioanschlüsse
(DIGITAL AUDIO IN) ·································· (13, 14, 15, 16, 17, 20)
Q2
Netzwerkanschluss (NETWORK) ··········································· (25)
Q3
FLASHER IN-Buchse
Wird bei Verwendung einer Control BOX oder eines ähnlichen
Steuergeräts verwendet.
Q0
y u
139
i
Q4
REMOTE CONTROL-Anschlüsse ············································ (90)
Q5
Dc OUT-Buchsen ····································································· (91)
Q6
M-XPort-Anschluss ································································· (22)
HINWEIS
Berühren Sie nicht die inneren Anschlusskontakte auf der Rückseite.
Elektrostatische Entladung könnte das Gerät beschädigen.
o
