General information about the HomeMatic system

4 General information about the HomeMatic
system
This device is part of the HomeMatic home control system and works
with the bidirectional BidCoS
®
All devices are delivered in a standard configuration. The functionality
of the device can also be configured with a programming device and
software. The additional functions that can be made available in this
way and the supplementary functions provided by the HomeMatic sys-
tem when it is combined with other components are described in the
HomeMatic WebUI Manual.
All current technical documents and updates are provided in the down-
load area at www.homematic.com.
5

Start-up

5.1

Simple operating functions on the device

• Insert the wireless switch actuator into a socket.
The device is immediately ready for operation and can be taught-in to a
HomeMatic CCU (or to other HomeMatic devices).
Via the channel button (A), connected loads can be controlled (switch
on and off) with a short button press.
Before being able to use and configure your device in the HomeMatic
system, the switch actuator has to be taught-in first (see sec. „5.2 Tea-
ching-in" on page 8).
5.2

Teaching-in

Please read this entire section before starting the teach-in
procedure.
To integrate the switch actuator into your HomeMatic system and en-
able it to communicate with other HomeMatic devices (e.g. HomeMatic
8
wireless protocol.
remote control), you must teach it in first. You can teach-in the switch ac-
tuator directly to other HomeMatic devices or to the HomeMatic Central
Control Unit:
5.2.1

Teaching-in directly in to HomeMatic devices

If you want to teach-in the switch actuator to one or more HomeMatic
devices, the teach-in mode of both devices has to be activated first. To
do this, proceed as follows:
During teach-in, please make sure you maintain a distance of at
least 50 cm between the devices.

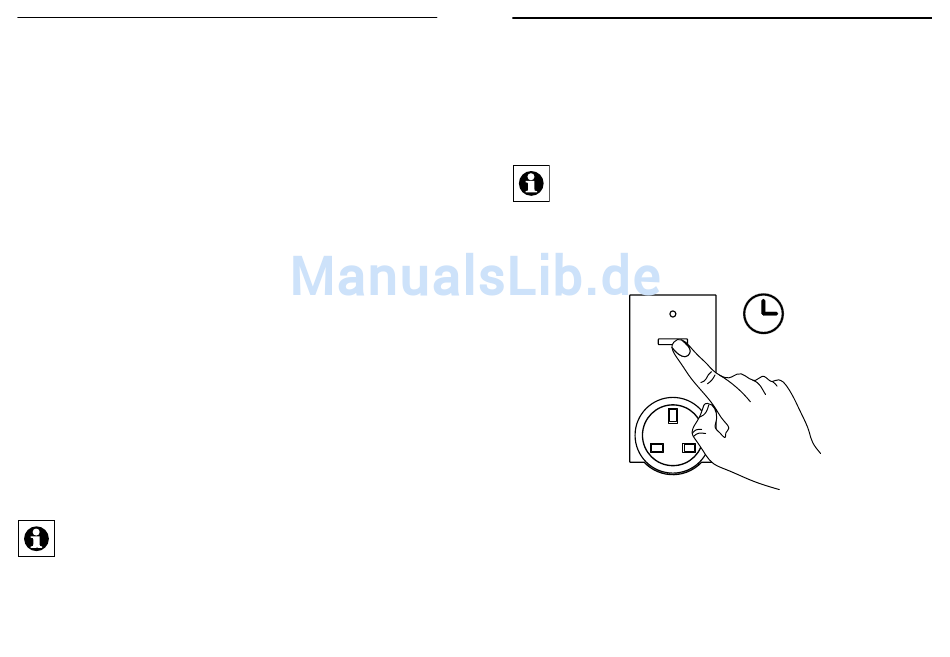

Activate the teach-in mode of your switch actuator.
• Therefore, press and hold the channel button (A) for at least 4 sec-
onds. The device LED (B) will flash slowly to indicate that teach-in
mode is active. The teach-in time is 20 seconds.
• Now put the device you wish to teach-in to the switch actuator
(e.g. HomeMatic remote control, see the following fig.) into teach-
in mode. Remove the battery compartment cover and press the
teach-in button briefly using a pointed object.
Start-up
> 4 s
