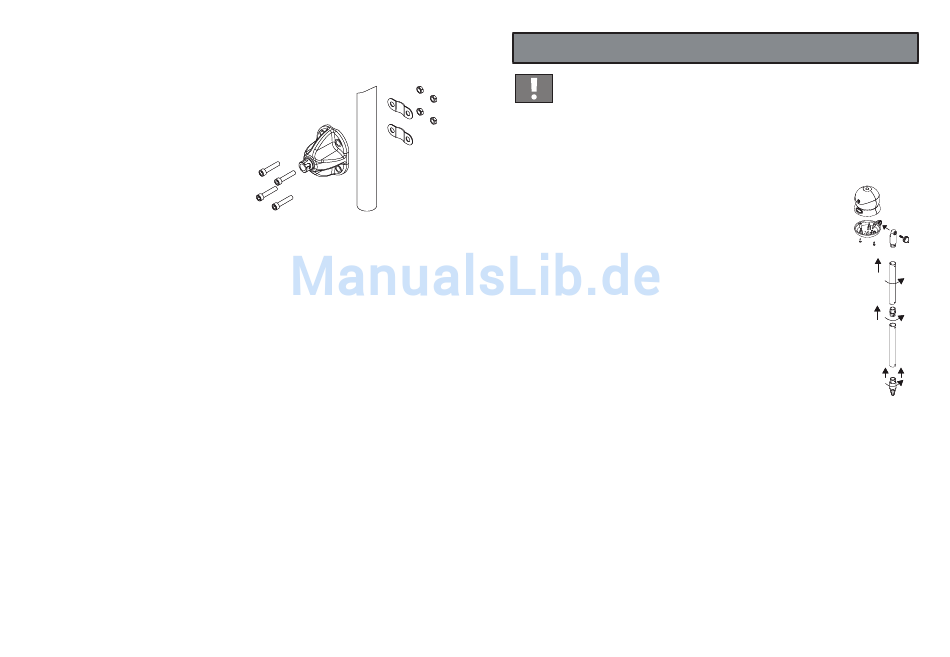

Mounting on a pole
1.
Mount the plastic stand (g) as shown in the sketch to the pole
(which could be either of the
two aluminium poles (e) or
another
pole
of
similar
diameter).
2.
Use the the fixing screws
(i) and the metal mounting
plates (k) for the assembly.
3.
Follow the steps "Assembly
& mounting on soil" for the
assembly
and
attach
last plastic connector (f) to
the plastic stand (g) through
clockwise rotation.
4.
Check the direction and alignment of the UV sensor and the
pole assembly and then tighten the screws to keep everything
securely in place.
Notes on wireless UV sensor location:
Position the UV sensor in an open area and consider the
maximum transmission range of 30 metres (100 feet). Please
bear in mind that the transmission range can be reduced by
interference from buildings, obstructions or a screen between
the UV sensor and the receiving unit (see "Intended Use").
Select an appropriate location where you desire to measure
the UV intensity. To get the maximum mid-day sunlight, you
should avoid placing the UV sensor in the shade. To measure
the immediate effect on human health, it is recommended to
mount the UV sensor in a way that its axis is aligned with the
sun's rays at solar noon. This maximises the mid-day readings
and provides what is probably a more accurate measurement
of the UV that people are exposed to. The angle-adjustable
bracket was designed for this purpose.
22
the
5. Positionnement / l'installation
Avant de monter l'appareil sur mur or surface de terrain,
rassurer vous d'évider la possibilité de casher de gaz, l'eau
et les files d'alimentation, qui cause dommage et puis les
dangéreus.
Assemblage et montage!
Assembly and mounting on soil:
1.
Monter le Stand support (b) avec le capteur (a) en
utilisant deux pettes viss (i).
2.
Connecter le ploe plastique(d) avec le Stand
support (b) et le fixer avec vis plastique nu (c).
3.
monter un de deux poles plastiques (e) avec poles
plastiques (d) par rotation file de cloche.
4.
monter un de deux poles plastiques (e) avec poles
plastiques (d) par rotation file de cloche.
5.
Attacher le second ploe aluminium (e) avec le
connecteur plastique (f) par rotation la file de
cloche.
6.
monter le tipe plastique (h) avec poles aluminium
(e) par rotation file de cloche.
7.
Monter assemblage - d'abord tip - dans terrain.
31
