Third Angle Projection
NOTES:
1. DEPTH INCLUDING CONNECTOR 115
615.6
CHALLENGER 22i FMO
FRONT VIEW
581
O
5.5
8.4
27.6 77.5 77.5 77.5 77.5 77.5
DETAIL OF PANEL COUT OUT AND DRILLING PATERN FOR 22" DISPLAY
Do Not Scale
SIDE VIEW
77.5 77.5 27.6
88
TO OTHER
DEVICES
TO POWERSUPPLY
TO TRANSMISSION
UNIT
1
FMO CUT OUT DETAILS ADDED
B 16.02.12 MJL
DIMENSION 88 WAS 89
A First issue 12.12.11 MJL
Iss. Description Date Name
Originator: MICK LOWMAN Sheet 1 of 1
Chkd: Scale: N/A
Date: 12.12.11
Tolerance: N/A
Title

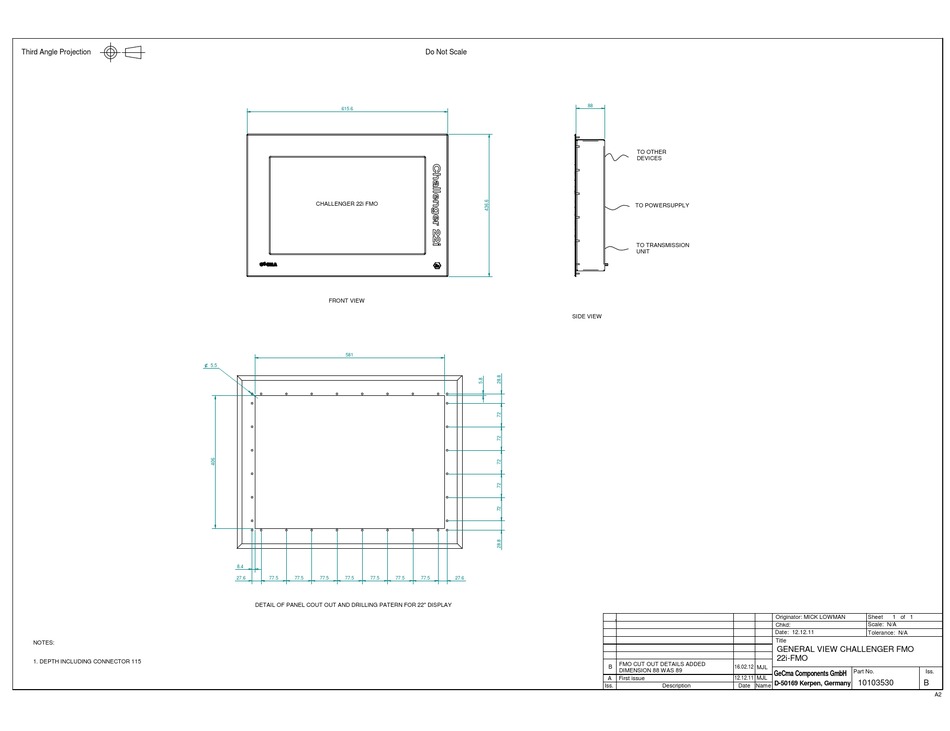

GENERAL VIEW CHALLENGER FMO
22i-FMO
Part No. Iss.
GeCma Components GmbH
10103530 B
D-50169 Kerpen, Germany
A2
