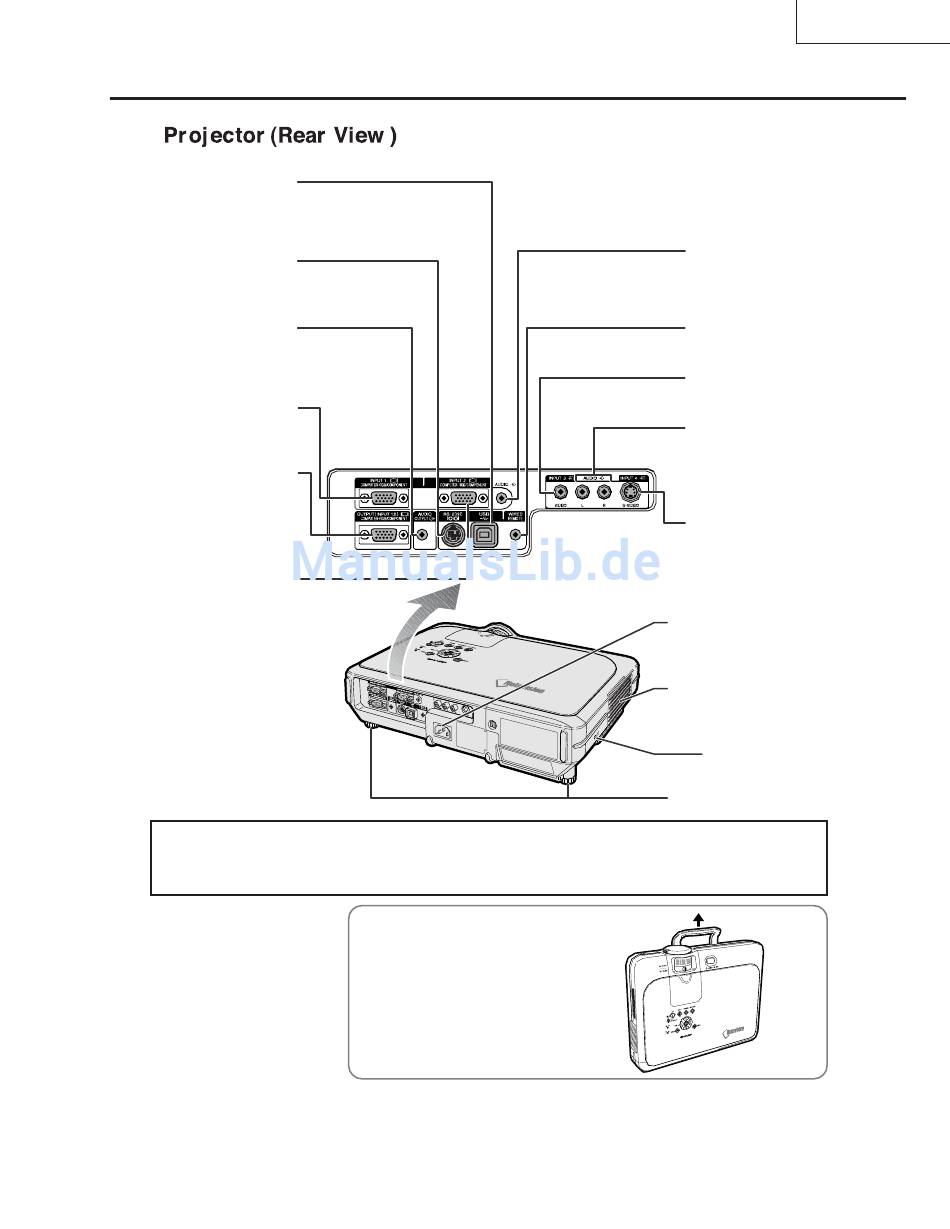

USB terminal
Terminal for
connecting a
computer using a
USB cable.
RS-232C terminal
For controlling
projector using a
computer.
AUDIO OUTPUT
terminal
Shared audio
output terminal for
INPUT 1, 2, 3 and 4.
INPUT 1 terminal
Terminal for
computer RGB and
component signals.
OUTPUT (INPUT 1, 2)
terminal
Shared computer
RGB and component
signals output
terminal
for INPUT 1 and 2.
INPUT 2 terminal
Terminal for
computer RGB and
component signals.
Using the Kensington Lock
•
This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
Carrying the pr o jector
Before carrying the projector, fully
extend the carrying handle.
9
XG-C58X
XG-C68X
AUDIO INPUT 1, 2
terminal
Shared audio input
terminal for INPUT 1
and 2.
WIRED REMOTE
control input
terminal
INPUT 3 terminal
For connecting
video equipment.
AUDIO (L/R)
INPUT 3, 4
terminals
Shared audio input
terminals for INPUT 3
and 4.
INPUT 4 terminal
Terminal for
connecting video
equipment with an
S-video terminal.
AC socket
Exhaust vent
Kensington Security
Standard connector
Adjustment Feet
