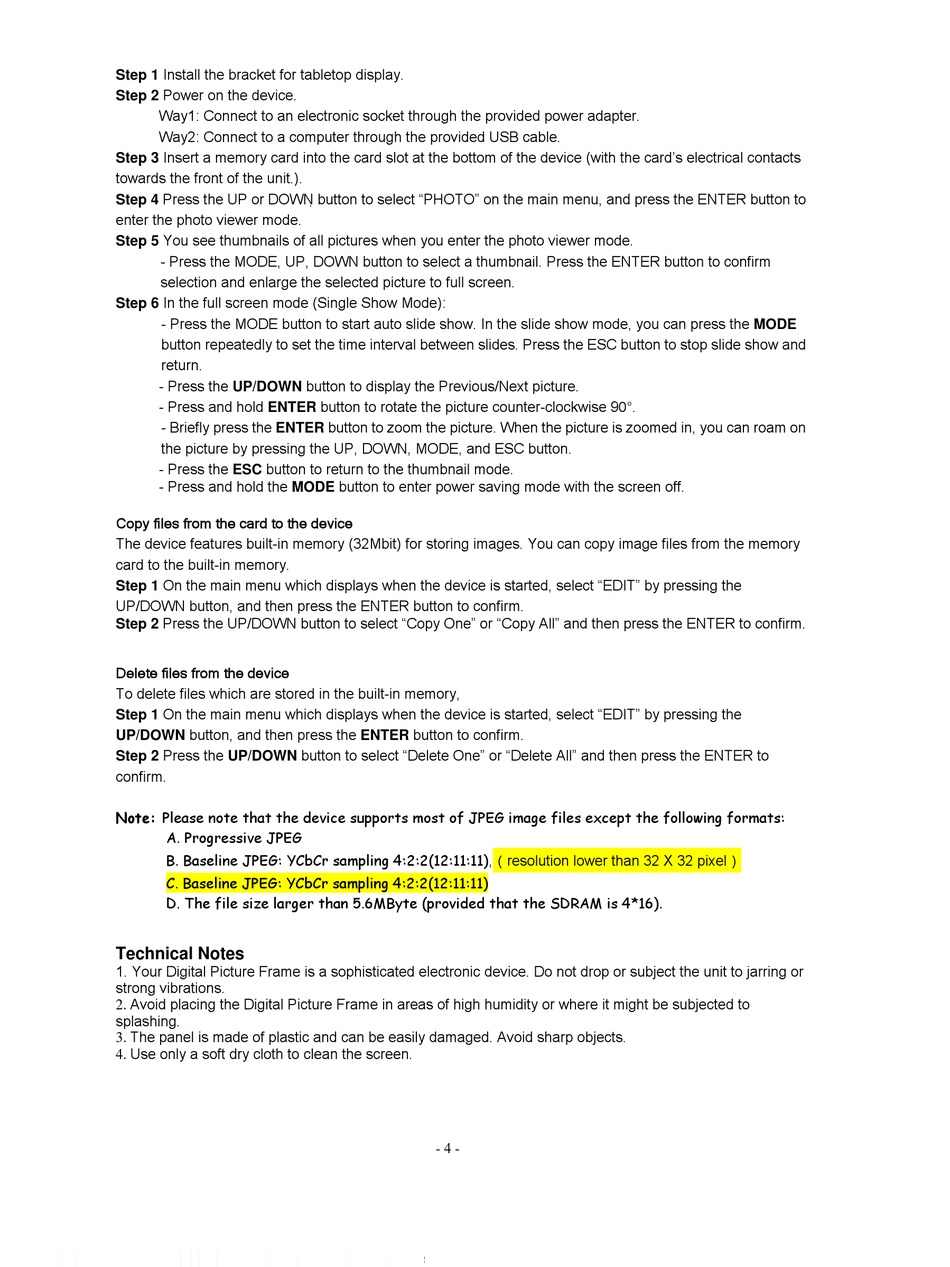

Copy Files From The Card To The Device; Delete Files From The Device; Technical Notes - Difrnce DPF-350 Handbuch

Step 1 Install the bracket for tabletop display.
Step 2 Power on the device.
Way1: Connect to an electronic socket through the provided power adapter.
Way2: Connect to a computer through the provided USB cable.
Step 3 Insert a memory card into the card slot at the bottom of the device (with the card's electrical contacts
towards the front of the unit.).
Step 4 Press the UP or DOWN  b utton to select "PHOTO" on the main menu, and press the ENTER button to
enter the photo viewer mode.
Step 5 You see thumbnails of all pictures when you enter the photo viewer mode.
- Press the MODE, UP, DOWN button to select a thumbnail. Press the ENTER button to confirm
selection and enlarge the selected picture to full screen.
Step 6 In the full screen mode (Single Show Mode):
- Press the MODE button to start auto slide show. In the slide show mode, you can press the MODE
button repeatedly to set the time interval between slides. Press the ESC button to stop slide show and
return.
- Press the UP/DOWN button to display the Previous/Next picture.
- Press and hold ENTER button to rotate the picture counter-clockwise 90°.
- Briefly press the ENTER button to zoom the picture. When the picture is zoomed in, you can roam on
the picture by pressing the UP, DOWN, MODE, and ESC button.
- Press the ESC button to return to the thumbnail mode.
- Press and hold the MODE button to enter power saving mode with the screen off.

Copy files from the card to the device

The device features built-in memory (32Mbit) for storing images. You can copy image files from the memory
card to the built-in memory.
Step 1 On the main menu which displays when the device is started, select "EDIT" by pressing the
UP/DOWN button, and then press the ENTER button to confirm.
Step 2 Press the UP/DOWN button to select "Copy One" or "Copy All" and then press the ENTER to confirm.

Delete files from the device

To delete files which are stored in the built-in memory,
Step 1 On the main menu which displays when the device is started, select "EDIT" by pressing the
UP/DOWN button, and then press the ENTER button to confirm.
Step 2 Press the UP/DOWN button to select "Delete One" or "Delete All" and then press the ENTER to
confirm.
Note: Please note that the device supports most of JPEG image files except the following formats:
A. Progressive JPEG
B. Baseline JPEG: YCbCr sampling 4:2:2(12:11:11),（resolution lower than 32 X 32 pixel）
C. Baseline JPEG: YCbCr sampling 4:2:2(12:11:11)
D. The file size larger than 5.6MByte (provided that the SDRAM is 4*16).

Technical Notes

1. Your Digital Picture Frame is a sophisticated electronic device. Do not drop or subject the unit to jarring or
strong vibrations.
2. Avoid placing the Digital Picture Frame in areas of high humidity or where it might be subjected to
splashing.
3. The panel is made of plastic and can be easily damaged. Avoid sharp objects.
4. Use only a soft dry cloth to clean the screen.
- 4 -
