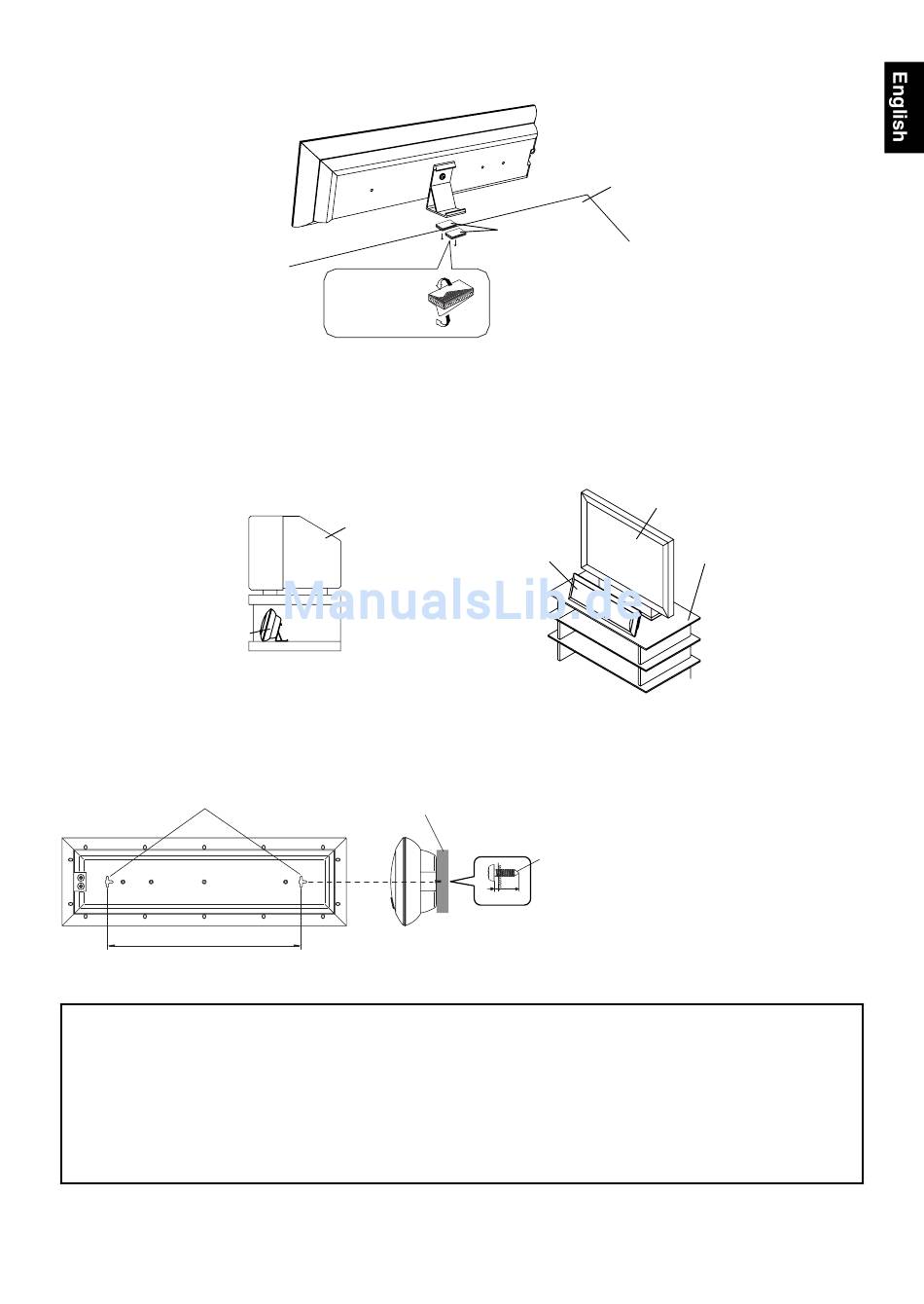

Table top mounting for the center speaker
Use the supplied fasteners to secure the speaker.
Notes
• Before attaching the fasteners to the TV rack, clean the surface with a dry cloth. A dirty or wet surface may
weaken the adhesive force and cause the speaker to fall.
• Do not touch the bonding surfaces of the fasteners after peeling off the seals. Doing so may weaken the
adhesive force and cause the speaker to fall.
Place the center speaker on top of the TV, under the TV, or inside a TV rack ensuring that it is stable.
Center speaker inside the
TV rack
Note
• Do not place the speaker on top of the TV. If placed, the speaker may drop out causing an injury to you.
Wall mounting for the center speaker
Use the key holes
412 mm (16-7/32")
WARNING:
• The speaker weights 3.6 kg (7.92 lbs). Do not mount them on thin plywood or a wall with soft surface
material. If mounted, the screws may come out of the flimsy surface and the speakers may fall. This
damages the speakers or causes personal injury.
• Do not fasten the speaker to a wall with nails, adhesives, or any other unstable hardware. Long-term use
and vibrations may cause them to fall.
• To avoid accidents resulting from tripping over loose speaker cables, fix them to the wall.
• Secure installation is the purchaser's responsibility.
Fastener
Peel off
the seal
TV set
Center speaker
Wall / wall support
Tapping screw
(Available at the
hardware store)
*a
*b
*a: Min 38 mm (1-1/2")
*b: 5.5 mm (7/32")
TV Rack
Flat TV
TV Rack
Fasten screws into a firm wall
or wall support as shown in the
figure, and hang the holes of
the rear of the speaker on the
Screw
protruding screws.
diameter
Make sure that the screws are
4~4.5 mm
securely caught by the narrow
(1/8"~3/16")
sections of the "key hole"
opening.
