Table of Contents
General
Safety Features
Electrical circuit diagrams
The current version of the operating manual con be found at:
www trotec com
Legal notice
This publication replaces all previous announcements No part of
this publication may be reproduced, processed using electronic
systems, replicated or distributed in any form, without our written
authorisation Subject to technical changes All rights reserved
Names of goods are used without guarantee of free usage keep-
ing to the manufacturer's syntax The names of goods used are
registered and should be considered as such We reserve the right
to modify design in the interest of on-going product improvement,
such as shape and colour modifications The scope of delivery
may vary from that in the product description All due care has
been taken in compiling this document We accept no liability for
errors or omissions © Trotec
General
Please read the introduction carefully before the initial
operation of the equipment. In the event of non-compli-
ance, any warranty claim becomes null and void. The
manufacturer is not responsible for damages or conse-
quential damages that may arise there from.
Portable design ID series warm air heater (WAH) for liquid fuels
for heating construction sites, tents, horticulture and agriculture
Standard design with axial fan or as a WAH equipped with radial
fan (R) with increased air output and increased discharge pres-
sure
Standard equipment includes: a standard control box, including
safety temperature controller, temperature controller and a MIN
thermostat
B - 9
Safety Features
B - 09
The integrated triple thermostat operates as three autonomous
B - 09
thermostats
B - 10
B - 10
B - 11
B - 11
B - 12
B - 13
B - 13
B - 14
B - 14
B - 15

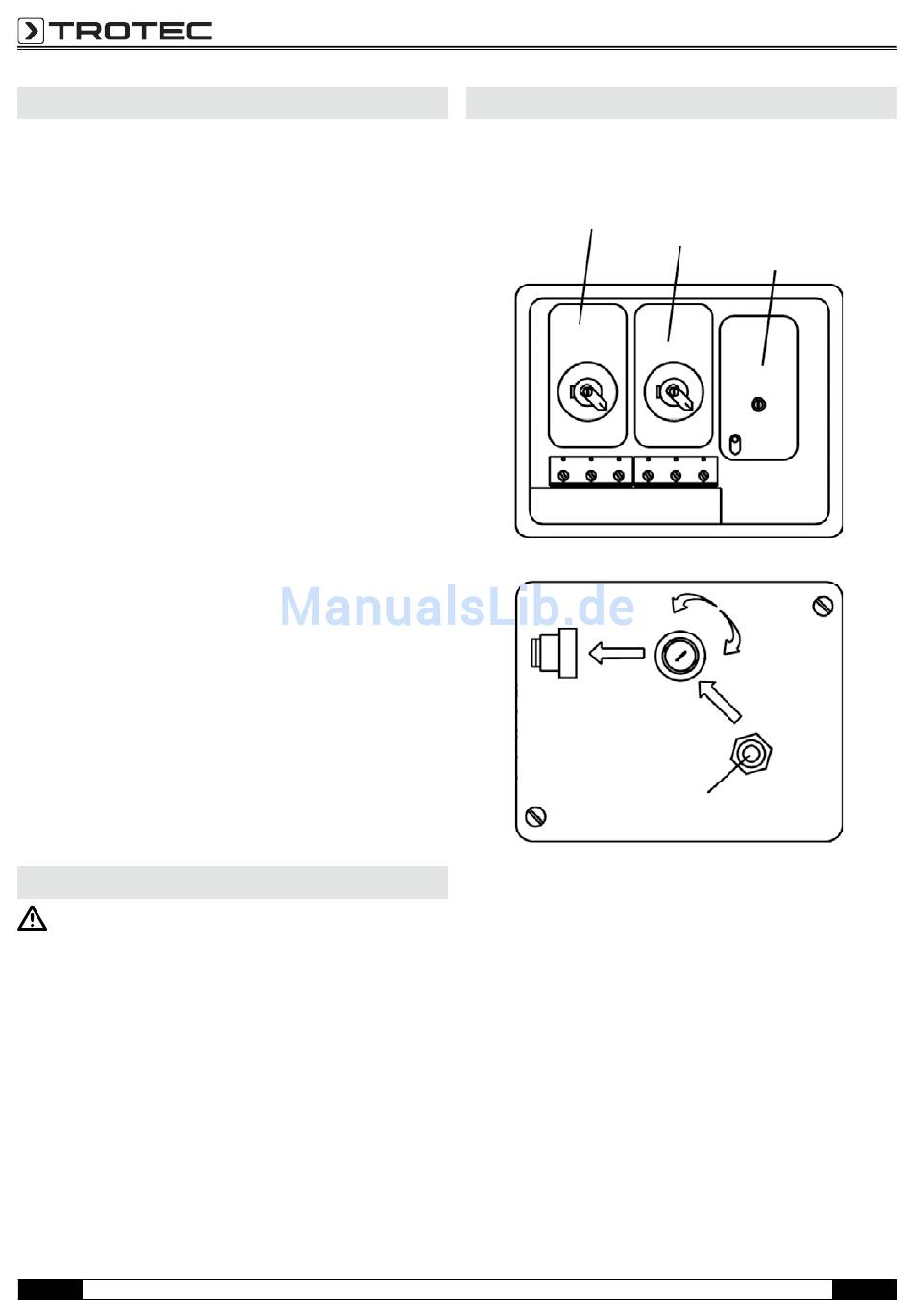

Triple Thermostat Inside View
Triple Thermostat Outside View
The MIN-Thermostat turns the fan on as soon as the burner has
heated the combustion chamber to the set temperature (default
setting approx 40 ºC)
When the heating process is completed, the fan continues to run
until the temperature is below the set temperature This func-
tion operates also when the selection switch for the fan is set
to the „O" position In this setting the fan can restart multiple
times in order to evacuate residual heat from the heat exchanger
The temperature controller (TC) shuts off the burner when the
temperature exceeds the set temperature (default setting approx
80 ºC) and restarts it when the temperature falls below the set
temperature
Operating manual - Öl heating unit ID 500 / 800
Mini-Thermostat
Temperature Limiter
loose
For unlocking screw
off the cap, press the
button and afterwards
screw the pac on again.
Safety Thermostat
Manual Reset
Safety Temperature
Limiter
tight
EN
