2.2.2
L

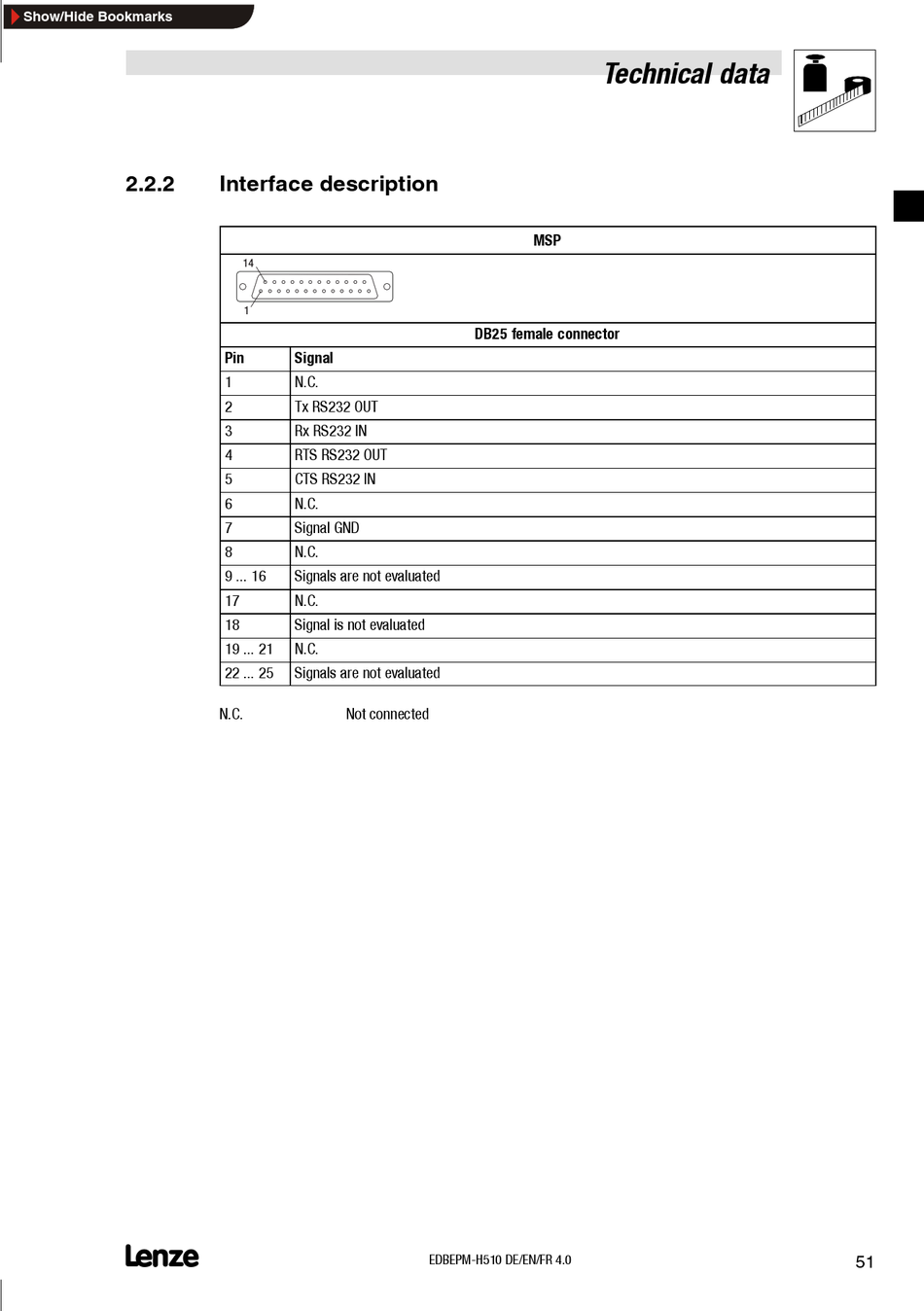

Interface description

14
1
Pin Signal
1 N.C.
2 Tx RS232 OUT
3 Rx RS232 IN
4 RTS RS232 OUT
5 CTS RS232 IN
6 N.C.
7 Signal GND
8 N.C.
9 ... 16 Signals are not evaluated
17 N.C.
18 Signal is not evaluated
19 ... 21 N.C.
22 ... 25 Signals are not evaluated
N.C. Not connected
Technical data
MSP
DB25 female connector
EDBEPM-H510 DE/EN/FR 4.0
51
