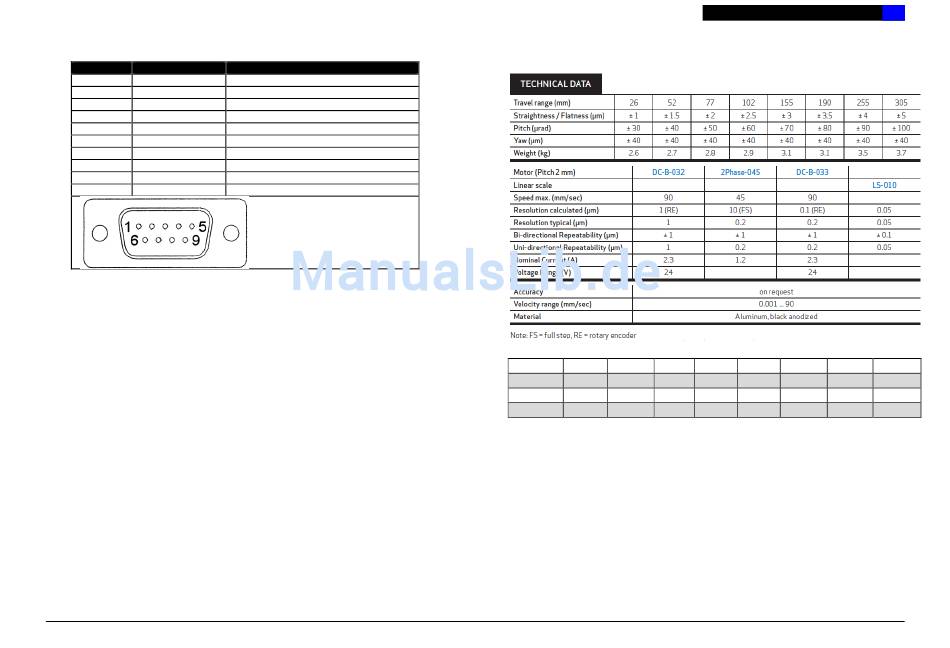

Linear Encoder DB9 1Vpp Pinout
DB9m Function
1 EA+ Encoder Channel A+ (sin+)
2 EB+ Encoder Channel B+ (cos+)
3 EI+ Encoder Channel I+ (Ref+)
4 EGND GND Supply Encoder
5 E5V Supply Encoder
6 EA- Encoder Channel A- (sin-)
7 EB- Encoder Channel B- (cos-)
8 EI- Encoder Channel I- (Ref-)
9 nc
Housing Shield Shield of encoder read-head

4.7.6 Technische Daten

Travel(mm) 26 52
A 112.5 125
B 225 250
C - -
www.pimicos.com // info@pimicos.com // phone:+49(0)7634-50 57 0 // fax:+49(0)7634-50 57 393
Lineartisch LS-110 13
77 102 155 190 255
137.5 150 180 180 215
275 300 360 360 430
- 250 250 300
305
240
480
350
