TUBE ULTRAGAIN MIC100 Bedienungsanleitung

4. Audioverbindungen

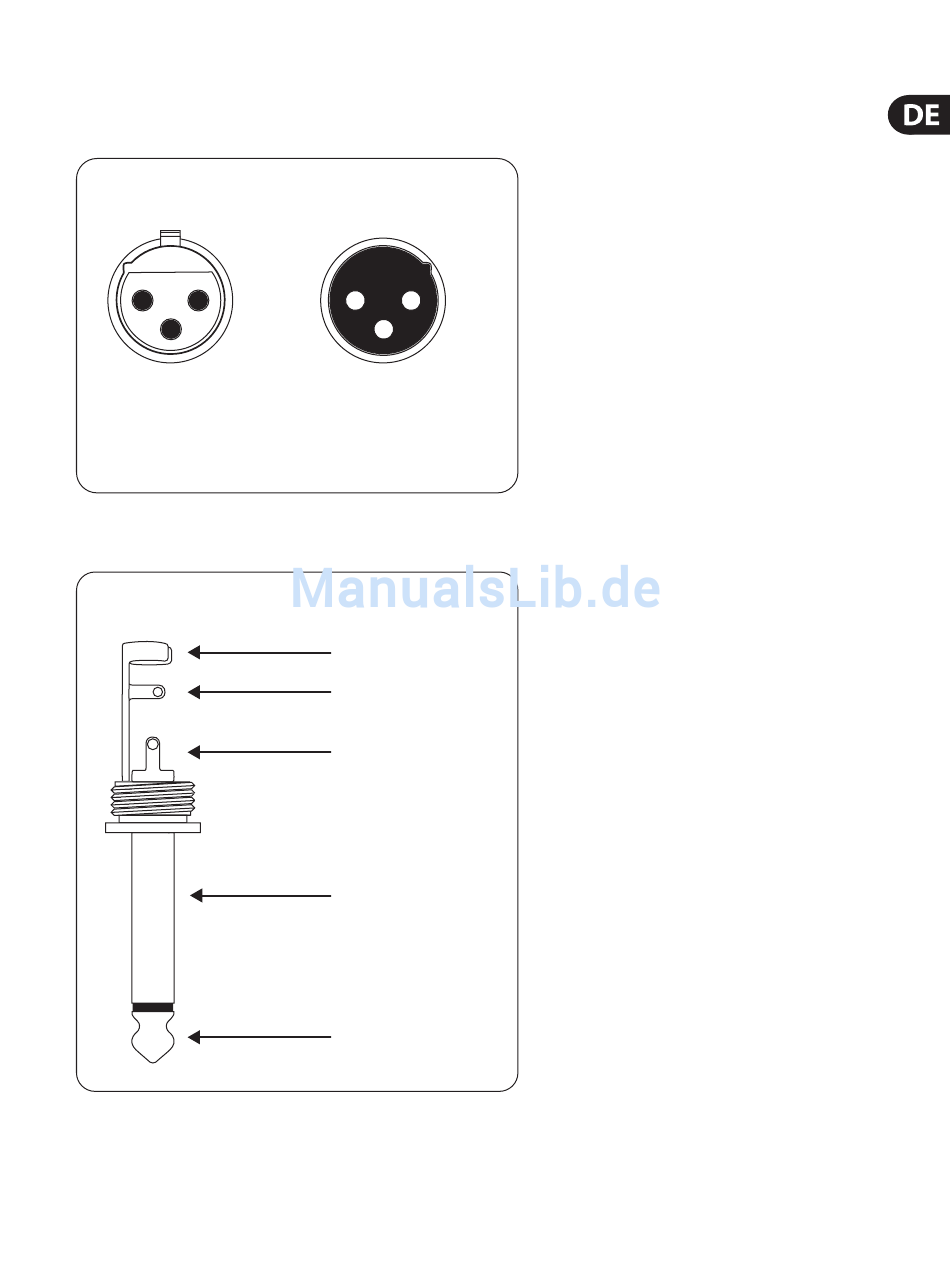

Balanced use with XLR connectors
2 1
3
input
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
Abb. 4.1: XLR-Verbindungen
Unbalanced ¼" TS connector
Abb. 4.2: 6,3-mm-Monoklinkenstecker
1 2
3
output
For unbalanced use,
pin 1 and pin 3
have to be bridged
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
tip
(signal)
