3.2 Connections and power supply

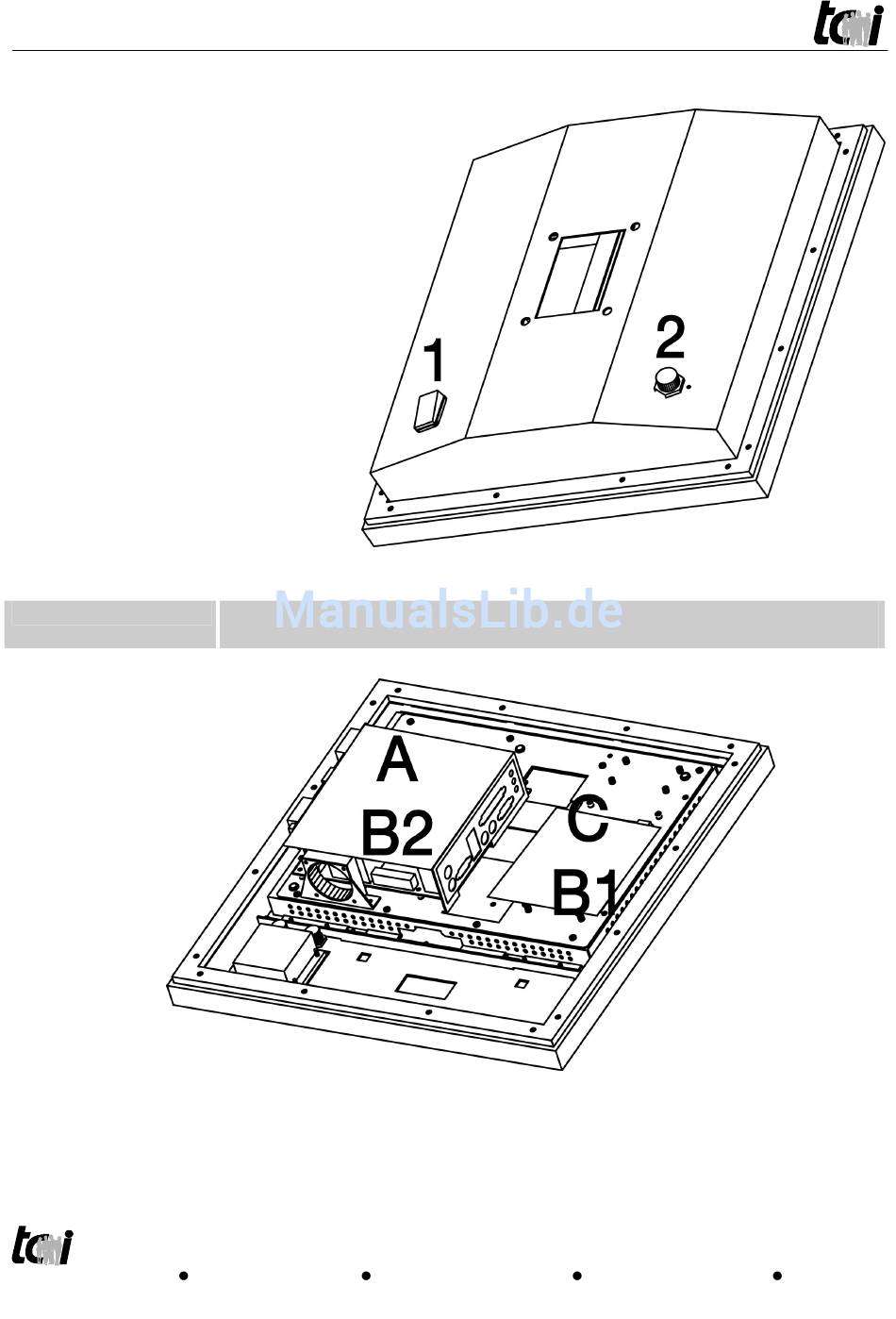

fig.1:
w/o fig.
Power supply cable
1:
On-/Off Switch
2:
USB connection
Entry
fig.2: chassis opened (please see 3.4)
A:
Motherboard, connection panel please see on site 17
B1:
HDD (T15-PC65/KB-VA)
B2
IDE Flash (T15-EOS/KB-VA)
C:
PreVision Control Hardware
w/o fig. Power supply of the single components with the internal powersupply
(integrated into the chassis cover)
Ludwig-Rinn-Str. 10-14
100/240 VAC, (internal power supply)
power consumption: 70W
D - 35452 Heuchelheim
Phone: +49-(0)641-96284-0
Fax: +49-(0)641-96284-28
www.tci.de
