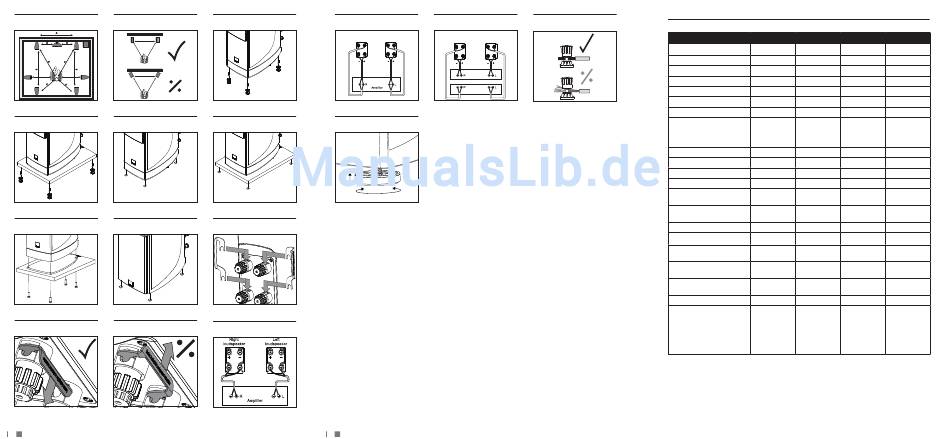

FIGURE 2C
FIGURE 3
X
X
FIGURE 4B
FIGURE 5A
FIGURE 5C
FIGURE 6
FIGURE 7B
FIGURE 7C
3
FIGURE 4A
FIGURE 7E
Right
Left
loudspeaker
loudspeaker
FIGURE 5B
FIGURE 9
FIGURE 7A
FIGURE 7D
4
FIGURE 7F
FIGURE 8
Right
Left
loudspeaker
loudspeaker
Amplifier
Amplifier
TABLE 2 - EPICON TECHNICAL SPECIFICATIONS
EPICON 8
EPICON 6
Frequency Range [+/- 3] dB [Hz]
35-30.000
35-30.000
Sensitivity [2.83V/1m] [dB]
89.0
88.0
Nominal Impedance [ohms]
5
5
Maximum SPL [dB]
112
110
Recommended Amp. Power [Watts]
50-500
50 - 300
Crossover Frequencies [Hz]
550/3.100/15.000
700/2.550/15.000
Crossover Principle
3+½-way
2½+½-way
High Frequency Driver
1 x 29 mm soft
1 x 29 mm soft
1 x 29 mm soft
dome
dome
1 x 10 x 55 mm
1 x 10 x 55 mm
ribbon
ribbon
Low Frequency/Midrange Driver(s)
2 x 8" / 1 x 6½"
2 x 6½"
Enclosure Type
Bass reflex
Bass reflex
Bass Reflex Tuning Frequency [Hz]
28.0
32.5
Connection Input(s)
Bi-wire / Bi-Amp
Bi-wire / Bi-Amp
Bi-wire / Bi-Amp
Recommended Placement
Floor
Floor
Recommended Distance from rear
>35
>25
wall to speaker's rear side [cm]
Magnetic Shielding
NO
NO
Dimensions (H x W x D) [mm]
1225 x 264 x 485
1025 x 232 x 441
386 x 214 x 366
Dimensions (H x W x D) [inches]
48.23 x 10.39 x
40.35 x 9.13 x
19.09
17.36
Dimensions with base (H x W x D)
1262 x 353 x 497
1062 x 320 x 459
[mm]
Dimensions with base (H x W x D)
49.69 x 13.90 x
41.69 x 12.60 x
[inches]
19.57
18.07
Weight [kg/lb]
47.5/104.7
30.0/65.7
Accessories
DALI SPIKE SET,
DALI SPIKE SET,
DALI TERMINAL
DALI TERMINAL
DALI TERMINAL
LINK SET,
LINK SET,
Polishing cloth,
Base plate,
Base plate,
Polishing cloth,
Polishing cloth,
Rubber feet,
Rubber feet,
Manual
Manual
All technical specifications are subject to change without notice.
EPICON 2
EPICON VOKAL
47-30.000
49-30.000
87.0
89.5
4
6
108
111
30-200
50-300
3.100
2.750/15.000
2-way
2+½-way
1 x 29 mm soft
dome
dome
1 x 10 x 55 mm
ribbon
1 x 6½"
2 x 6½"
Bass reflex
Bass reflex
43.0
46.5
Bi-wire / Bi-Amp
Stand
Stand/Below TV
screen
>25
>5
NO
NO
247 x 816 x 349
15.20 x 8.43 x
9.72 x 32.13 x
14.41
13.74
-
-
-
-
10.3/22.7
18.4/40.6
3 x Damper feet
LINK SET,
DALI TERMINAL
LINK SET,
Rubber feet,
Polishing cloth,
Manual
Manual
