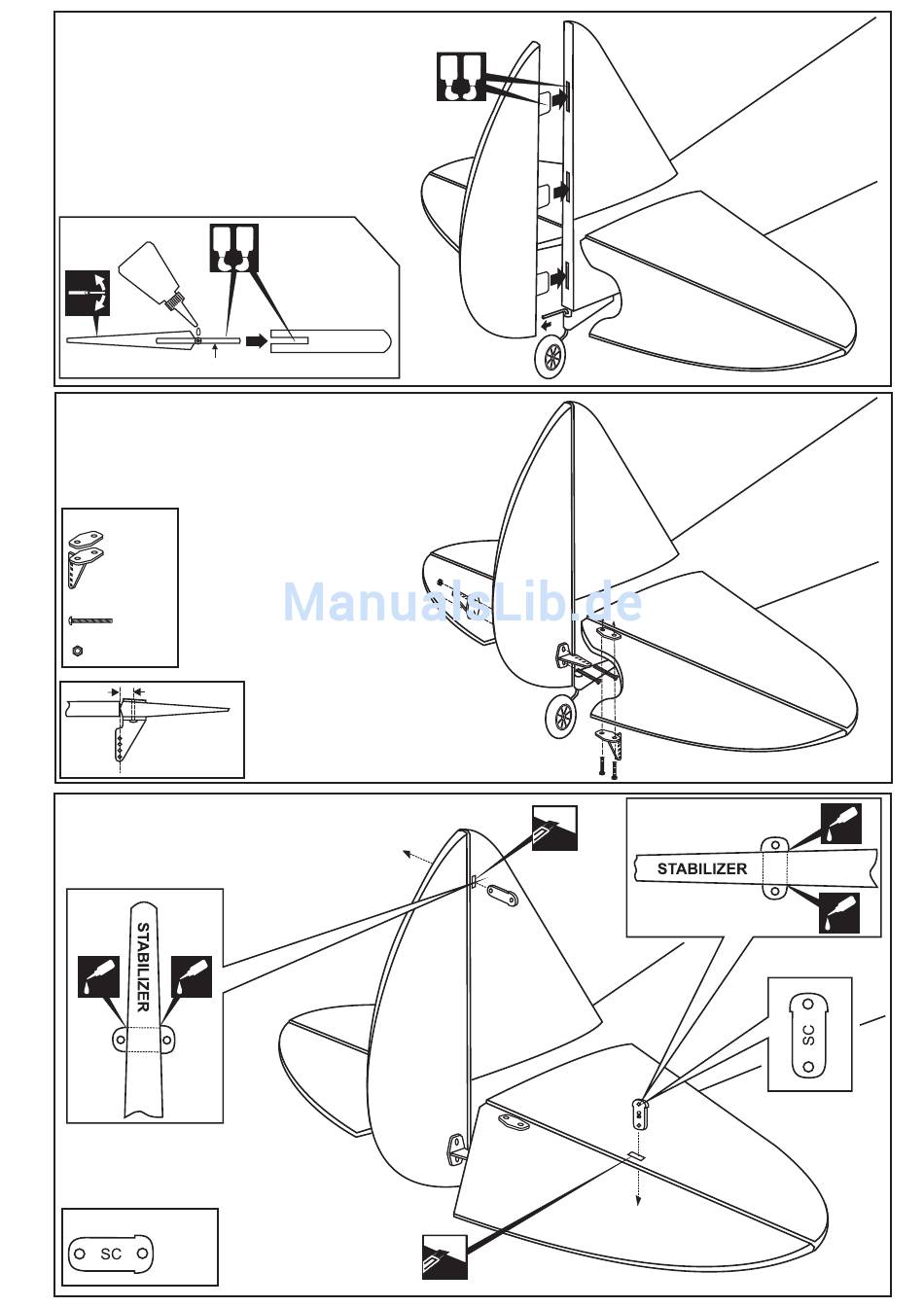

VQ Fly Baby Big Montageanleitung Seite 4

4
Apply a thin layer of machine oil or petroleum jelly
to only the pivot point of the hinges on the rudder,
then push the rudder and its hinges into the hinge
slots in the trailing edge of the vertical stabilizer.
There should be a minimal hinge gap.
When satisfied with the and alignment, hinge the
rudder to the vertical stabilizer using 5 minute
epoxy. Make sure to apply a thin layer of epoxy to
the left and right of both hinges and to inside the
hinge slots.
Petroleum jelly
A B
Hinge
5
Control horn
................4
2x30mm screw
..........6
2mm nut
................2
3/8 in. (9.5mm)
6
CA CA
3mm plywood
.........3
Apply 5 min.
Epoxy both the
top and bottom.
STABILIZER
Cut away only
the film both
side
A B
Cut away only
the film both
side
CA
CA
