VQ Fly Baby Big Montageanleitung Seite 3

1
O 90
90

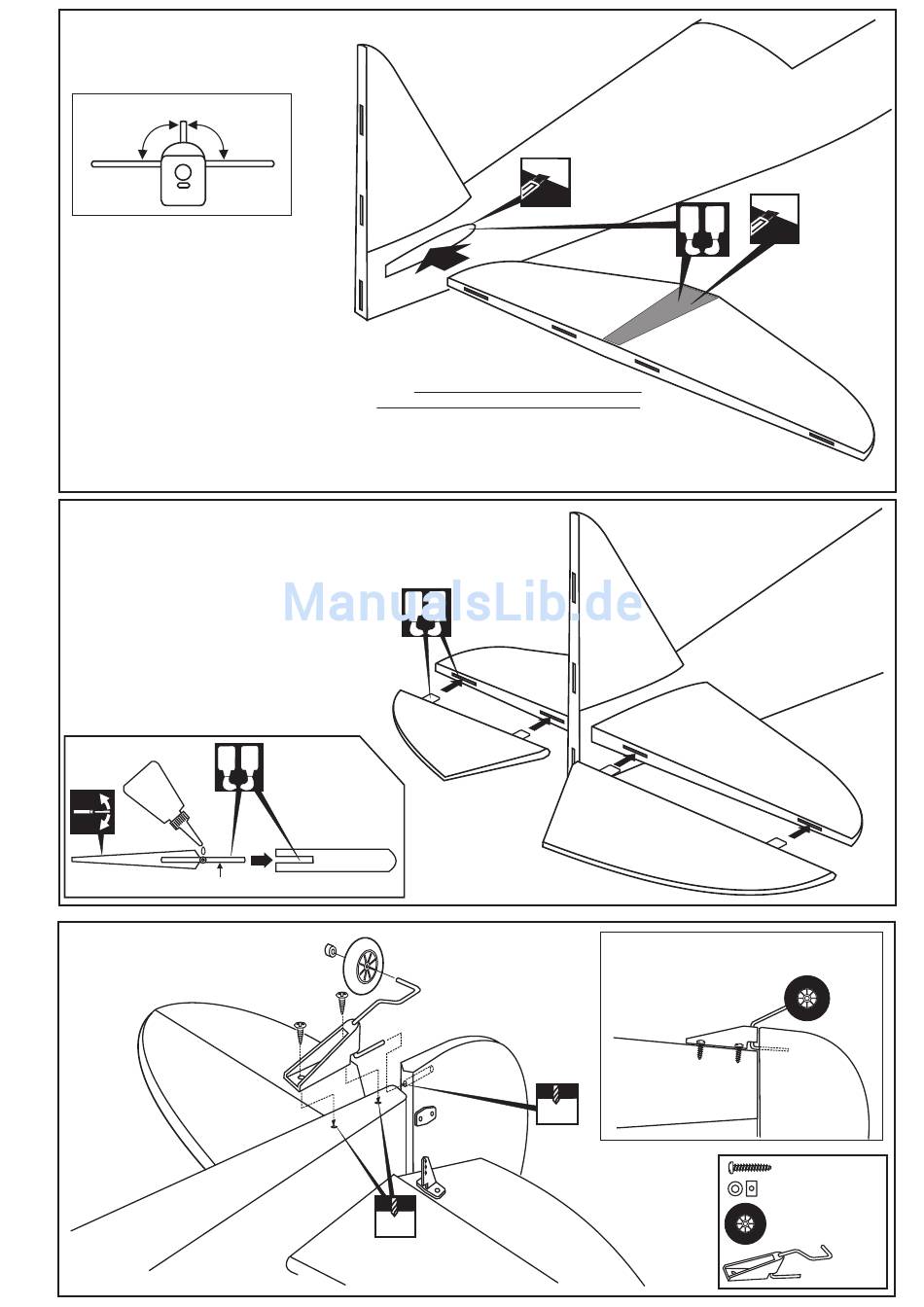

Trial fit the horizontal stabilizer before
gluing . Be certain that there are no gaps.
If the parts will join, but with a gaps, sand
or trim the parts a little at a time until the
parts meet exactly with no gaps.
When joining the stabilizer it is extremely
important to use plenty of epoxy (30 min.)
or CA glue (thin type).
Carefully slide the stabilizer into the fuselage,
ensuring that they are accurately aligned.
* WARNING: When removing any covering from the airframe,
please ensure that you secure the cut edge with CA or similar
cement. This will ensure the covering remain tight.
2
Apply a thin layer of machine oil or petroleum jelly
to only the pivot point of the hinges on the elevator,
then push the elevator and its hinges into the hinge
slots in the trailing edge of the horizontal stabilizer.
There should be a minimal hinge gap.
When satisfied with the and alignment, hinge the
elevator to the horizontal stabilizer using 5 minute
epoxy. Make sure to apply a thin layer of epoxy to
the top and bottom of both hinges and to inside the
hinge slots. Repeat the previous procedures to
hinge the second elevator to the other side of the
horizontal stabilizer.
Petroleum jelly
A B
Hinge
3
BOTTOM - VIEW
Unteransicht
1/8(3mm) screw
TOP VIEW / Draufsicht
O
Note: Slide the horizontal stabilizer into the
fuselage from the right to the left as shown.
TOP VIEW / Draufsicht
A B
Apply 5 min.
Epoxy both the
top and bottom.
STABILIZER
Collar
1/16
1.5mm
Cut away only
the film both
side
! Securely glue together If coming off during fly,
you lose control of your air plane.
FUSELAGE
5/64
2mm
A B
Cut away only
the film both
side
