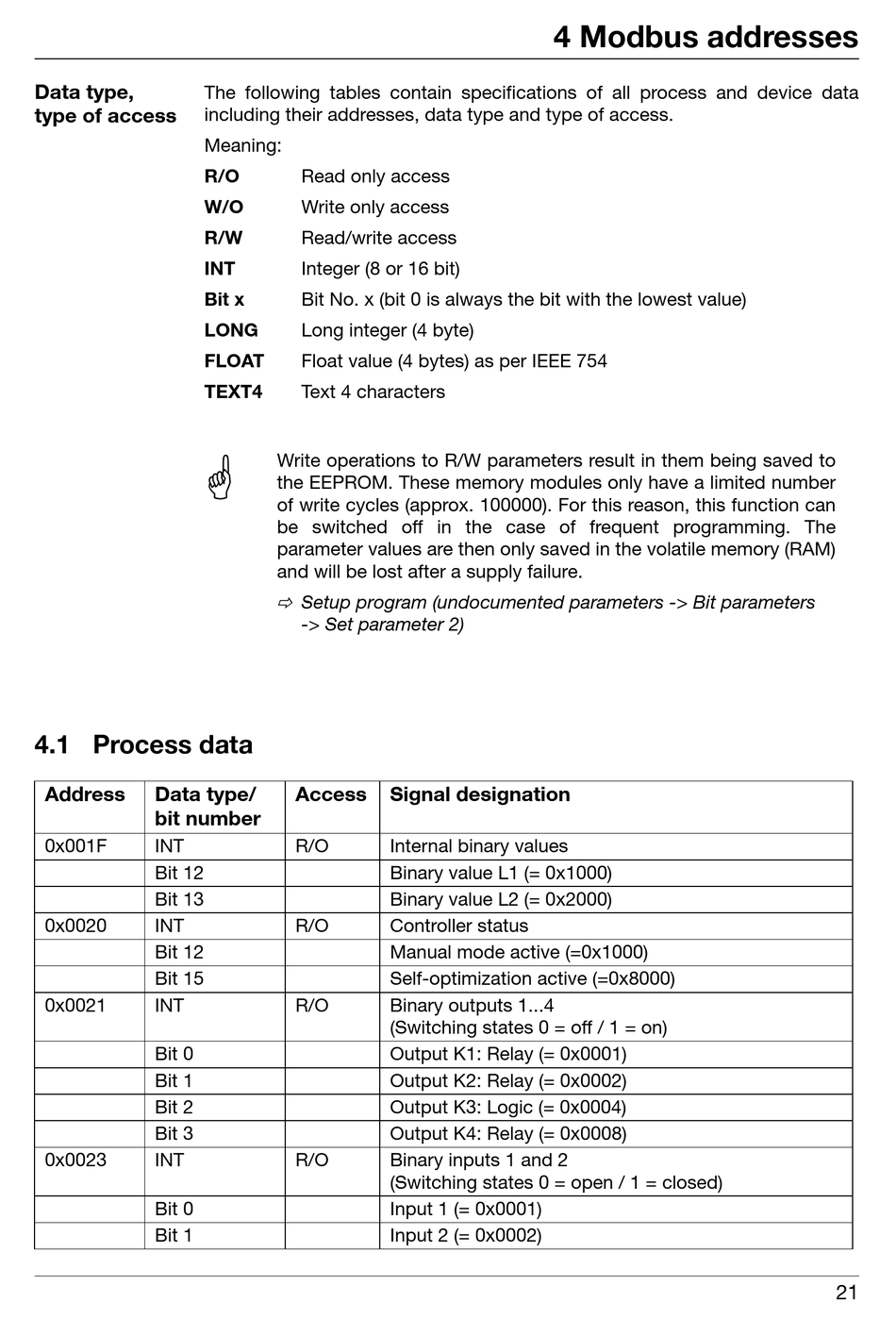

Modbus Addresses; Process Data - DigiTrace TCONTROL-CONT-03 Anleitung

Data type,
type of access

4.1 Process data

Address Data type/
bit number
0x001F INT
Bit 12
Bit 13
0x0020 INT
Bit 12
Bit 15
0x0021 INT
Bit 0
Bit 1
Bit 2
Bit 3
0x0023 INT
Bit 0
Bit 1
The following tables contain specifications of all process and device data
including their addresses, data type and type of access.
Meaning:
R/O Read only access
W/O Write only access
R/W Read/write access
INT Integer (8 or 16 bit)
Bit x Bit No. x (bit 0 is always the bit with the lowest value)
LONG Long integer (4 byte)
FLOAT Float value (4 bytes) as per IEEE 754
TEXT4 Text 4 characters
A
Write operations to R/W parameters result in them being saved to
the EEPROM. These memory modules only have a limited number
of write cycles (approx. 100000). For this reason, this function can
be switched off in the case of frequent programming. The
parameter values are then only saved in the volatile memory (RAM)
and will be lost after a supply failure.
v
Setup program (undocumented parameters -> Bit parameters
-> Set parameter 2)
Access
R/O
R/O
R/O
R/O

4 Modbus addresses

Signal designation
Internal binary values
Binary value L1 (= 0x1000)
Binary value L2 (= 0x2000)
Controller status
Manual mode active (=0x1000)
Self-optimization active (=0x8000)
Binary outputs 1...4
(Switching states 0 = off / 1 = on)
Output K1: Relay (= 0x0001)
Output K2: Relay (= 0x0002)
Output K3: Logic (= 0x0004)
Output K4: Relay (= 0x0008)
Binary inputs 1 and 2
(Switching states 0 = open / 1 = closed)
Input 1 (= 0x0001)
Input 2 (= 0x0002)
21
