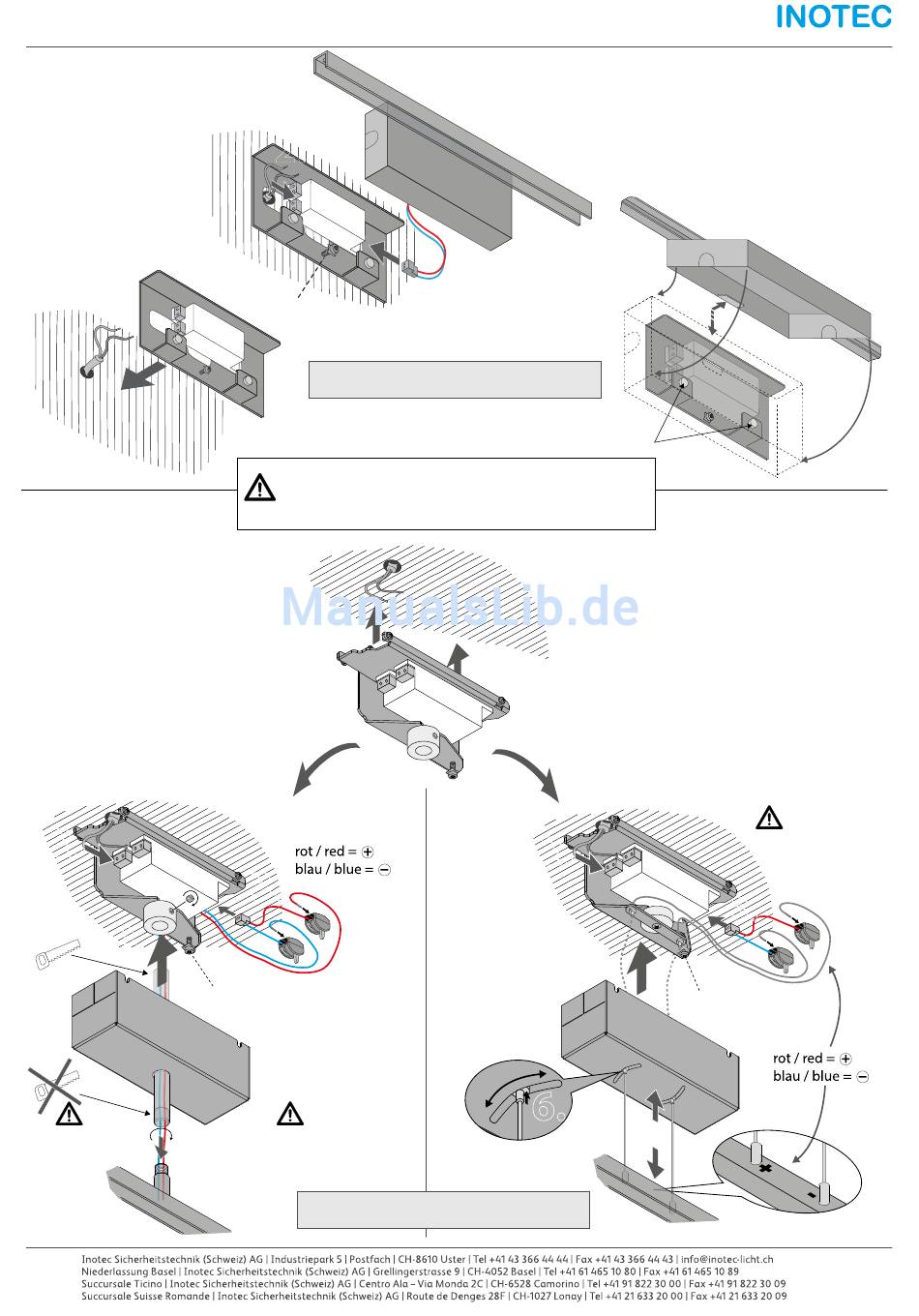

Montage / Masse:
SNP 8100 W... Parallele Wandmontage
SNP 8100 W... Parallel to wall mounting
1.
SNP 8100 P... Pendelmontage
SNP 8100 P... Pendulum mounting
2.
4.
PE (230V Version)
5.
6.
Mounting / Fixing details:
2.
PE (230V Version)
Weiter mit Punkt 6. „Montage Piktogrammscheibe"
Go to step 6 „Assembly picto panel"
Hinweise zur elektrischen Montage entnehmen Sie der beiligenden
Betriebsanleitung des entsprechenden Versorgungsgerätes!
Please read the user manual of the corresponding supply unit before
electrical installation!
3.
Polung beachten!
Check polarity!
Weiter mit Punkt 6. „Montage Piktogrammscheibe"
Go to step 6 „Assembly picto panel"
3.
1.
2.
6.
A. Die Leuchte oben in das Gehäuseunterteil einrasten.
B. Nach unten klappen und andrücken, bis das Gehäuse
durch die Magnete angezogen wird.
A. The lamp must slot into the top of the housing base
B. Flapping it downwards and pressing it until the housing
is attracted by the magnets.
4.
A.
Magnete
Magnets
SNP 8100 S... Seilmontage
SNP 8100 S... Cable mounting
Polung beachten!
Check polarity!
3.
4.
PE (230V Version)
5.
B.
2 / 3
