ENGLISH
Battery Installation – See Battery Installation Diagram
• 3 AAA
• Alkaline (LR03)
• Rechargeable NiCad or NiMH
Princeton Tec cares about the environment and
recommends recycling batteries. For more information
about battery recycling, please go to: www.batteryrecy-
cling.com

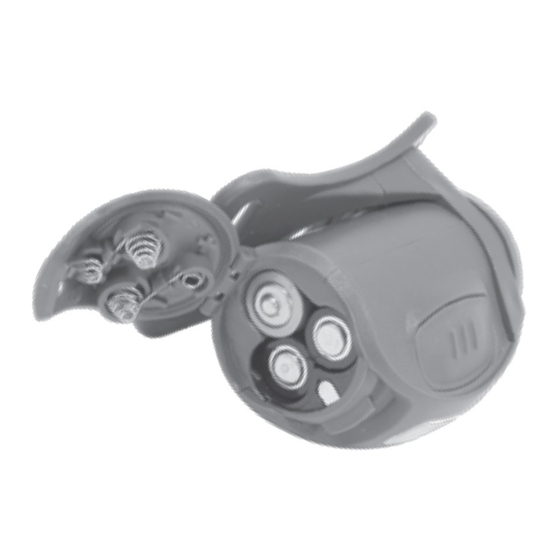

To install the batteries, use the tool on the headband to
unlatch the door. Open the Fuel case by popping the
door latch over the catch and rotate the door open.
Install three AAA batteries according to the polarity
markings on the inside of the cabinet. Observe proper
battery polarity when installing the batteries. Improper
installation of the batteries will damage the light and
void the warranty.
Rotate the door to the closed position, squeeze the
body between your forefingers and thumb to snap the
door latch over the catch.
WARNING
• Never mix fresh and used batteries.
• Never mix different battery brands or chemistry
types.
• Always remove drained batteries immediately.
• Remove batteries during long periods of storage.
NOTE: Rechargeable NiCad or NiMH batteries may
result in reduced brightness due to lower nominal
voltage.
Switch Operation – See Switch Operation diagram
The Fred has two light sources to choose from, one
red Ultrabright LED or 3 white Ultrabright LEDs. Each
light source has two modes (High and Low).
• To switch between the Red LED and the 3 white
LEDs -Press and hold the button until the light source
changes. Release the button when the appropriate
source is lit. The light will remain on this LED source
(allowing you to cycle though the modes) until you
decide to change it.
• Modes (High and Low) are selected by pressing
and releasing the button within 1.5 seconds of the
previous button press. If more than two seconds has
passed since the previous button press the next
press will turn the light off.
• There are two ways to turn the Fred off. You can
cycle through the modes until you reach off, or if the
light has been on for more than two seconds the next
button press will turn the light off.
• Note about changing batteries for lights with Red or
Green 5mm Ultrabright: To ensure the Ultrabright LEDs
turn on first, remove the old batteries, press and hold
the button down for three seconds to discharge the
capacitor on the circuit. Install the new batteries and
close the battery door. The light will now default to the
Ultrabright turning on first.
**The times listed on the rear of the package assume
you have start with fresh batteries and use only one
mode.
Power Consumption
Refer to the burn time chart for performance data for
different battery types and mode settings.
**Princeton Tec calculates total burn time as the time it
takes for the light source to produce a minimum of 0.25
lux at 2 meters. 0.25 lux is about the equivalent of a full
moon on a clear night.
Figure 1 – Switch Operation
press 1x = Low
press 2x = High
1 RED
Ultrabright LED
to switch between light
sources, press and hold
button (1-2 seconds)
press 1x = Low
press 2x = High
3 Ultrabright
* Princeton Tec calculates total burn time as the time it takes for the light source to produce a
minimum of 0.25 lux at 2 meters. 0.25 lux is about the equivalent of a full moon on a clear night.
* Princeton Tec berechnet die Gesamtbrenndauer bezogen auf eine von der Stirnlampe erzeugte
minimale Beleuchtungsstärke von 0,25 Lux in 2 Meter Abstand. 0,25 Lux entsprechen in etwa
der Beleuchtungsstärke des Vollmonds in einer klaren Nacht.
* Princeton Tec définit la durée totale d'éclairage comme le temps nécessaire à la source
lumineuse pour produire un minimum de 0,25 lux à 2 mètres. 0,25 lux équivaut à peu près à la
luminosité d'une pleine lune dans un ciel nocturne dégagé.
Figure 2 – Battery Replacement
1
Use tool on headstrap to open battery compartment
Utilisez l'outil attaché à la sangle de la frontale pour
ouvrir le compartiment des piles.
Verwenden Sie zum Öffnen des Batteriefachs das
am Kopfband befestigte Werkzeug.
3
**The times listed in this chart assume you start with
fresh batteries and use only one mode.
Troubleshooting
If the Fred fails to light:
• Check the batteries for proper installation.
• Replace batteries if proper installation is confirmed.
• Check the light for water contamination on the
circuit board. The light will resume normal
operation once the water is shaken or blown out
and the light is left open until completely dry. If the
light has been contaminated with salt water, flush
the unit with fresh water and dry as described
above.
USA– International 5-Year Warranty
WARRANTY – Princeton Tec warrants this product to
be free from defects in workmanship and materials
under normal use for 5 years from the date of purchase
This warranty covers all of the component parts of the
product except batteries. This warranty does not cover
deterioration due to normal wear or damage due to
misuse, alteration, negligence, accidents, or
unauthorized repair. Princeton Tec will repair or replace
parts which are defective in workmanship or materials.
Your authorized Princeton Tec Dealer and Princeton
Tec are the only facilities authorized to repair the
product. After (3) unsuccessful attempts (within the
warranty period) to repair the product, you have the
right to elect replacement of the product or a refund of
the purchase price less allowance for use of the
product. NO INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARE INCLUDED IN THIS WARRANTY.
(Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above
limitations or exclusions may not apply to you.) This
Opération de commutation
LOW
HIGH
180H
100H
6 14
DISTANCE (Meters)
120H
LOW
LEDs
DISTANCE (Meters)
12
Remplacement des piles
2
4
warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Princeton Tec reserves the right to change product
specifications without notice.
FOR CALIFORNIA RESIDENTS:
WARNING: This product contains Bisphenol A (BpA) a
chemical known to the State of California to cause birth
defects or other reproductive harm.
Return Policy
If your light fails to operate, follow these simple steps:
1. Check batteries. Replace if necessary.
2. To send your light in for repair or replacement, first
contact Princeton Tec customer service on
1-800-257-9080 to request an RMA number. Please
have your light model, date of purchase and a brief
description of the fault you are experiencing. No
warranty repairs will be accepted without an RMA
number.
3. Return the light without batteries to: Princeton Tec,
PO Box 8057 Trenton NJ 08650. Postage due and
freight collect items will not be accepted.
4. Upon receipt your light will be processed in about
two weeks. Please allow additional time for return
transportation from NJ.
Princeton Tec
PO Box 8057,
Trenton, NJ 08650
Phone: 609-298-9331
Fax: 609-298-9601
www.princetontec.com
© 2018 Princeton Tec
Betriebsartenschalter
15 23
35
74H
HIGH
35
Einlegen der Batterien
35
