GB

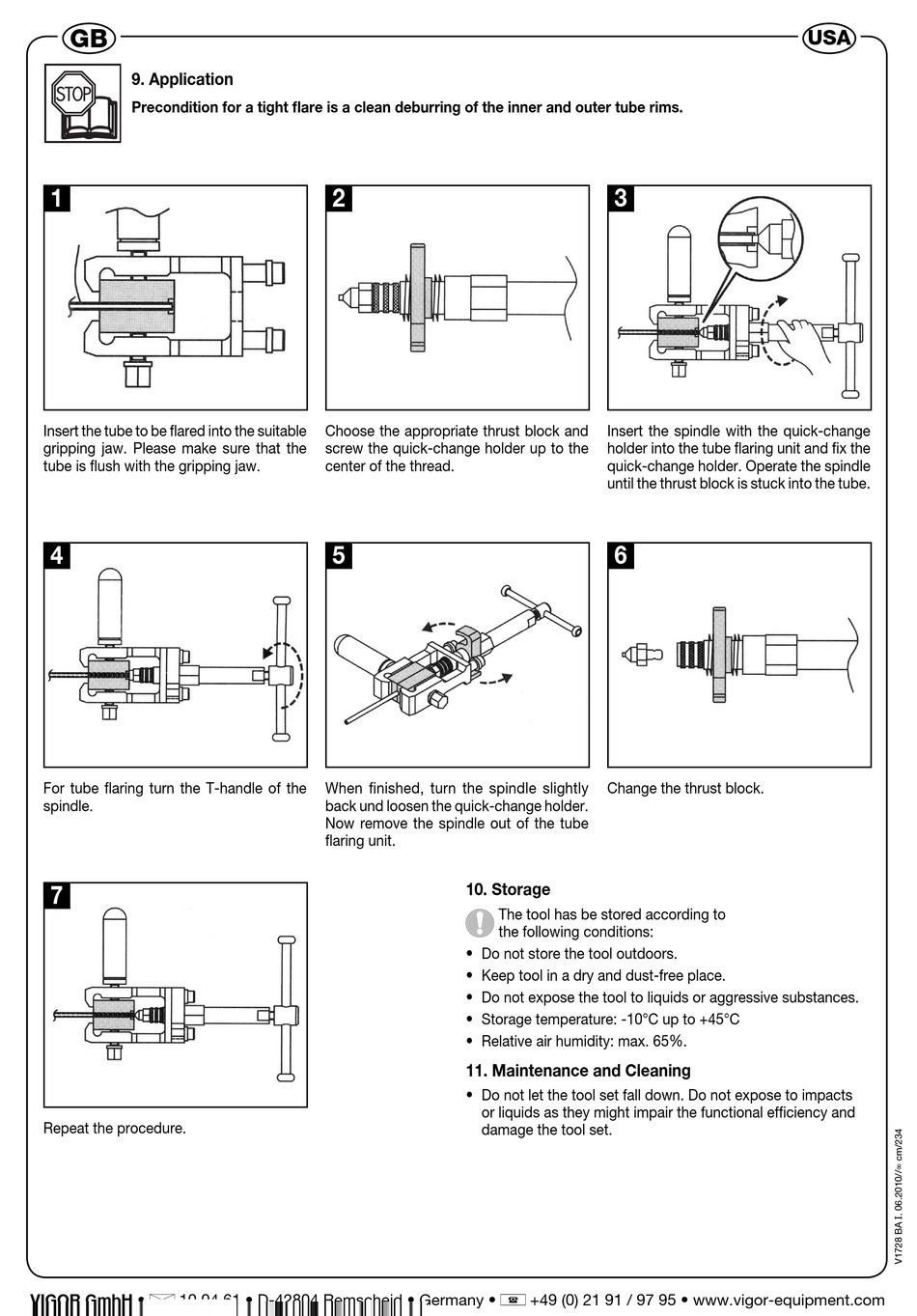

9. Application
Precondition for a tight fl are is a clean deburring of the inner and outer tube rims.
1
Insert the tube to be fl ared into the suitable
gripping jaw. Please make sure that the
tube is fl ush with the gripping jaw.
4
For tube fl aring turn the T-handle of the
spindle.
7
Repeat the procedure.
VIGOR GmbH • } 10 04 61 • D-42804 Remscheid • Germany • [ +49 (0) 21 91 / 97 95 • www.vigor-equipment.com
2
@
Choose the appropriate thrust block and
screw the quick-change holder up to the
center of the thread.
5
@
£
When fi nished, turn the spindle slightly
back und loosen the quick-change holder.
Now remove the spindle out of the tube
fl aring unit.
3
"
Insert the spindle with the quick-change
holder into the tube fl aring unit and fi x the
quick-change holder. Operate the spindle
until the thrust block is stuck into the tube.
6
"
fi
Change the thrust block.
10. Storage
The tool has be stored according to
the following conditions:
• Do not store the tool outdoors.
• Keep tool in a dry and dust-free place.
• Do not expose the tool to liquids or aggressive substances.
• Storage temperature: -10°C up to +45°C
• Relative air humidity: max. 65%.
11. Maintenance and Cleaning
• Do not let the tool set fall down. Do not expose to impacts
or liquids as they might impair the functional effi ciency and
damage the tool set.
