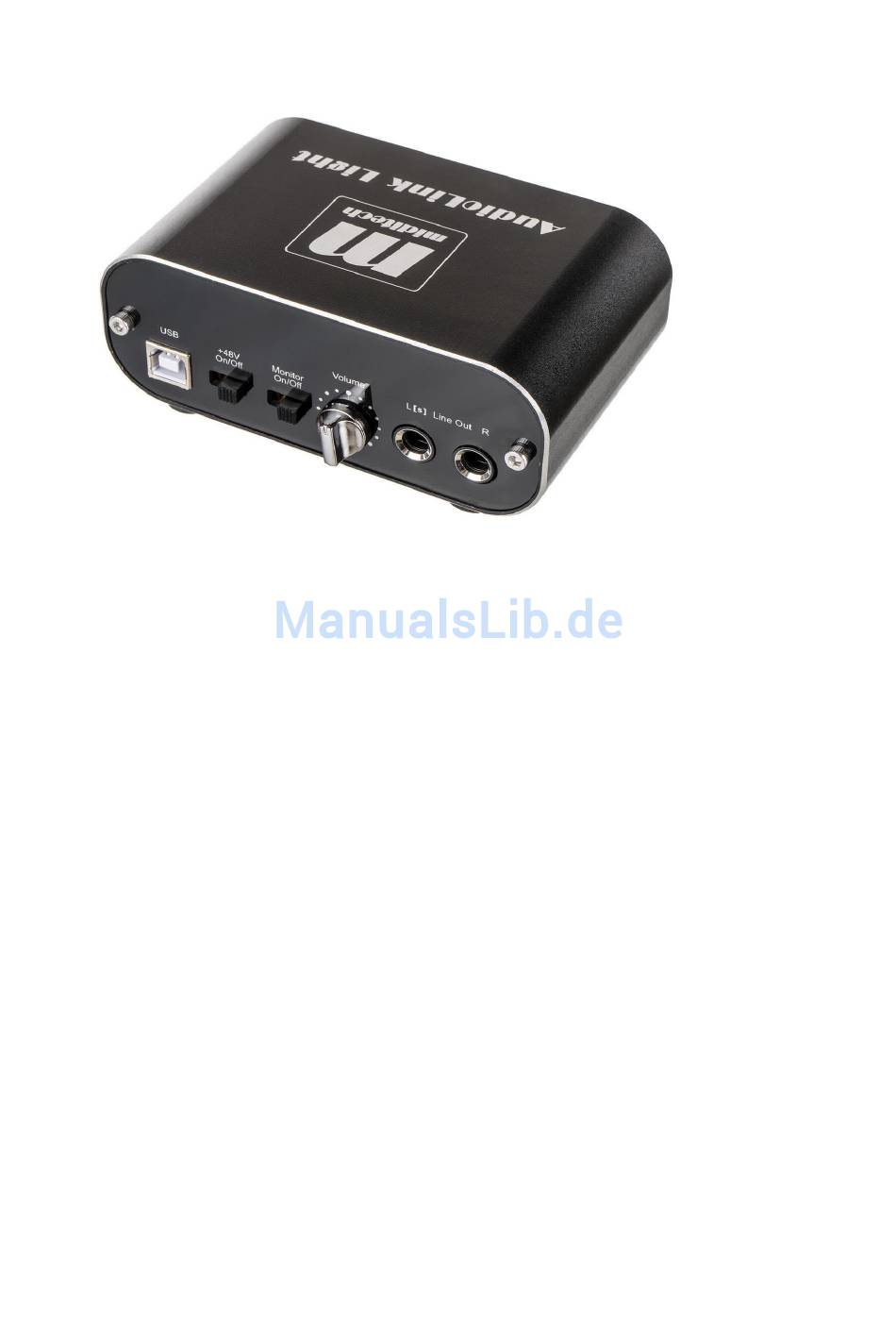

Rear panel
LINE OUT output level control
This level control regulates the level of the output signal for the Line out, and if the left side is used
alone, for the stereo headphone level.
USB Jack
This jack connects the Audiolink to your computer, using a USB 1.1 (or higher) connection.
Monitor switch
This switch routes the signal from the Inputs directly to the Outputs, so that the signal has no
latency.
+48V Phantom power switch
Switch this to select between microphones with or without phantom power (dynamic and
condensator microphone) at channel 1.
LINE Output (stereo)
These unbalanced RCA output the signal, which is output from your computer and should be
connected to a pair of powered speakers, a mixer or a stereo receiver.
Connection and operating devices:
The product case is printed with all relevant information! There are one XLR Mic socket, the main
volume leveler on the back side. Connect the LINE out sockets with a regular Phono (TRS/RCA)
cable to an amplifier.
