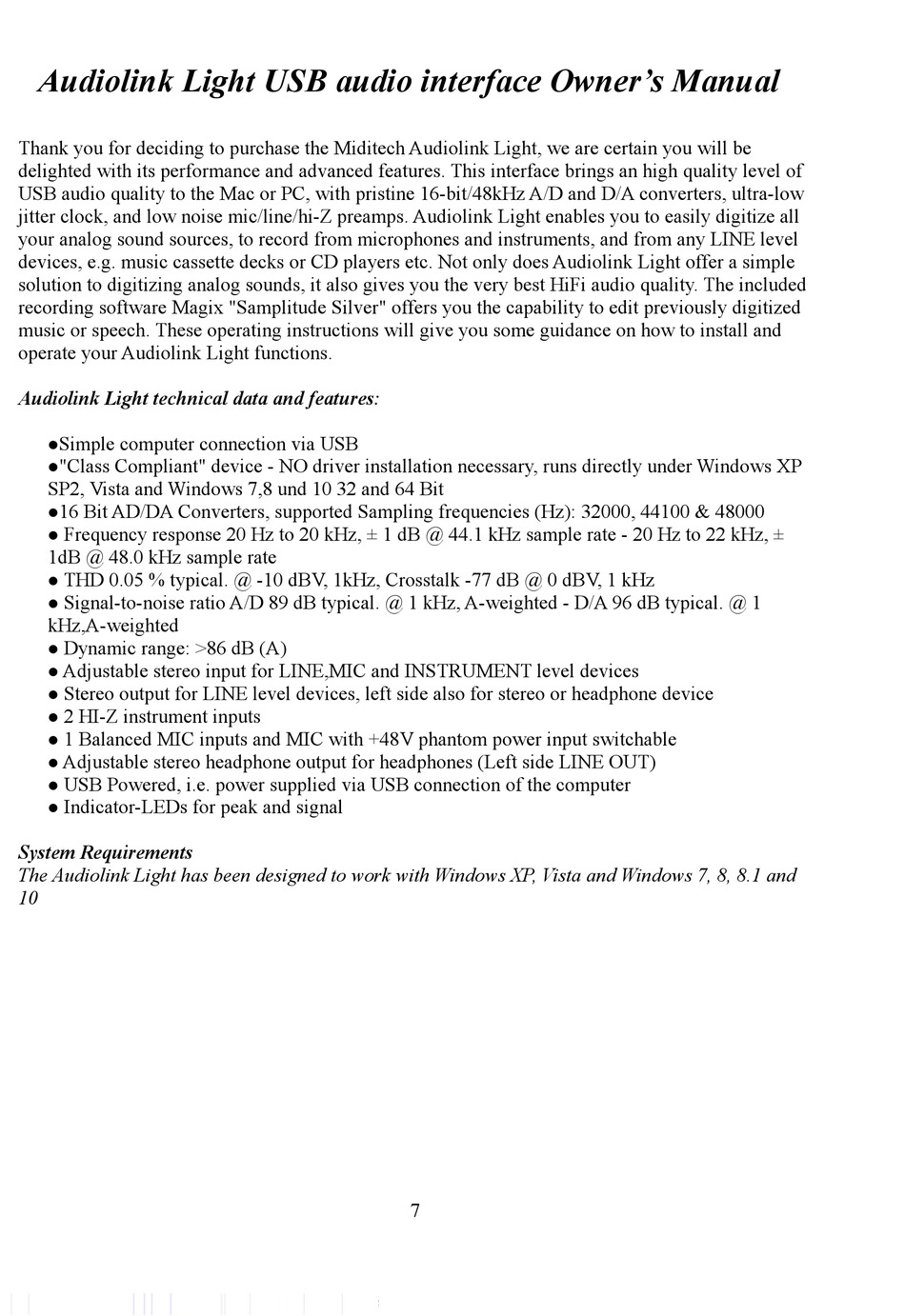

Audiolink Light USB audio interface Owner's Manual
Thank you for deciding to purchase the Miditech Audiolink Light, we are certain you will be
delighted with its performance and advanced features. This interface brings an high quality level of
USB audio quality to the Mac or PC, with pristine 16-bit/48kHz A/D and D/A converters, ultra-low
jitter clock, and low noise mic/line/hi-Z preamps. Audiolink Light enables you to easily digitize all
your analog sound sources, to record from microphones and instruments, and from any LINE level
devices, e.g. music cassette decks or CD players etc. Not only does Audiolink Light offer a simple
solution to digitizing analog sounds, it also gives you the very best HiFi audio quality. The included
recording software Magix "Samplitude Silver" offers you the capability to edit previously digitized
music or speech. These operating instructions will give you some guidance on how to install and
operate your Audiolink Light functions.
Audiolink Light technical data and features:
Simple computer connection via USB

"Class Compliant" device - NO driver installation necessary, runs directly under Windows XP

SP2, Vista and Windows 7,8 und 10 32 and 64 Bit
16 Bit AD/DA Converters, supported Sampling frequencies (Hz): 32000, 44100 & 48000

Frequency response 20 Hz to 20 kHz, ± 1 dB @ 44.1 kHz sample rate - 20 Hz to 22 kHz, ±

1dB @ 48.0 kHz sample rate
THD 0.05 % typical. @ -10 dBV, 1kHz, Crosstalk -77 dB @ 0 dBV, 1 kHz

Signal-to-noise ratio A/D 89 dB typical. @ 1 kHz, A-weighted - D/A 96 dB typical. @ 1

kHz,A-weighted
Dynamic range: >86 dB (A)

Adjustable stereo input for LINE,MIC and INSTRUMENT level devices

Stereo output for LINE level devices, left side also for stereo or headphone device

2 HI-Z instrument inputs

1 Balanced MIC inputs and MIC with +48V phantom power input switchable

Adjustable stereo headphone output for headphones (Left side LINE OUT)

USB Powered, i.e. power supplied via USB connection of the computer

Indicator-LEDs for peak and signal

System Requirements
The Audiolink Light has been designed to work with Windows XP, Vista and Windows 7, 8, 8.1 and
10
