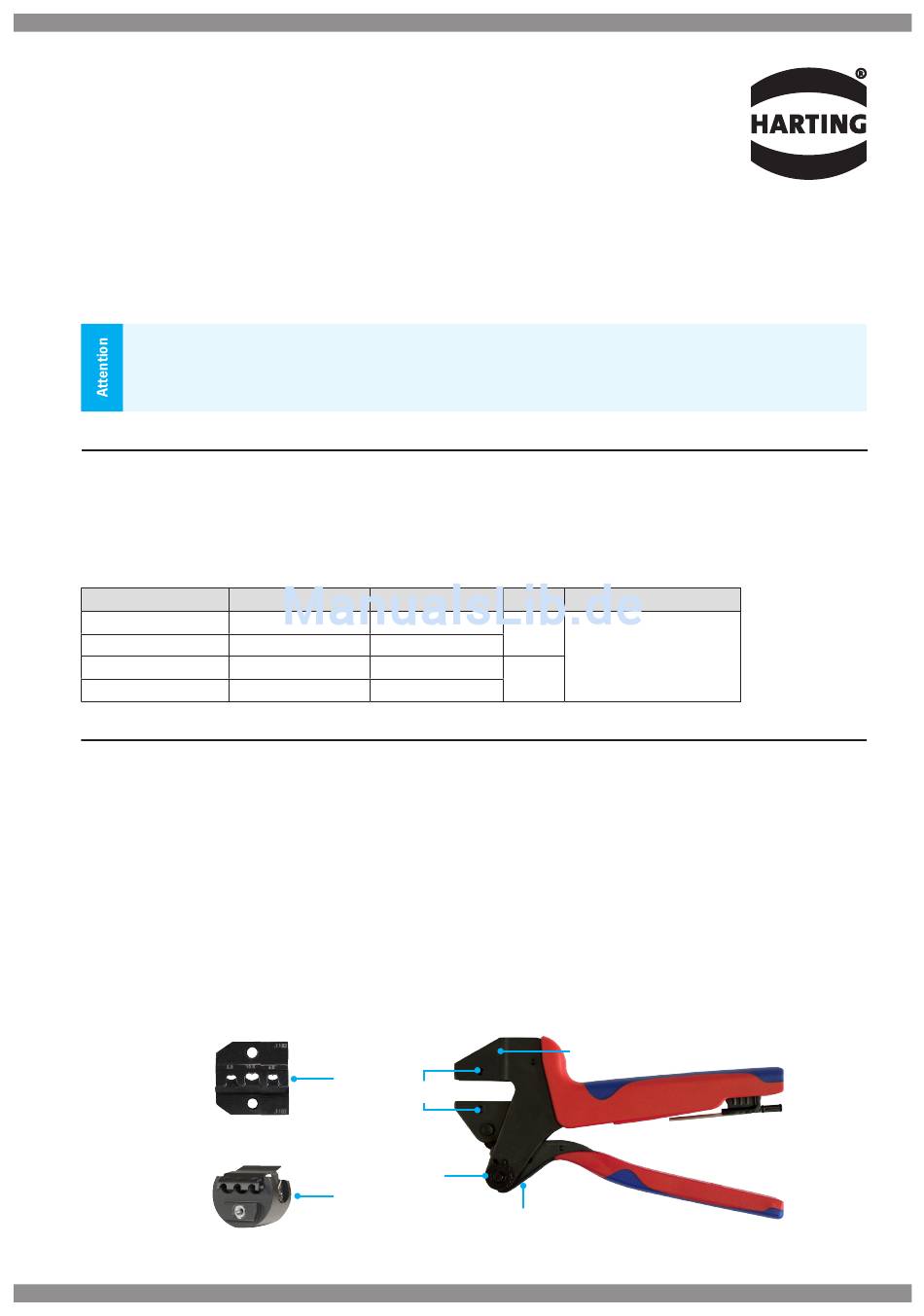

Owner's Manual Crimping Tool HARTING Han-Fast® Lock

1. General Information

The HARTING-crimping tool is manufactured by using the latest technology and the generally accepted safety
regulations. The pliers may only be used in proper working condition with all safety and hazard regulations in
mind and should be used solely for the purpose, for which it is intended for in this owner's manual.
Any unauthorized modification or improper use of the HARTING Crimping Tool
excludes the manufacturer from any liability from damages resulting from this. Only
work on disconnected cables and connectors!

2. Intended Use

Depending upon the type to crimp Han-Fast® Lock series straight and angled connectors:
Item No. of Crimping Tool Contact Type
09 99 000 0881 straight
09 99 000 0831 straight
09 99 000 0877 angled
09 99 000 0876 angled

3. Description

The HARTING Crimping Tool consists of one basic tool
release lever 3, a die set (depending on application) 4, two fastening screws
a positioning aid/ locator
The crimp force can be adjusted (see 7. Setting the Crimping Height). The HARTING Crimping Tool Crimpzange
has a ratcheting mechanism. Only after the last ratchet step is reached, the pliers will open automatically
(concept of forced completion). In order to avoid damages to the crimping die set or the connectors, the
pliers may be opened prematurely by engaging the emergency release lever (see also 6. Emergency Release
of Forced Lock).
