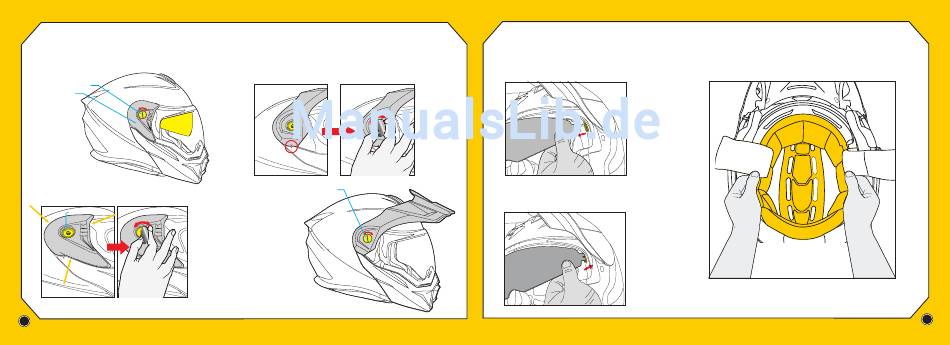

REMOVING THE SIDE COVERS
To remove the side covers, first make sure chin bar is closed.
Then twist off each of the 2 peak visor screws from both sides.
Gently lift off helmet.
Peak Visor Screw
Side Cover
INSTALL SIDE COVERS
To install the side covers,
Peak Visor
Screw Hole first remove the peak visor.
Then align each side cover
over the faceshield side
(see yellow arrows) and with
the peak visor screw hole.
Insert peak visor screws into
Use a tool
(like a coin)
each side and firmly tighten
to tighten
both sides by a tool like a coin.
the screw.
5
INSTALL PEAK VISOR
To install the peak visor, align the visor in the upright position and
line-up the arrows on the chin bar and peak visor (circled in red).
Insert peak visor screws into each side and firmly tighten both sides
by a tool like a coin.
Peak Visor Screw
REMOVAL OF SPEEDVIEW®
SUNVISOR FOR CLEANING
OR REPLACEMENT
NOTE: FIRST, OPEN OUTER SHIELD TO THE HIGHEST POSITION.
THEN LOWER THE SUNVISOR TO LOWEST POSSIBLE POSITION.
Firmly hold the sunvisor with your hand and gently
pull one side out away from the helmet to release.
Repeat to release the opposite side.
Reverse process for installation.
REMOVING THE CROWN LINER
After removing the cheek pads, reach into the helmet and pull
out the crown liner shown below. The front part of the liner is
snapped to the helmet liner frame. Gently detach it from the
forehead channel and pull away from interior of helmet.
