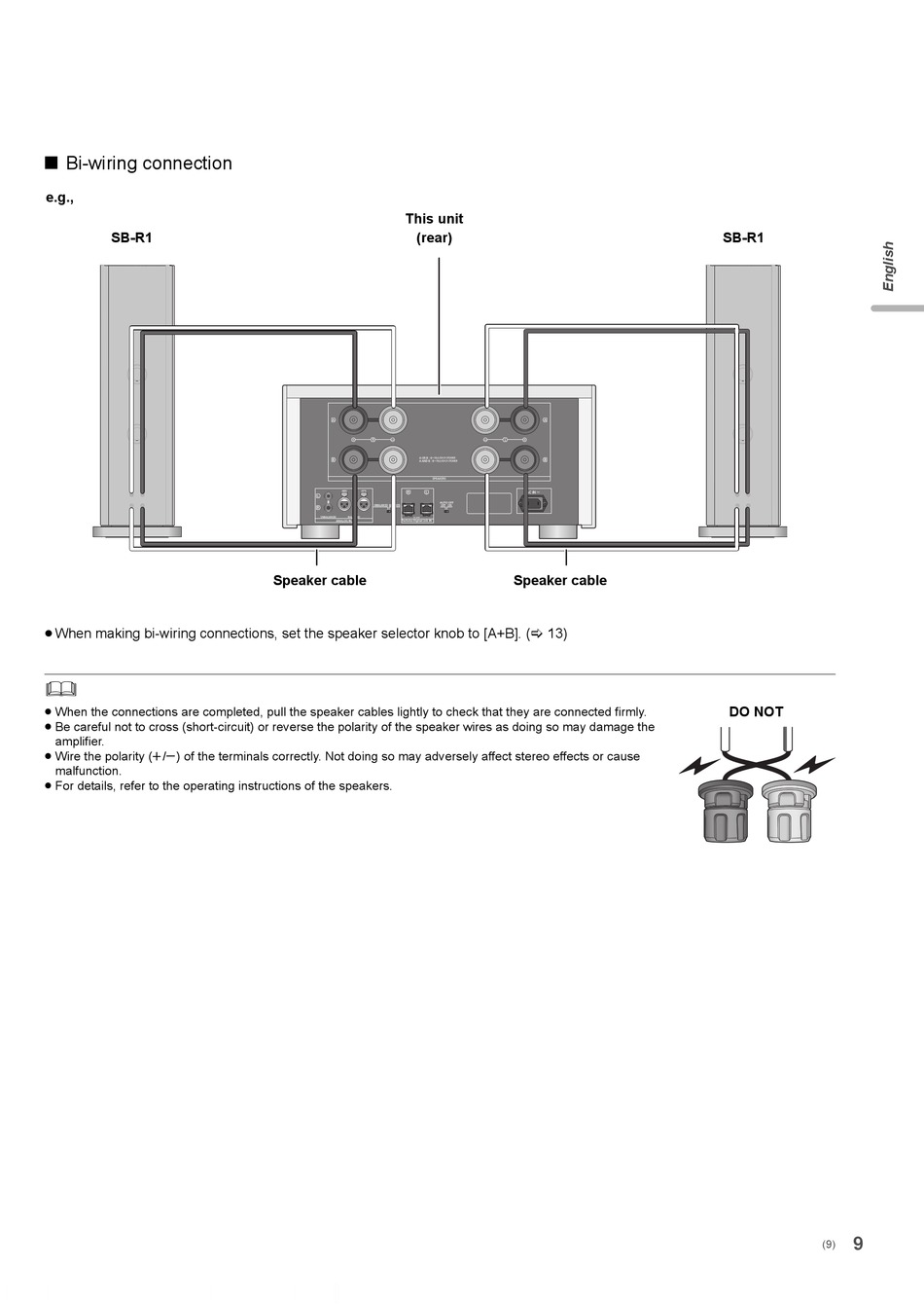

∫ Bi-wiring connection

e.g.,
SB-R1
≥ When making bi-wiring connections, set the speaker selector knob to [A+B]. (
≥ When the connections are completed, pull the speaker cables lightly to check that they are connected firmly.
≥ Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the
amplifier.
≥ Wire the polarity (r/s) of the terminals correctly. Not doing so may adversely affect stereo effects or cause
malfunction.
≥ For details, refer to the operating instructions of the speakers.
This unit
(rear)
Speaker cable Speaker cable
13)
SB-R1
DO NOT
9
(9)
