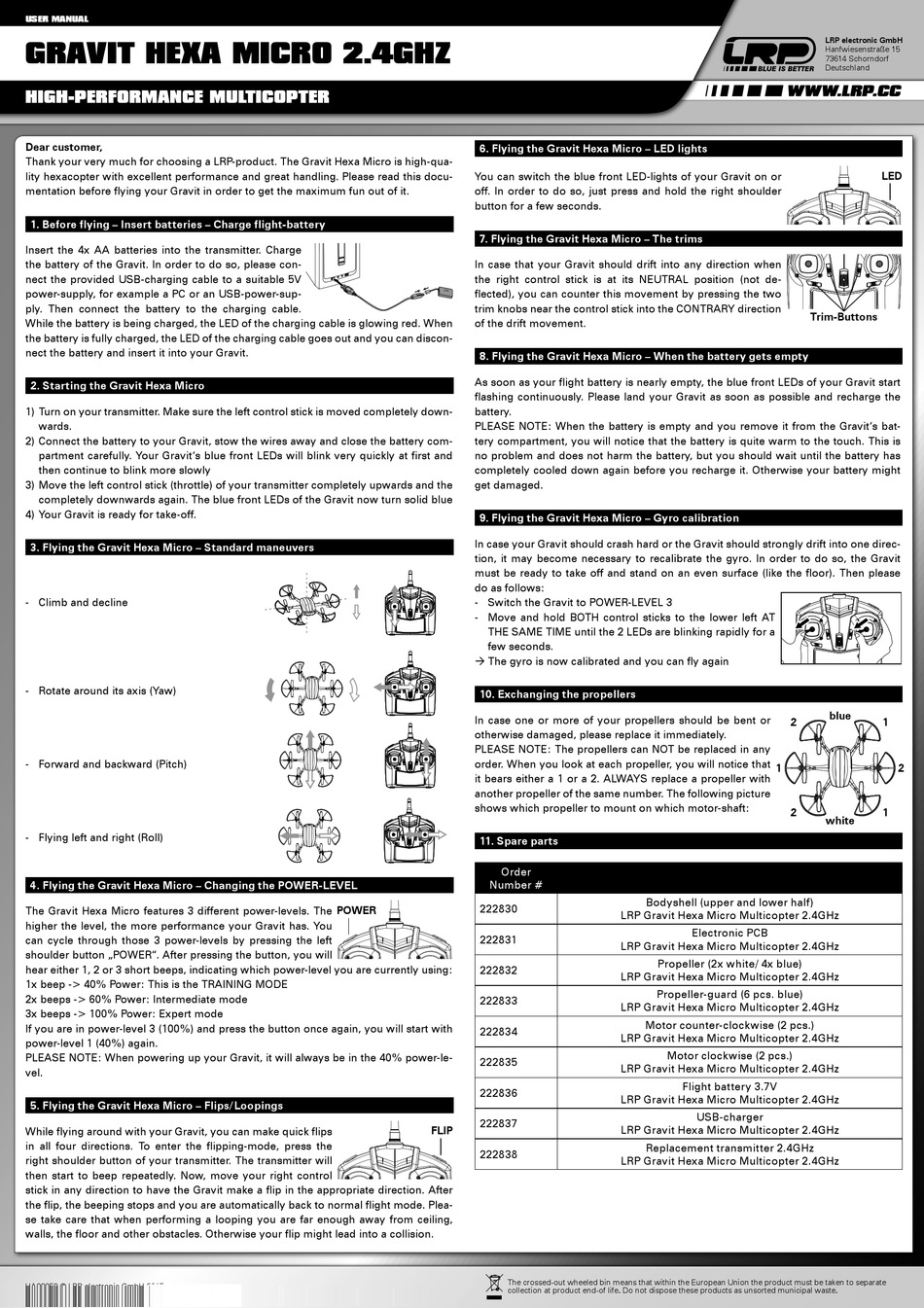

USER MANUAL

GRAVIT HEXA MICRO 2.4GHZ

HIGH-PERFORMANCE MULTICOPTER

Dear customer,

Thank your very much for choosing a LRP-product. The Gravit Hexa Micro is high-qua-

lity hexacopter with excellent performance and great handling. Please read this docu-

mentation before flying your Gravit in order to get the maximum fun out of it.

1. Before flying – Insert batteries – Charge flight-battery

Insert the 4x AA batteries into the transmitter. Charge

the battery of the Gravit. In order to do so, please con-

nect the provided USB-charging cable to a suitable 5V

power-supply, for example a PC or an USB-power-sup-

ply. Then connect the battery to the charging cable.

While the battery is being charged, the LED of the charging cable is glowing red. When

the battery is fully charged, the LED of the charging cable goes out and you can discon-

nect the battery and insert it into your Gravit.

2. Starting the Gravit Hexa Micro

1) Turn on your transmitter. Make sure the left control stick is moved completely down-

wards.

2) Connect the battery to your Gravit, stow the wires away and close the battery com-

partment carefully. Your Gravit's blue front LEDs will blink very quickly at first and

then continue to blink more slowly

3) Move the left control stick (throttle) of your transmitter completely upwards and the

completely downwards again. The blue front LEDs of the Gravit now turn solid blue

4) Your Gravit is ready for take-off.

3. Flying the Gravit Hexa Micro – Standard maneuvers

- Climb and decline

- Rotate around its axis (Yaw)

- Forward and backward (Pitch)

- Flying left and right (Roll)

4. Flying the Gravit Hexa Micro – Changing the POWER-LEVEL

The Gravit Hexa Micro features 3 different power-levels. The

higher the level, the more performance your Gravit has. You

can cycle through those 3 power-levels by pressing the left

shoulder button „POWER". After pressing the button, you will

hear either 1, 2 or 3 short beeps, indicating which power-level you are currently using:

1x beep -> 40% Power: This is the TRAINING MODE

2x beeps -> 60% Power: Intermediate mode

3x beeps -> 100% Power: Expert mode

If you are in power-level 3 (100%) and press the button once again, you will start with

power-level 1 (40%) again.

PLEASE NOTE: When powering up your Gravit, it will always be in the 40% power-le-

vel.

5. Flying the Gravit Hexa Micro – Flips/Loopings

While flying around with your Gravit, you can make quick flips

in all four directions. To enter the flipping-mode, press the

right shoulder button of your transmitter. The transmitter will

then start to beep repeatedly. Now, move your right control

stick in any direction to have the Gravit make a flip in the appropriate direction. After

the flip, the beeping stops and you are automatically back to normal flight mode. Plea-

se take care that when performing a looping you are far enough away from ceiling,

walls, the floor and other obstacles. Otherwise your flip might lead into a collision.

HA00059 © LRP electronic GmbH 2015

6. Flying the Gravit Hexa Micro – LED lights

You can switch the blue front LED-lights of your Gravit on or

off. In order to do so, just press and hold the right shoulder

button for a few seconds.

7. Flying the Gravit Hexa Micro – The trims

In case that your Gravit should drift into any direction when

the right control stick is at its NEUTRAL position (not de-

flected), you can counter this movement by pressing the two

trim knobs near the control stick into the CONTRARY direction

of the drift movement.

8. Flying the Gravit Hexa Micro – When the battery gets empty

As soon as your flight battery is nearly empty, the blue front LEDs of your Gravit start

flashing continuously. Please land your Gravit as soon as possible and recharge the

battery.

PLEASE NOTE: When the battery is empty and you remove it from the Gravit's bat-

tery compartment, you will notice that the battery is quite warm to the touch. This is

no problem and does not harm the battery, but you should wait until the battery has

completely cooled down again before you recharge it. Otherwise your battery might

get damaged.

9. Flying the Gravit Hexa Micro – Gyro calibration

In case your Gravit should crash hard or the Gravit should strongly drift into one direc-

tion, it may become necessary to recalibrate the gyro. In order to do so, the Gravit

must be ready to take off and stand on an even surface (like the floor). Then please

do as follows:

- Switch the Gravit to POWER-LEVEL 3

- Move and hold BOTH control sticks to the lower left AT

THE SAME TIME until the 2 LEDs are blinking rapidly for a

few seconds.

 The gyro is now calibrated and you can fly again

10. Exchanging the propellers

In case one or more of your propellers should be bent or

otherwise damaged, please replace it immediately.

PLEASE NOTE: The propellers can NOT be replaced in any

order. When you look at each propeller, you will notice that

it bears either a 1 or a 2. ALWAYS replace a propeller with

another propeller of the same number. The following picture

shows which propeller to mount on which motor-shaft:

11. Spare parts

Order

Number #

222830

POWER

222831

222832

222833

222834

222835

222836

222837

FLIP

222838

The crossed-out wheeled bin means that within the European Union the product must be taken to separate

collection at product end-of life. Do not dispose these products as unsorted municipal waste.

Bodyshell (upper and lower half)
