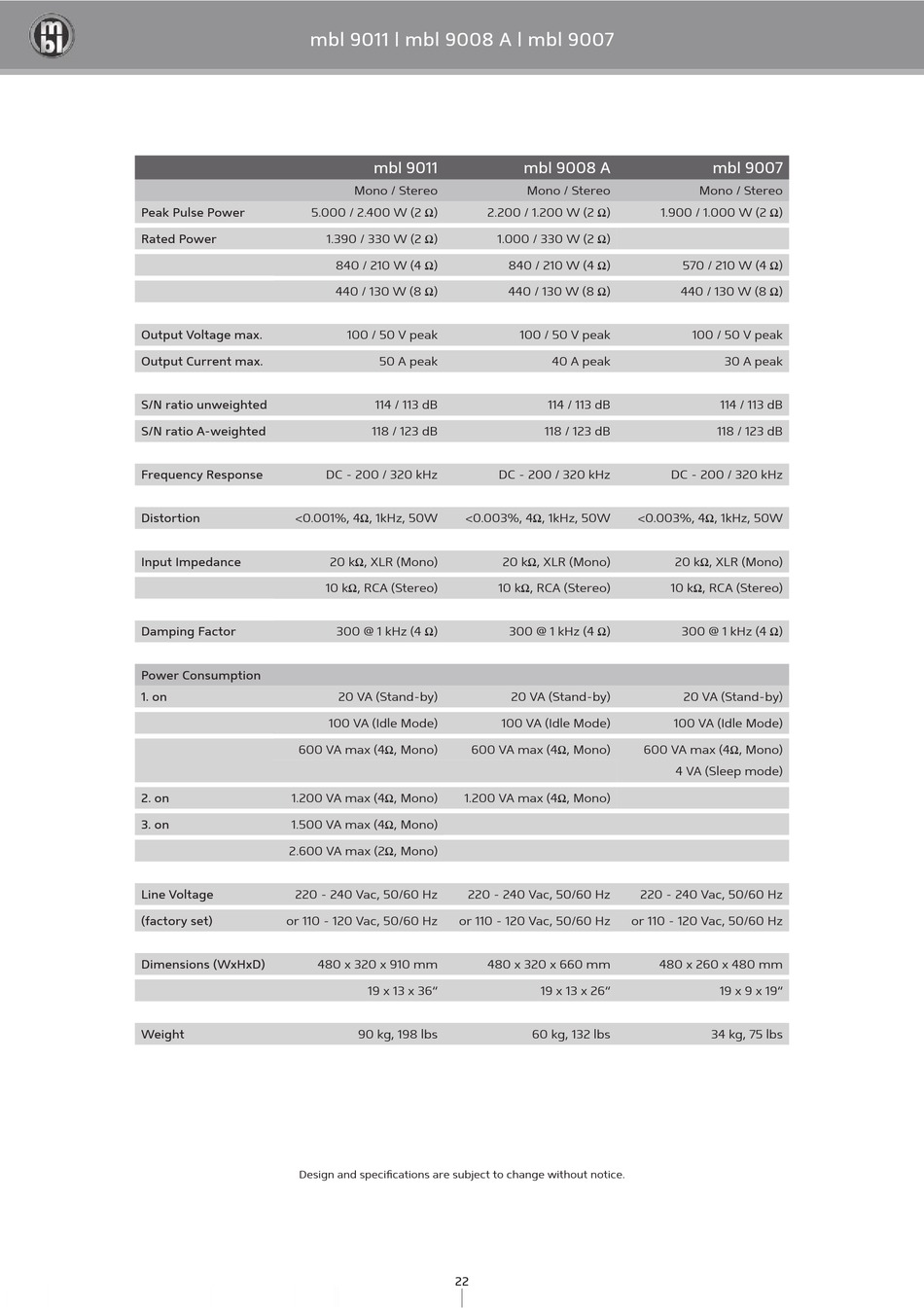

mbl 9011 | mbl 9008 A | mbl 9007
Peak Pulse Power 5.000 / 2.400 W (2 O)
Rated Power
Output Voltage max.
Output Current max.
S/N ratio unweighted
S/N ratio A-weighted
Frequency Response
Distortion <0.001%, 4O, 1kHz, 50W
Input Impedance
Damping Factor
Power Consumption
1. on
600 VA max (4O, Mono)
2. on 1.200 VA max (4O, Mono)
3. on 1.500 VA max (4O, Mono)
2.600 VA max (2O, Mono)
Line Voltage 220 - 240 Vac, 50/60 Hz
(factory set) or 110 - 120 Vac, 50/60 Hz
Dimensions (WxHxD)
Weight
Design and specifications are subject to change without notice.
mbl 9011
Mono / Stereo
2.200 / 1.200 W (2 O)
1.390 / 330 W (2 O)
840 / 210 W (4 O)
440 / 130 W (8 O)
100 / 50 V peak
50 A peak
114 / 113 dB
118 / 123 dB
DC - 200 / 320 kHz
<0.003%, 4O, 1kHz, 50W
20 kO, XLR (Mono)
10 kO, RCA (Stereo)
300 @ 1 kHz (4 O)
20 VA (Stand-by)
100 VA (Idle Mode)
600 VA max (4O, Mono)
1.200 VA max (4O, Mono)
220 - 240 Vac, 50/60 Hz
or 110 - 120 Vac, 50/60 Hz
480 x 320 x 910 mm 480 x 320 x 660 mm
19 x 13 x 36"
90 kg, 198 lbs
22
mbl 9008 A
Mono / Stereo
1.900 / 1.000 W (2 O)
1.000 / 330 W (2 O)
840 / 210 W (4 O)
440 / 130 W (8 O)
100 / 50 V peak
40 A peak
114 / 113 dB
118 / 123 dB
DC - 200 / 320 kHz DC - 200 / 320 kHz
<0.003%, 4O, 1kHz, 50W
20 kO, XLR (Mono)
10 kO, RCA (Stereo) 10 kO, RCA (Stereo)
300 @ 1 kHz (4 O)
20 VA (Stand-by)
100 VA (Idle Mode)
600 VA max (4O, Mono)
220 - 240 Vac, 50/60 Hz
or 110 - 120 Vac, 50/60 Hz
480 x 260 x 480 mm
19 x 13 x 26"
60 kg, 132 lbs
mbl 9007
Mono / Stereo
570 / 210 W (4 O)
440 / 130 W (8 O)
100 / 50 V peak
30 A peak
114 / 113 dB
118 / 123 dB
20 kO, XLR (Mono)
300 @ 1 kHz (4 O)
20 VA (Stand-by)
100 VA (Idle Mode)
4 VA (Sleep mode)
19 x 9 x 19"
34 kg, 75 lbs
