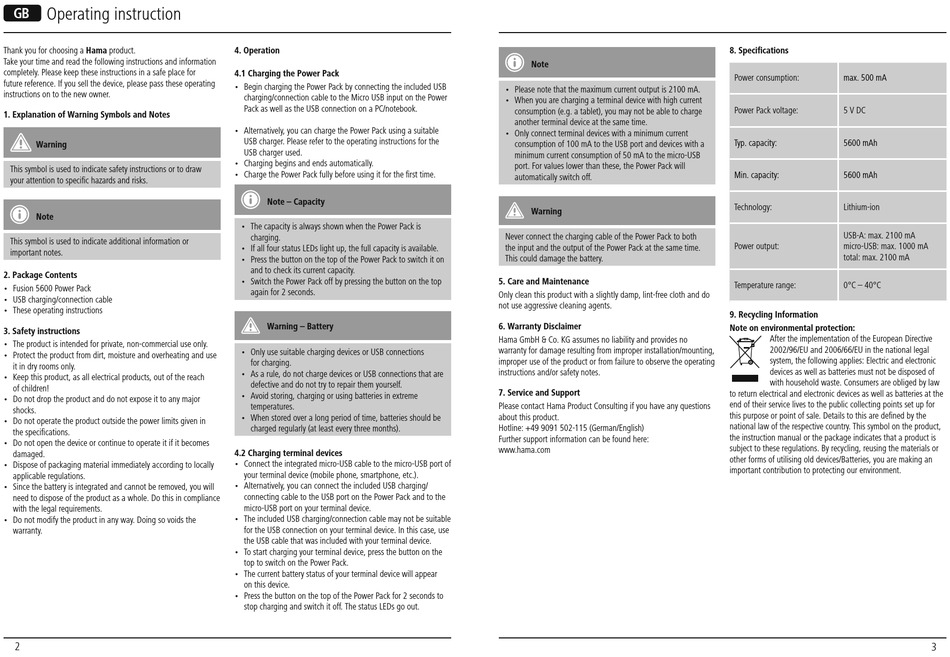

Hama Fusion Bedienungsanleitung Seite 2

G Operating instruction
Thank you for choosing a Hama product.
Take your time and read the following instructions and information
completely. Please keep these instructions in a safe place for
future reference. If you sell the device, please pass these operating
instructions on to the new owner.
1. Explanation of Warning Symbols and Notes
Warning
This symbol is used to indicate safety instructions or to draw
your attention to specific hazards and risks.
Note
This symbol is used to indicate additional information or
important notes.
2. Package Contents
• Fusion 5600 Power Pack
• USB charging/connection cable
• These operating instructions
3. Safety instructions
• The product is intended for private, non-commercial use only.
• Protect the product from dirt, moisture and overheating and use
it in dry rooms only.
• Keep this product, as all electrical products, out of the reach
of children!
• Do not drop the product and do not expose it to any major
shocks.
• Do not operate the product outside the power limits given in
the specifications.
• Do not open the device or continue to operate it if it becomes
damaged.
• Dispose of packaging material immediately according to locally
applicable regulations.
• Since the battery is integrated and cannot be removed, you will
need to dispose of the product as a whole. Do this in compliance
with the legal requirements.
• Do not modify the product in any way. Doing so voids the
warranty.
2
4. Operation
4.1 Charging the Power Pack
• Begin charging the Power Pack by connecting the included USB
charging/connection cable to the Micro USB input on the Power
Pack as well as the USB connection on a PC/notebook.
• Alternatively, you can charge the Power Pack using a suitable
USB charger. Please refer to the operating instructions for the
USB charger used.
• Charging begins and ends automatically.
• Charge the Power Pack fully before using it for the first time.
Note – Capacity
• The capacity is always shown when the Power Pack is
charging.
• If all four status LEDs light up, the full capacity is available.
• Press the button on the top of the Power Pack to switch it on
and to check its current capacity.
• Switch the Power Pack off by pressing the button on the top
again for 2 seconds.
Warning – Battery
• Only use suitable charging devices or USB connections
for charging.
• As a rule, do not charge devices or USB connections that are
defective and do not try to repair them yourself.
• Avoid storing, charging or using batteries in extreme
temperatures.
• When stored over a long period of time, batteries should be
charged regularly (at least every three months).
4.2 Charging terminal devices
• Connect the integrated micro-USB cable to the micro-USB port of
your terminal device (mobile phone, smartphone, etc.).
• Alternatively, you can connect the included USB charging/
connecting cable to the USB port on the Power Pack and to the
micro-USB port on your terminal device.
• The included USB charging/connection cable may not be suitable
for the USB connection on your terminal device. In this case, use
the USB cable that was included with your terminal device.
• To start charging your terminal device, press the button on the
top to switch on the Power Pack.
• The current battery status of your terminal device will appear
on this device.
• Press the button on the top of the Power Pack for 2 seconds to
stop charging and switch it off. The status LEDs go out.
Note
• Please note that the maximum current output is 2100 mA.
• When you are charging a terminal device with high current
consumption (e.g. a tablet), you may not be able to charge
another terminal device at the same time.
• Only connect terminal devices with a minimum current
consumption of 100 mA to the USB port and devices with a
minimum current consumption of 50 mA to the micro-USB
port. For values lower than these, the Power Pack will
automatically switch off.
Warning
Never connect the charging cable of the Power Pack to both
the input and the output of the Power Pack at the same time.
This could damage the battery.
5. Care and Maintenance
Only clean this product with a slightly damp, lint-free cloth and do
not use aggressive cleaning agents.
6. Warranty Disclaimer
Hama GmbH & Co. KG assumes no liability and provides no
warranty for damage resulting from improper installation/mounting,
improper use of the product or from failure to observe the operating
instructions and/or safety notes.
7. Service and Support
Please contact Hama Product Consulting if you have any questions
about this product.
Hotline: +49 9091 502-115 (German/English)
Further support information can be found here:
www.hama.com
8. Specifications
Power consumption: max. 500 mA
Power Pack voltage: 5 V DC
Typ. capacity: 5600 mAh
Min. capacity: 5600 mAh
Technology: Lithium-ion
USB-A: max. 2100 mA
Power output: micro-USB: max. 1000 mA
total: max. 2100 mA
Temperature range: 0°C – 40°C
9. Recycling Information
Note on environmental protection:
After the implementation of the European Directive
2002/96/EU and 2006/66/EU in the national legal
system, the following applies: Electric and electronic
devices as well as batteries must not be disposed of
with household waste. Consumers are obliged by law
to return electrical and electronic devices as well as batteries at the
end of their service lives to the public collecting points set up for
this purpose or point of sale. Details to this are defined by the
national law of the respective country. This symbol on the product,
the instruction manual or the package indicates that a product is
subject to these regulations. By recycling, reusing the materials or
other forms of utilising old devices/Batteries, you are making an
important contribution to protecting our environment.
