3. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve.
Follow the wiring diagram carefully and make certain all connections are secure and insulated with wire nuts or
electrical tape. After completing the wiring connections, plug the ISO connectors into the mating sockets on the
rear of the chassis. Turn the unit on to confrm operation (vehicle ignition switch must be "on"). If the unit does not
operate, re-check all wiring until the problem is corrected.
4. Mount the new radio assembly to the dashboard or center console using the reverse procedure in step 1.
CAUTION! Be careful not to damage the car wiring.
NOTE: It is the end-users responsibility to install and operate this unit in a manner in accordance with local, state
and federal laws. The PARKING BRAKE wire MUST BE CONNECTED as directed in the manual.
CAUTION! Do not block the cooling fan exit. If blocked, the unit may overheat and become damaged.
Using the Cosmetic Trim Ring

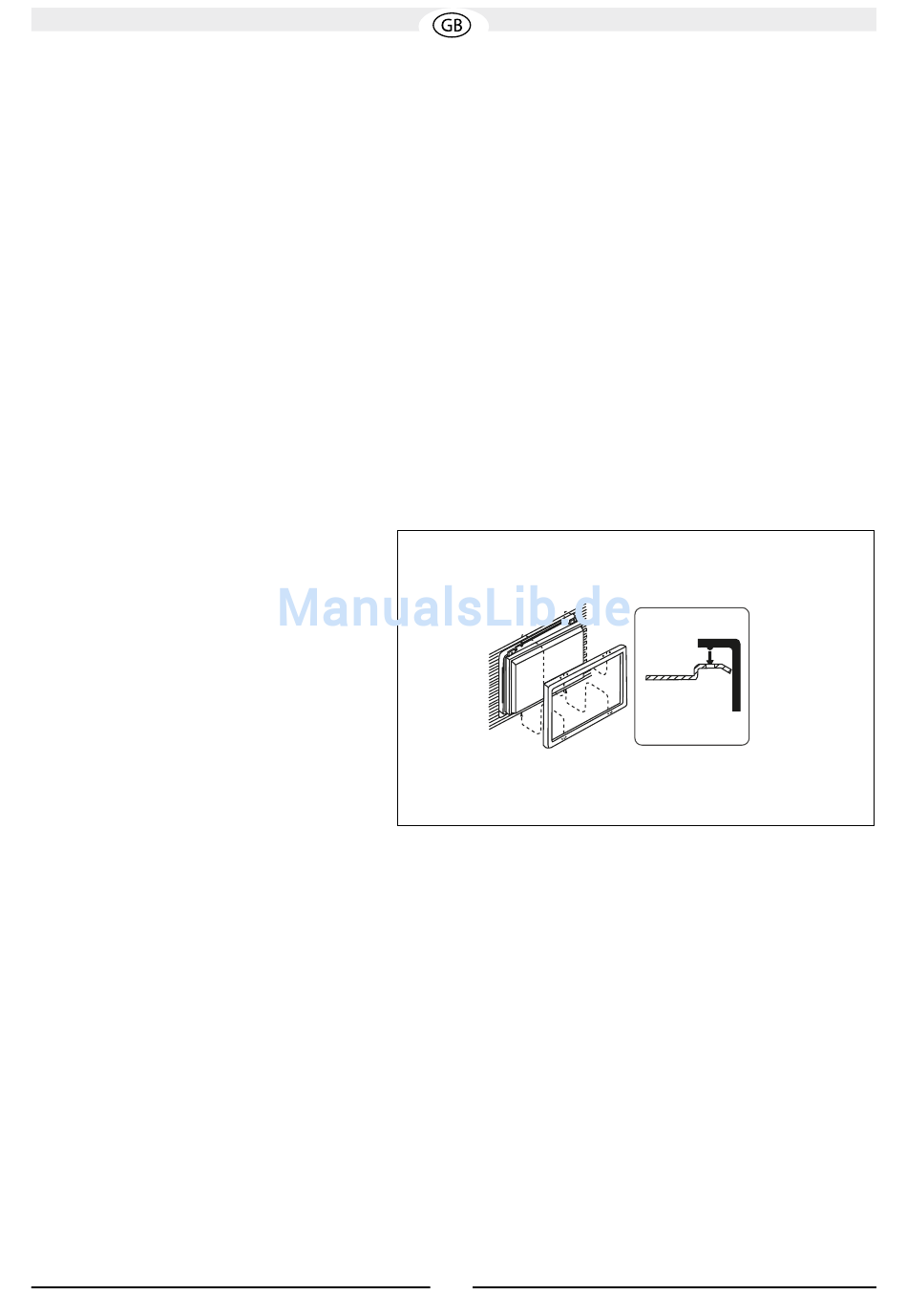

A cosmetic trim ring is packaged with the
head unit for installation
fexibility. This unit will ft into most import
dashes with little or no
modifcation to the dash board/cavity. Some
US domestic vehicle
dashes will accept a Double-DIN chassis,
but there is usually a
small gap between the radio and dash
piece after installation is
complete. In this case, use the appropriate
trim ring to conceal any
gaps that may be present.
NOTE:
For proper operation of the CD/DVD player, the chassis must be mounted within 30° of horizontal. Make
sure the unit is mounted within this limitation.
