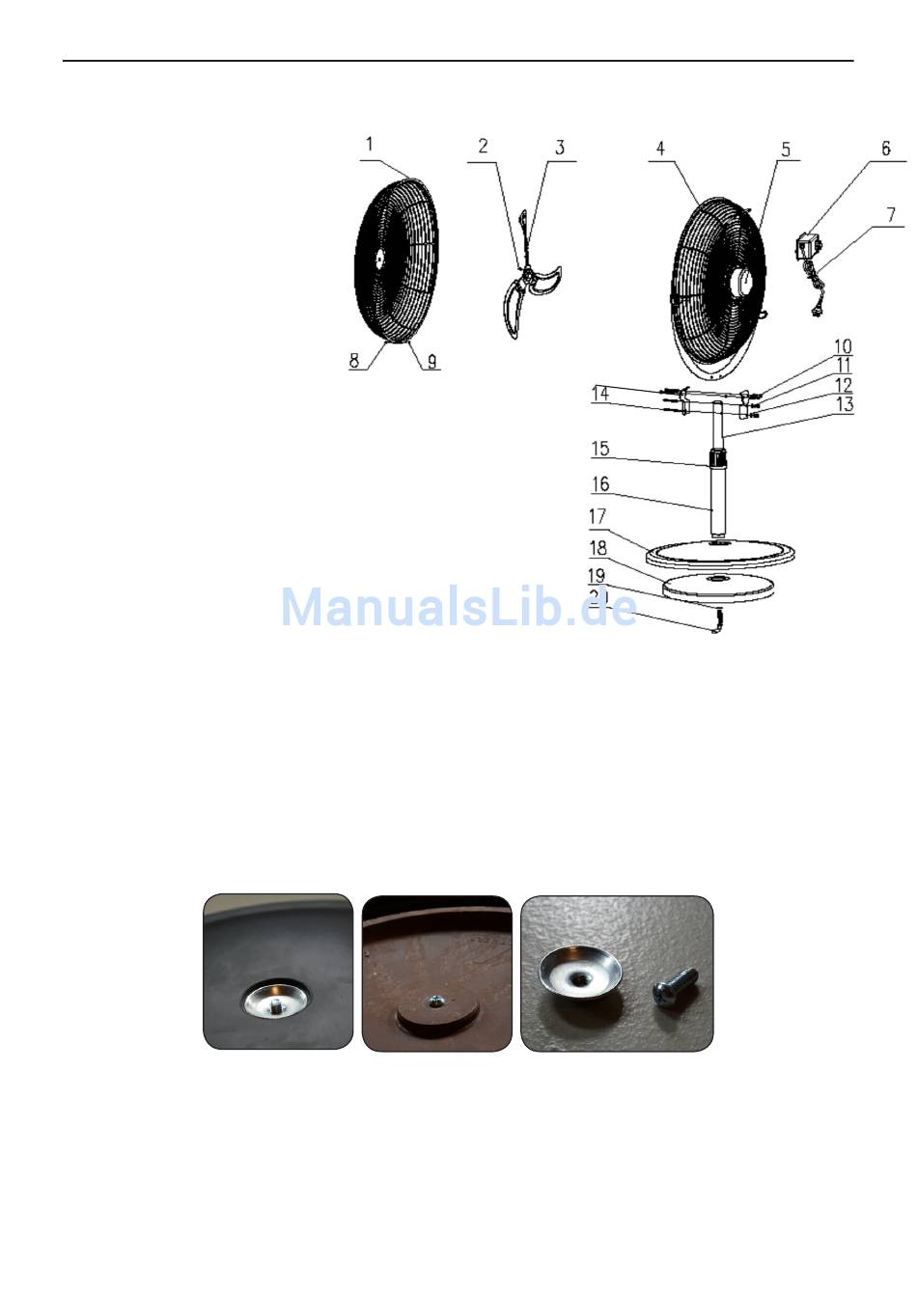

PARTS
1. Front safety guard grill
2. Screw
3. Fan propeller blade
4. Back safety guard grill
5. Motor
6. Motor casing
7. Mains supply cable
8. Nut
9. Bolt
10. Bolt + nut (x3)
11. Ring (x3)
12. Ring
13. Inner column
14. Long bolt + nut
15. Height adjustor
16. Outer column
17. Stand base
18. Counterweight
19. Pinion
20. Right-angle bolt
21. Mounting brackets
ASSEMBLY
A. Attach the outer column to the base with counterweight.
1. First unscrew the bolt at the bottom of the base with counterweight and
remove the bolt and the little metal plate from the bottom of the base. These
parts were only added for transport. They are not needed anymore at this stage.
2. Put the right-angle bolt through the bottom of the base with counterweight.
3. Screw on the outer column, so that it is attached to the base with counter-
weight.
