TECHNICAL SPECS

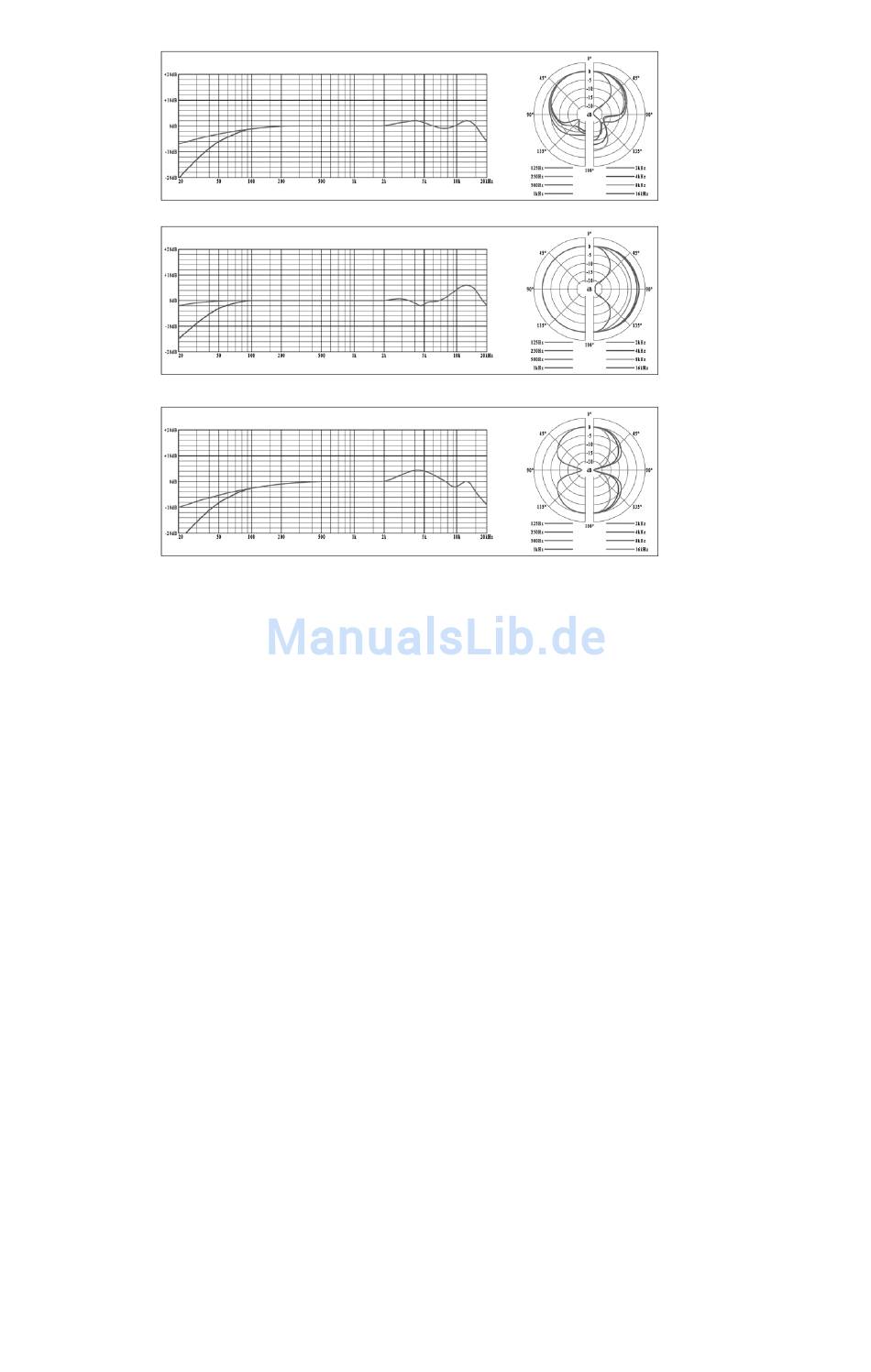

Cardioid at 1kHz
Omni at 1kHz
Figure - 8 at 1kHz
• Modern transformerless version of the highly coveted classic '47 microphone
• Custom made Warm Audio k47 style 34mm capsule (model# WA-47-B-80v)
• Capsule make: gold sputtered, dual large diaphragm, single backplate, 6 microns mylar
• Fully discrete signal path, Toshiba FET's, Wima film capacitors, Panasonic electrolytic capacitors
• Polar Patterns: Cardioid, figure of eight, and omnidirectional
• High-pass filter: 70Hz
• Pad: -10db
• Self-noise: 9dBA
• Dynamic range: 138dBA
• Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
• Frequency Range: 20 Hz~20 kHz
• Sensitivity: 10mV/Pa or -40dB
• Output Impedance: 100 ohms
• Rated Load Impedance: ≥1kOhms
• Maximum output: 16dBu @1kHz, 1kOhms, 0.5% THD
• S/N Ratio: 85dBA (IEC651)
• Equivalent Noise: 9dBA (IEC651)
• Dynamic Range: 138dBA (IEC651)
• 48v phantom powered
• 3-Pin Gold-Plated XLR
• Weight: 1.1 lbs
4
