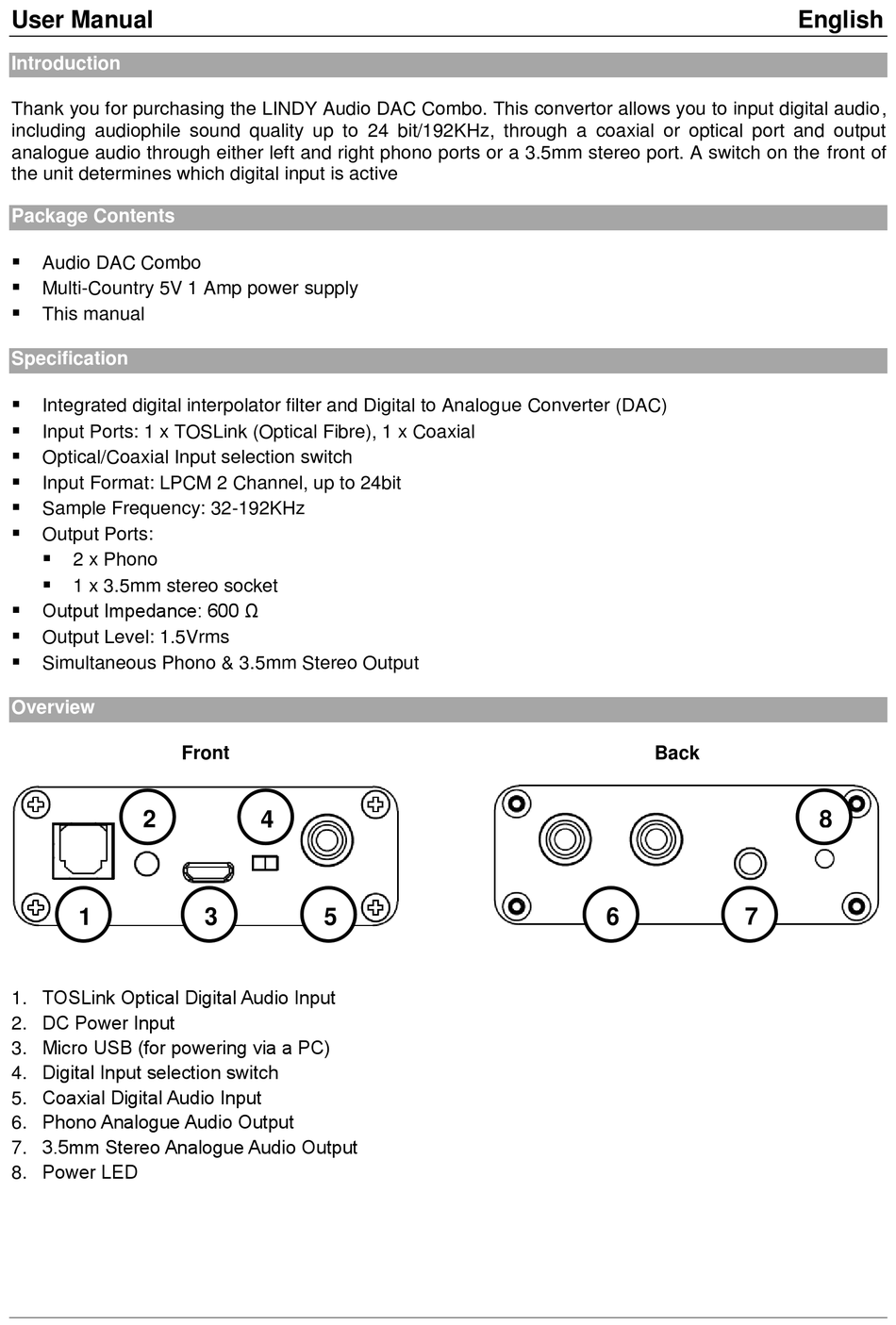

User Manual
Introduction
Thank you for purchasing the LINDY Audio DAC Combo. This convertor allows you to input digital audio,
including audiophile sound quality up to 24 bit/192KHz, through a coaxial or optical port and output
analogue audio through either left and right phono ports or a 3.5mm stereo port. A switch on the front of
the unit determines which digital input is active
Package Contents
Audio DAC Combo
Multi-Country 5V 1 Amp power supply
This manual
Specification
Integrated digital interpolator filter and Digital to Analogue Converter (DAC)
Input Ports: 1 x TOSLink (Optical Fibre), 1 x Coaxial
Optical/Coaxial Input selection switch
Input Format: LPCM 2 Channel, up to 24bit
Sample Frequency: 32-192KHz
Output Ports:
2 x Phono
1 x 3.5mm stereo socket
Output Impedance: 600 Ω
Output Level: 1.5Vrms
Simultaneous Phono & 3.5mm Stereo Output
Overview
2
1
1. TOSLink Optical Digital Audio Input
2. DC Power Input
3. Micro USB (for powering via a PC)
4. Digital Input selection switch
5. Coaxial Digital Audio Input
6. Phono Analogue Audio Output
7. 3.5mm Stereo Analogue Audio Output
8. Power LED
Front
4
3
5
Back
6
7
English
8
