1. Features
The setup tool is a specially designed handheld tool for the Wallwasher XL RGBW. By
connecting the setup tool to the fixture via XLR, user can easily configure DMX address,
channel modes, white balance, manual colors and fade speed.
2. Specifications
Power supply: 6F22 9V battery

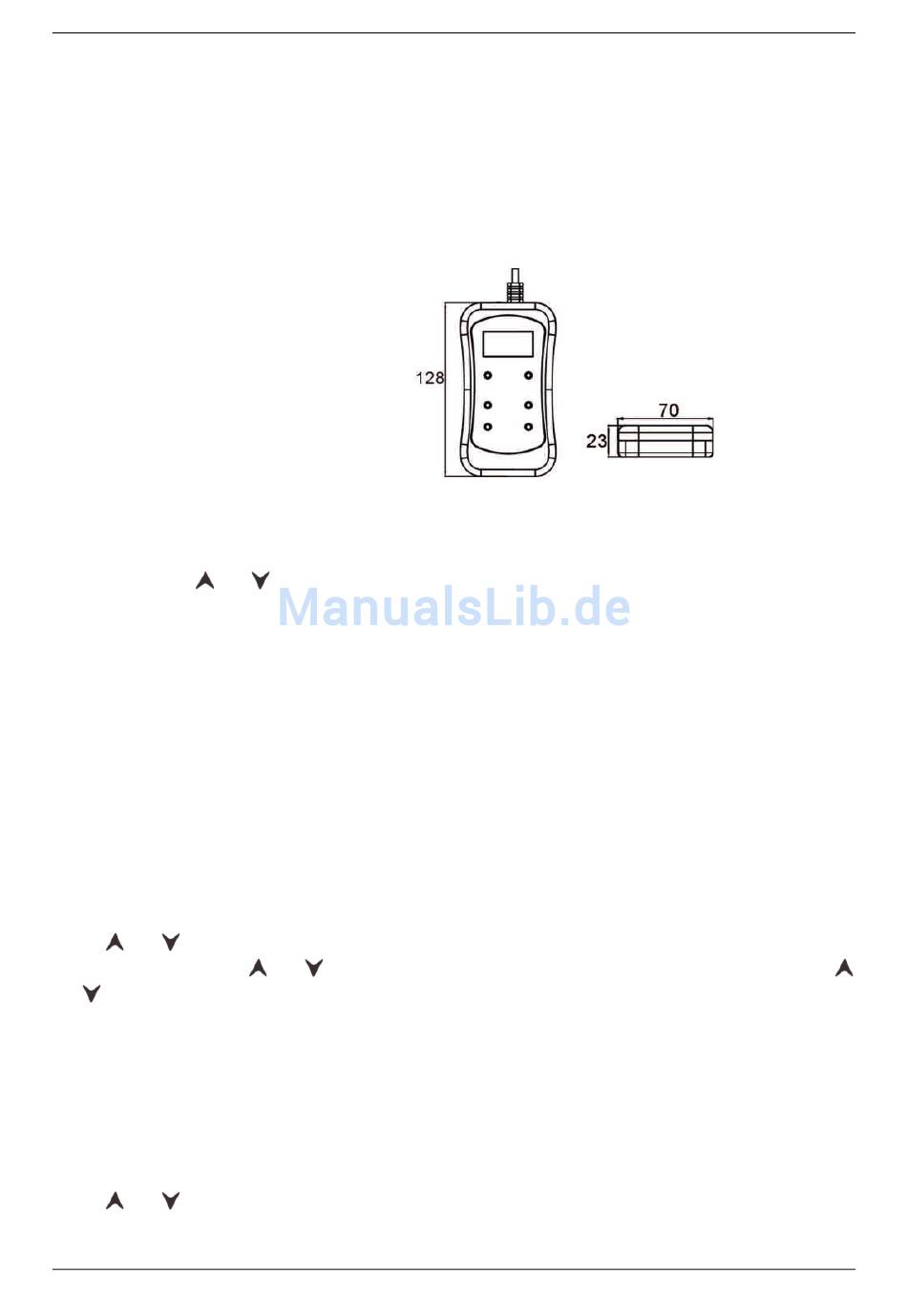

Dimensions: 128 x 23 x 70 mm
Weight: 0.158 kg
3. Main Functions
Every time you switch the unit on, the display will show "Ver 1.2". After pressing the ENTER
button, the unit will carry out the "SetAddr" function and the address is set at the DMX
fixture. After 8 seconds the setup tool will show "Setting Manual" on the display. Press the
Function keys or
desire and press the ENTER button to activate the function. After pressing ENTER again, it
will automatically power off to prolong battery life without any change after 30 seconds. If
you choose "Setting Manual", you can set up the address channel mode, white balance,
manual color and fade speed manually. In "Setting Auto" mode, you can automatically set
up address and channel mode. Press MENU button until "Quit Set" is shown on the display
to exit the settings. The main functions are shown below:

3.1. Manual Setting

3.1.1. DMX 512 Address Setting
In "Setting Manual" mode you can select the desired DMX Address with the FUNCTION
keys or . When you press the ENTER button, "Address 0001" will be displayed. With
the FUNCTION keys
or you can select the DMX 512 address. The unit you selected will light green. Once the
address has been selected, press the ENTER button to confirm your choice. Then the
progress bar will be displayed for 1-2 seconds and the fixture lights up green several times
to show that the modification has been saved.

3.1.2. Channel Mode

In "Setting Manual" mode you can select the desired Channel Mode with the FUNCTION
keys or . When you press the ENTER button, "CH Mode 0001" will be displayed.
www.proled.com
and "Setting Auto" will show on the display. Select the model you
or you can choose unit 1-9999 and with the DATA buttons
5
