User Manual

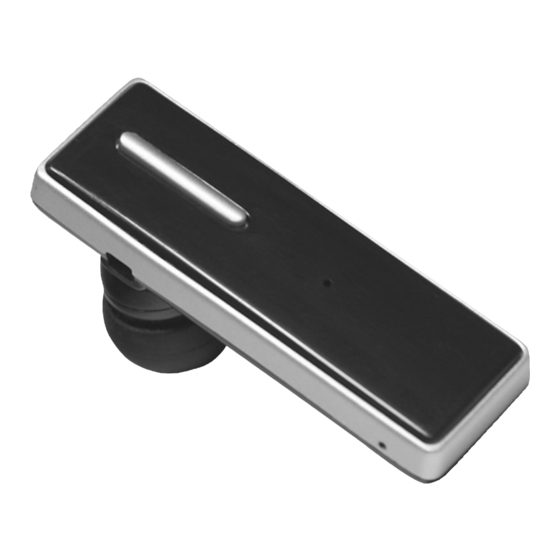

Congratulations
On your purchase of the B-Speech® Rex multilink-headset. This headset allows you
to communicate wirelessly through your mobile phone and includes a built-in micro-
phone and earphone. It uses BT 2.1 and multilink technology, but is also downward
compatible .Your B-Speech® Rex headset uses a built-in Lithium Polymer recharge-
able battery, with long life.
Package Contents
• Headset B-Speech® Rex
• 2 Ear hook
• 3 Rubber ear gels
• USB Charger Cable
• User Guide
Headset overview
1. Earhook
2. Multifunction key
3. Charging port
4. Status LED
5. Microphone
6. Volume +
7. Volume -
8. Earphone
The headset can be worn on either ear.
Just clip the ear hook on to the preferred side.
Charging the internal battery
Before using your headset, please charge the internal battery. To charge the battery:
1. Connect the USB Charger to a USB port.
2. Plug the chargers connector into the charging port of Rex
3. While charging the red LED blinks once and goes on permanently. The red LED
goes off when charging is complete. You can then unplug the adaptors connector
from the headset and disconnect the adaptor from the electrical outlet.
4. During normal use you see the red LED blinking, please charge the Headset
5. Charging time is about 2 hours
Switching the headset on or off
To switch on:
Press and hold the multifunction key for 3 seconds until the blue LED flashes.
To switch off:
Press and hold the multifunction key for 3 seconds until the red LED flashes.
Note, if there is no connection with B-Speech® Rex, the headset will switch off
automatically. After switching on , Rex will go into auto-pairing mode and connect to
the mobiles, which were paired before
Pairing Procedure
Your B-Speech® Rex needs to be paired to your Bluetooth® mobile phone before it
can be used. This is a two part process; one part is carried out on the headset and
the other is carried out on the mobile phone.
Note that different mobile phones use different methods of pairing.
To pair your B-Speech Rex:
1. With your headset turned off, press and hold the multifunction key for 7 sec.
The LED will alternate rapidly between blue and red which indicates that the
head set is in pairing mode.
2. Use your phone's menu to search for Bluetooth® audio devices. The phone
should indicate it has found the B-Speech® Rex headset. Confirm that you
want to pair your mobile phone and headset together. If you are unsure how to
go through the pairing process on your mobile phone, please refer to the user
manual.
3. When asked for a pin key, enter: "0000". Your phone will confirm that pairing has
been successful.
Note that there is usually a time limit to pair devices,
Note for Multilink use:
In order to pair a second mobile please press the volume - ( ) button for 3
seconds, the LED will alternate rapidly between blue and red, B-Speech® Rex will
go into pairing mode and you can pair the second mobile. Please proceed with
pairing as described before. To activate the Multilink-function turn the headset off
and on. The B-Speech® Rex will will connect to both mobiles.
Technische Änderungen vorbehalten! / Technical specifications are subject to change without notice. 06/2011
1
2
6
3
7
4
5
Phone call use
Making a call from the mobile phone
While your mobile phone is paired with your headset, you can use the mobile phone
to make phone calls in the same way as normal. The only difference will be that the
earphone and microphone functions of the headset will be used instead of the phone's.
Answering a call
to answer a call after a ring tone heard in your headset, simply press the
multifunction key.
Note that you can set your mobile phone to automatically answer calls, which means
you do not even need to press the multifunction key. Please refer to your mobile
phone's user guide for more information about this setting.
Note for multilink use
While conversation on the first phone, to answer a second incoming call from the
second phone which is also connected with Rex, press ( ) for 3 seconds to hold the
first and accept the second mobile phones call. In this case you can switch between
both calls by shortly pressing ( ).
Alternatively press the MFB to end the first and accept the second call.
Ending a call
8
During a call, press the multifunction key to hang up. If the other person hangs up
first, then the call will end automatically.
Voice dialling through the headset
In order to use the voice dial feature of your headset, your phone must support voice
dialling and must have voice tags stored. To use voice dialling, the corresponding
voice profiles must be stored in your phone. Your mobile must also support this
function. Press the multifunction key briefly. You will hear a short tone. Speak the
voice tag immediately. Your phone will make the call.
Last number redial
When the headset is in standby mode (not in conversation), press the volume + key 3
seconds, (tone appear) and your phone will re-dial the last number that you called.
Note: This function only works on Bluetooth® phones that support the Hands-free
profile. In multilink mode the number of the last paired mobile will be used.
Transfering a single call
During a call, you can press and hold the multifunction key for 3 seconds
(a tone appear), to switch the conversation between the headset and the mobile
phone. Repeat the operation to return.
Note: Please note that your mobile phone have to support this function. If your mobile
phone does not support it please use it to transfer the call back to your headset.
Rejecting Calls
Press the multifunction key for 3 seconds during an incoming phone (a tone will be
heard) call to reject the call.
Adjusting the volume
• To increase the volume, briefly press the increase volume key ( ).
• To decrease the volume, briefly press the decrease volume key ( ).
Bluetooth® headset specification
• BT Version 2.1 Class 2
• Maximum distance 30 Feet (10 meters)
• Multilink, 2 mobile phones can be used simultaneously
• Typical standby time is up to 100 hours
• Typical talk time is up to 4,5 hours
• Typical re-charge time is 2 hours
• Battery type: Lithium Polymer rechargeable
Registration and Safety
Certification/General Information
This device bears the CE symbol as specified by the provisions of Directive R & TTE (99/5/EC).
B-Speech hereby declares that this device is in compliance with the basic requirements and other
relevant guidelines and regulations of the1999/5/EC guideline.
You will find the declaration of conformity on the Internet at http://www.b-speech.com.
Note on environmental protection:
After the implementation of the European Directive 2002/96/ EU in the national legal
system, the following applies: Electrical and electronic devices may not be disposed of
with domestic waste. Consumers are obliged by law to return electrical and electronic
devices at the end of their service lives to the public collecting points set up for this
purpose or point of sale. Details of this are defined by the national law of the respective
country. This symbol on the product, the instruction manual or the package indicates that
a product is subject to these regulations. By recycling, re-using the materials or other forms of
utilising old devices, you are making an important contribution to protecting our environment.
