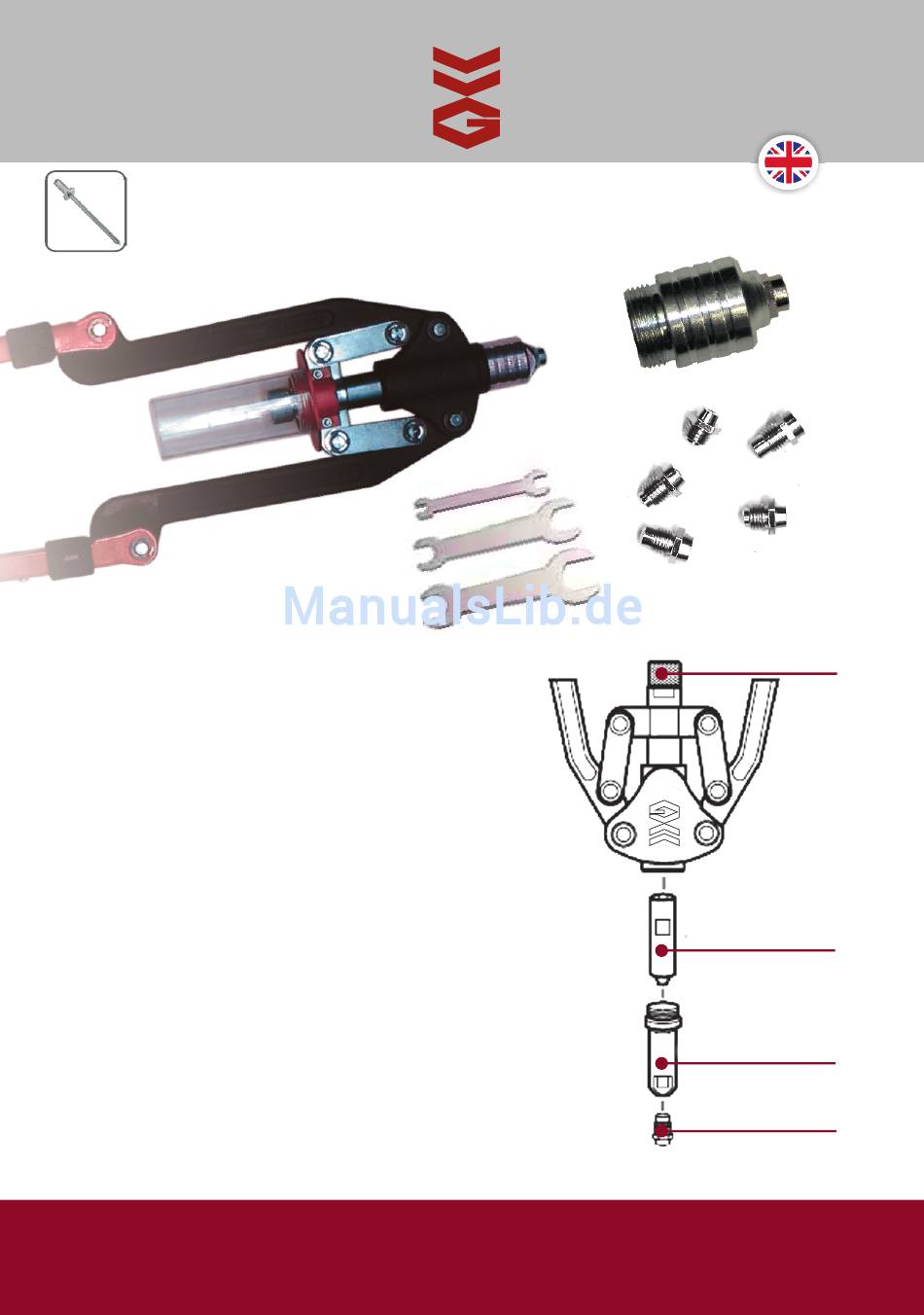

BLIND RIVETS
1. Drill a hole for the rivet you want to place
into the work piece.
2. Choose the correct nose piece and assemble
it with the spanner.
3. Spread the handles open.
4. Insert the blind rivet into the nose piece and
into the hole drilled before.
5. Operate the tool by closing and spreading the
handles until the mandrel of the rivet break.
Spread the handles open release the broken
6.
rivet mandrel.
5
MULTI
pull bar
jaw case
front sleeve
nose piece
