AUFBAUANLEITUNG / ASSEMBLY INSTRUCTIONS
SCHRITT 3: AUFBAU DES OBERKORBS
STEP 3: ASSEMBLY OF THE UPPER PART
© 2018 LILIMO® GMBH & Co.KG, Stand 01.2018
DEUTSCH /
ENGLISH

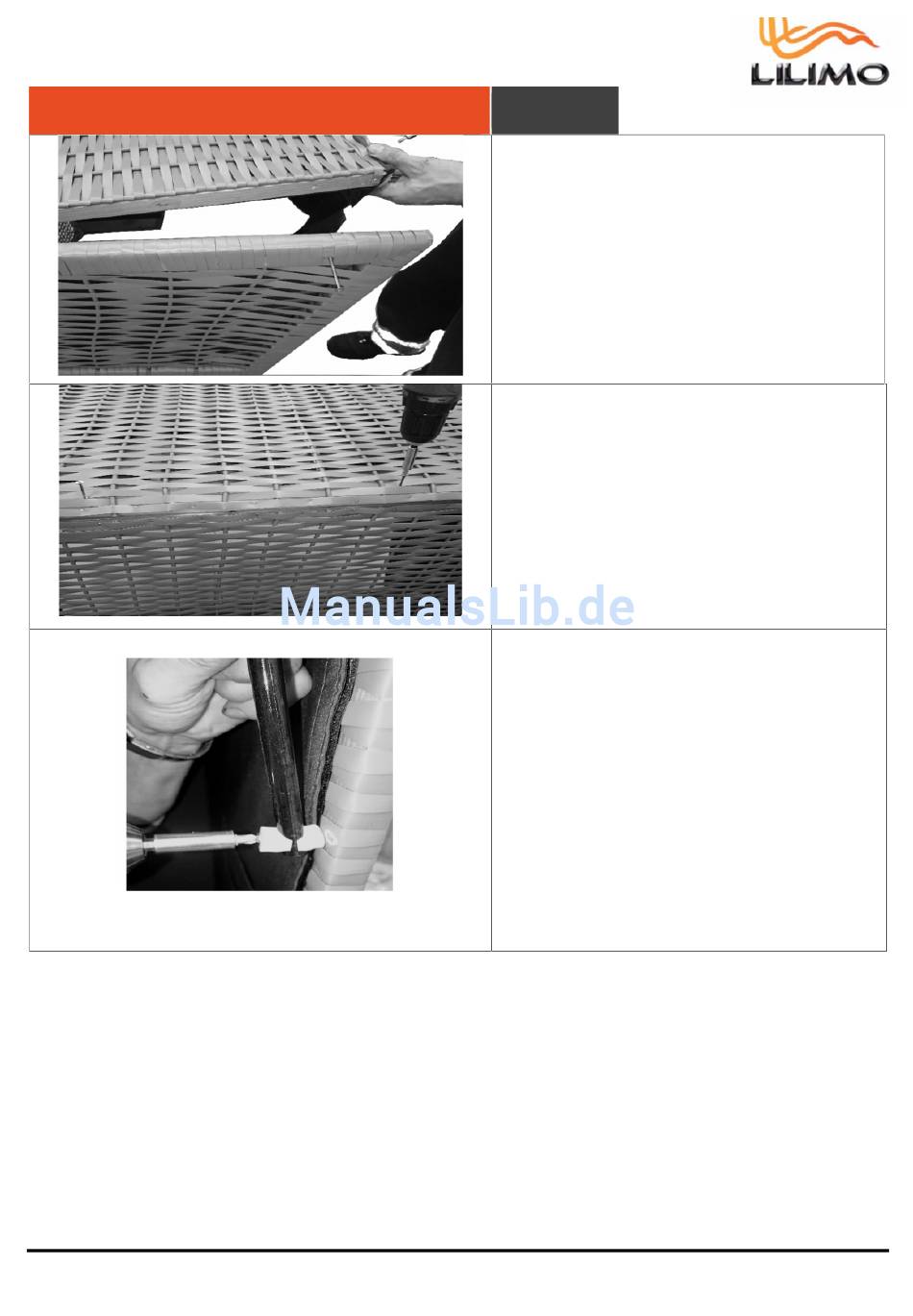

Die Dachplatte (J) wird nun mit jeweils 2 Schrauben vom
Typ S4 an den Seitenteilen (GL&GR) befestigt.
The roof (J) is then fixed with 2 screws of type S4 on the
upper side parts (GL&GR).
Die Dachplatte (J) wird zusätzlich mit 2 Schrauben vom
Typ S4 an der Rückwand (H) fixiert. Die entsprechenden
Stellen sind durch Pfeile markiert.
The roof (J) is additionally fixed by two screws of type S4
on the rear component (H). The corresponding points
are marked by two arrows.
Zur Befestigung der Markise (JA) nutzen Sie bitte jeweils
1 Schrauben vom Typ S4 und die Kunststoffklemmen
(D).
Je eine Klemme um die Markisenstange stecken und die
Schraube an der markierten Stelle von innen in das
Seitenteil schrauben.
To fix the awning (JA) please use each 1 screw of type S4
and the plastic clamps (D).
Please stuck one plastic clamp around the awning rod
and screw the screw at the marked point from the
insinde into the upper side part.
