clage WHT Austauschanleitung Seite 3

Service manual exchange WHT
1 Safety notes Serviceanleitung
Important note: This service manual should be used together with the current version of operating
and installation instructions. It requires qualified technical knowledge and offers support for
the maintenance and repair by an authorised electrician only! Due to the process of continuous
improvement, CLAGE reserves the right to change details mentioned in this manual without notice.
Electronic and electrical components must not get wet at all. If there is any indication that the appliance
came in contact with wetness, it is not allowed to put the appliance into operation. In this case please
contact our after sales service department.

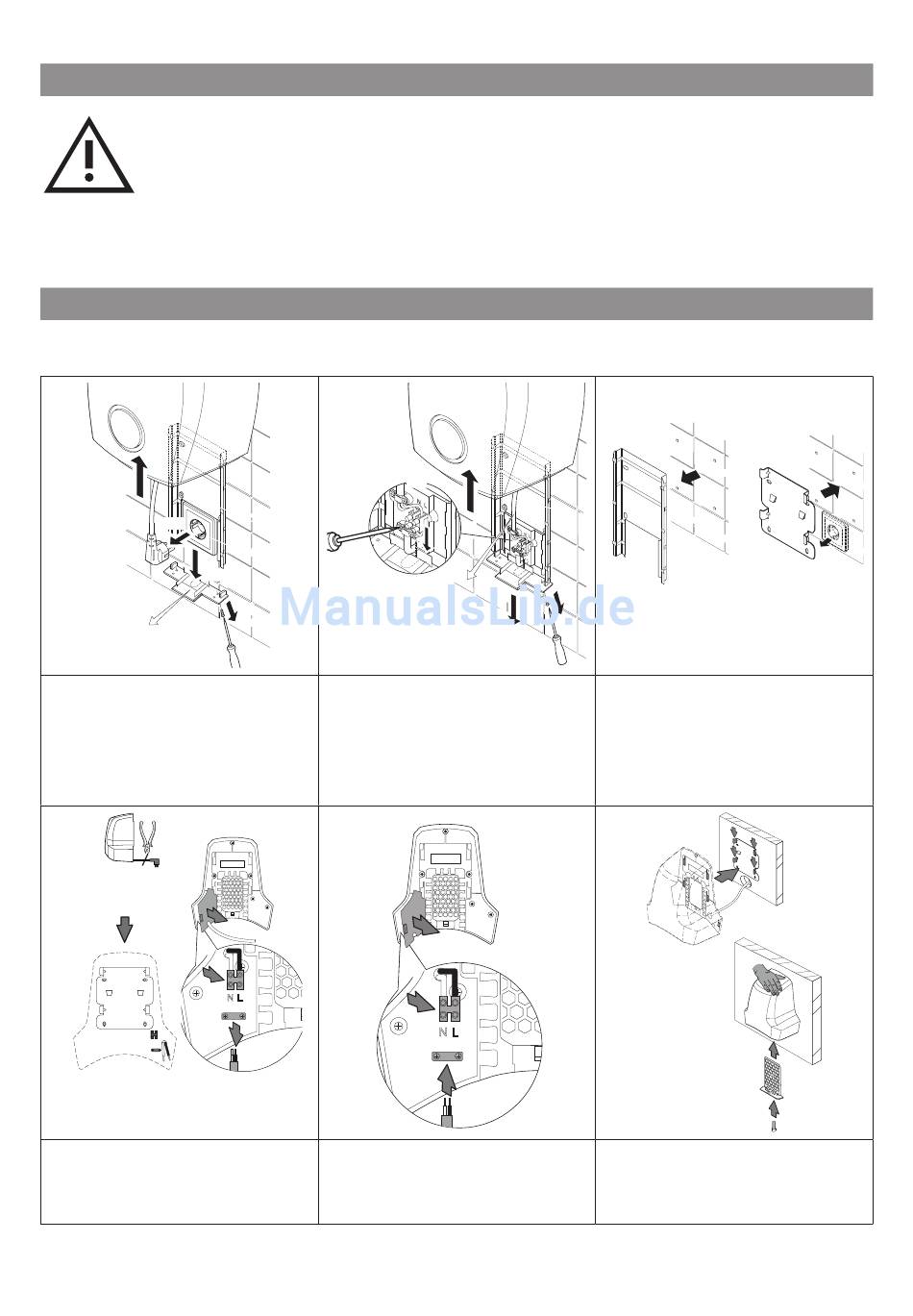

2 Replacement of the WHT
2.1 Disconnect the appliance from the power supply!
III
IV
II
Appliances with flush mounted socket
1. Unscrew and remove the cover plate,
move the appliance upwards, pull the
plug, remove the appliance.
3. Shorten or remove the connecting
cable of the new WHT according to the
installation conditions.
Note: There must be maintained a sensor distance of 35 cm to cabinets and other surfaces under the WHT.
I
Appliances with direct connection
1. Unscrew the screws of the cover plate,
move the appliance upwards, loosen
the cable retention and terminal strip,
remove the appliance, remove the
cover plate.
B
D
C
N L
4. Connect the new WHT by a direct
F
connection according to the operation
instructions. Missing sheath insula-
tion must be replaced
III
II
I
IV
N L
3
2. Remove the old wall bracket, mount
the new wall bracket at the same posi­
tion, remove the flush mounted socket
(if available).
5. Snap on the appliance from above on
the wall bracket and attach the air
intake grille.
5 Nm
